Kobuz from Avios

Details

The Avios Kobuz is a large 2200 mm sport-scale, aerobatic glider inspired by the Polish SZD-21 Kobuz. It features flaps, sleek lines, and excels in both high-speed and slow, controlled flight. With great energy retention and aerobatic agility, it’s ideal for varied flying conditions. The model includes a Swiss-inspired high-visibility color scheme, a large canopy with an instrument panel, and room for FPV gear.

Designed for ease of use, it has clip-on wings with PCB connections, a carbon spar, servo covers, and a fuselage skid plate. The Plug-N-Fly setup includes a 3548–750KV motor, 50A ESC, folding prop, and six metal-geared servos. With minimal assembly and optional crow braking, the Kobuz is a high-performance glider suited for any RC pilot.

Features:

  • An efficient, high glide ratio design with good speed retention
  • Positive clip-on wing system and bolt-on tail
  • Quick and easy connection system for the wing servos
  • High-performance power system
  • Ball link push rods throughout
  • Stunning high viz Swiss color scheme
  • Low parts count for quick and easy assembly

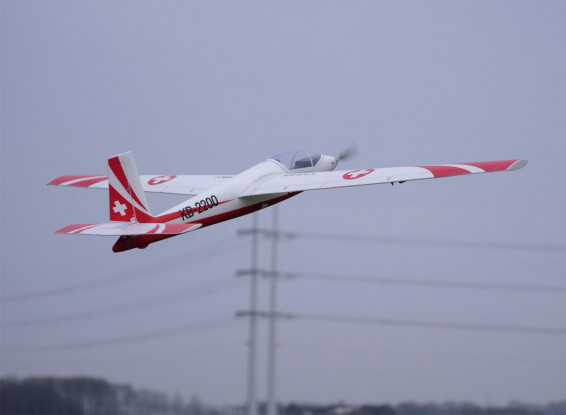

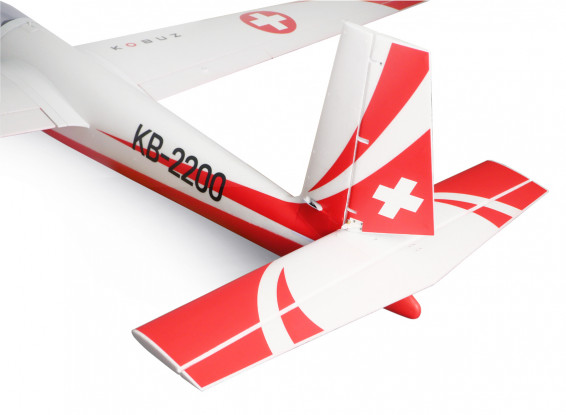

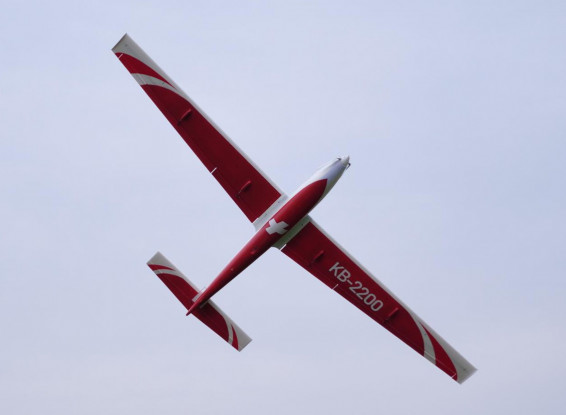

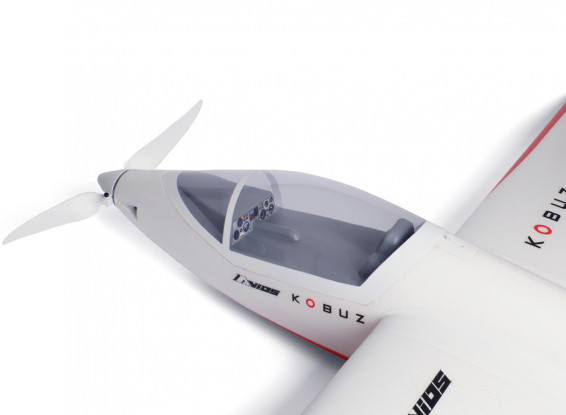

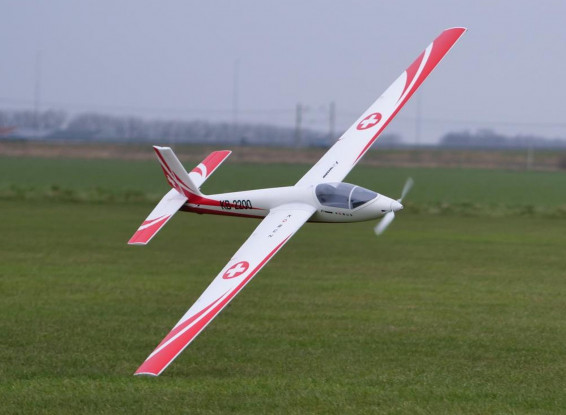

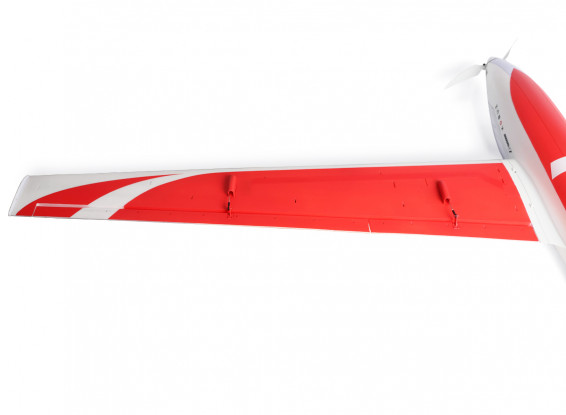

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Kobuz in particular but at least we know they do distribute Avios.

Wingspan: 2200mm (86.6 in)
Length: 1209mm (47.6 in)

Weight: 2100 g (4.6 lbs)
  • Wingspan: 2200mm (87")
  • Length: 1209mm (47")
  • Format: Plug-N-Fly (requires battery and receiver)
  • Motor: 3548-750KV brushless outrunner
  • ESC: Aerostar RVS G2 50A brushless
  • Propeller: 11x8 folding w/spinner
  • Servos: 4 x 13g, 2 x 9g (all metal-geared)
  • Material: EPO foam
  • Color: Red/White Swiss scheme
  • Channels: Ailerons, elevator, rudder, throttle, flaps
  • AUW: 2100g (4.6lb)
  • Battery: 1 x 3000~4000mAh 4S (14.8V) 40~60C LiPo w/XT60
