Pavo Pico II from BETAFPV

Details

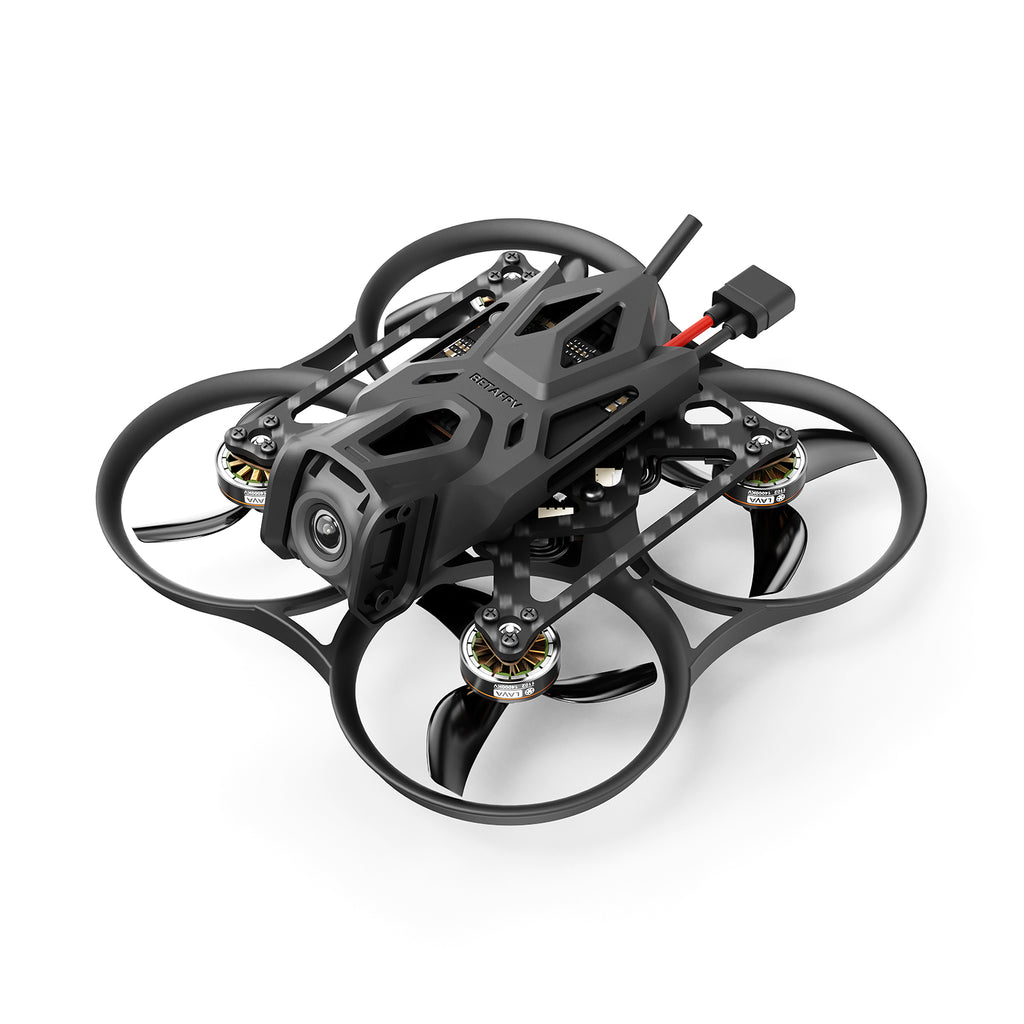

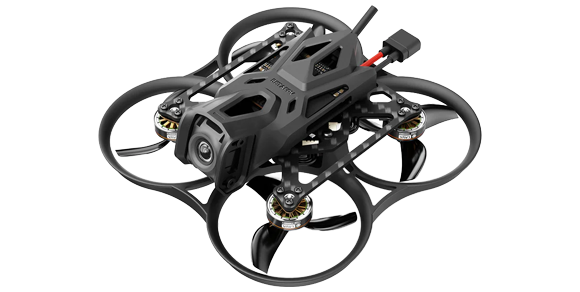

The next-generation Pavo Pico II is the ultimate compact cinewhoop, completely redesigned for the DJI O4 system. It features a new rigid frame with guided mounting for easy assembly, the innovative O4 Bracket II with 4 shock absorbers to eliminate jello, and a new carbon plate that fits both the O4 and O4 Pro air units. Powered by upgraded LAVA 1102 motors for 10% more power and efficiency, all in a lightweight 53.7g design, it delivers stunning, smooth 4K footage wherever you fly. Maximum Performance, Minimal Size.

Features:

  • O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.
  • Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.

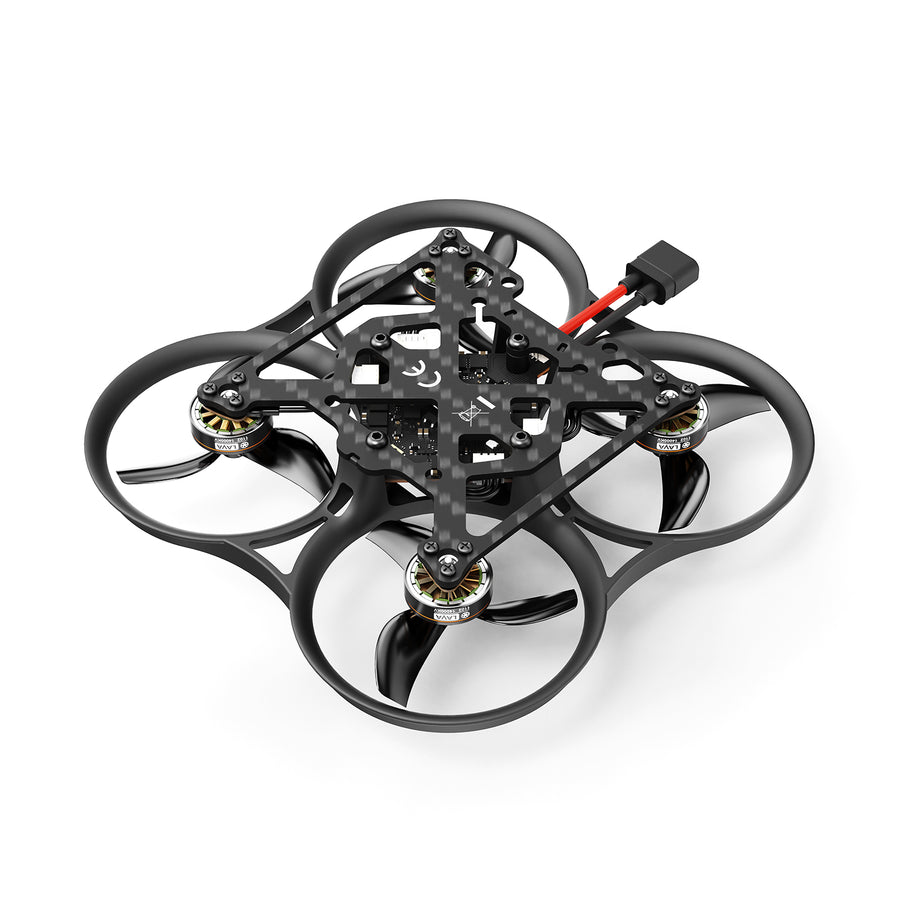

  • O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
  • New Propulsion: The upgraded LAVA 1102 motors and GF 45mm props deliver a remarkable 10% power increase for explosive thrust, while also enabling extended flight times.

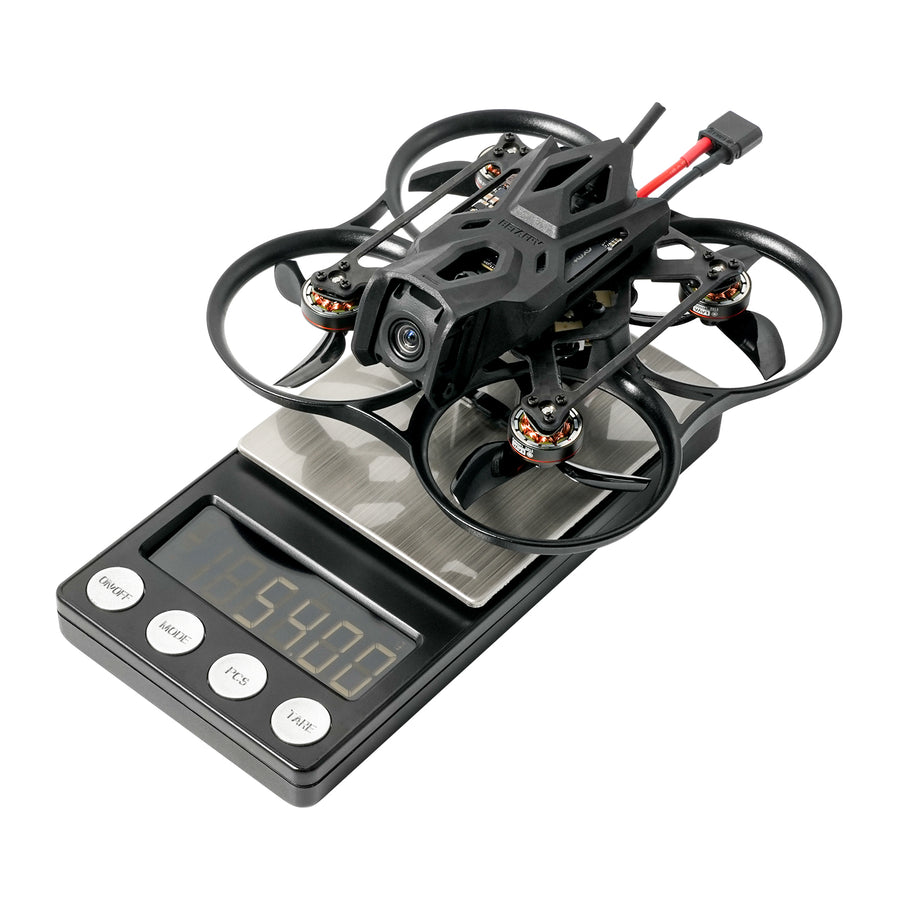

  • Small and Lightweight: At a mere 53.7g with an 80mm wheelbase, this pocket-sized powerhouse combines an ultra-lightweight design with the raw thrust.
  • Advanced Flight Controller: F4 20A AIO FC with dual BECs, supporting 9V 2A for HD VTX and 5V 3A for external devices.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 80mm (3.1 in)
Length: 80mm (3.1 in)

Weight: 39 g (1.4 oz)
  • Wheelbase: 80mm
  • Frame: Pavo Pico II Brushless Whoop Frame
  • Battery: Lava 2S 550mAh, LAVA 2S 450mAh
  • FC:  F4 2-3S 20A AIO FC
  • Props: GF 45mm 3B Prop
  • Motor: LAVA 1102 | 14000kv
  • Battery Connector: XT30
  • Battery Slot: 16*12.7mm
  • Flight Time: 6:30 min (O4 Version with LAVA 2S 550mAh battery)
  • Weight: 39.1g (PNP Version), 53.7g (O4 Version)
  • RX Version: Serial ELRS, DJI SBUS
