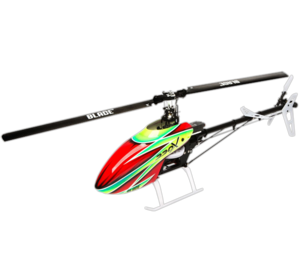

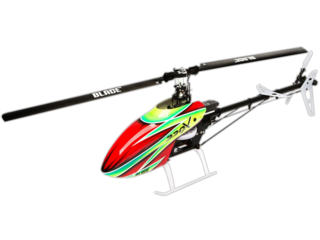

330X from Blade

Details

The Blade® 330X RTF is the all-in-one solution for intermediate helicopter pilots looking to take on thrilling aerobatic maneuvers with a convenient and capable machine. Carbon fiber blades rip through the air and give a clean and rigid flight experience. High performance metal gear digital servos offer crisp, precise response on all flight controls providing locked-in and predictable commands in the air. Add in the included 3S 2200mAh battery and 45A ESC and this heli delivers plenty of punch. Plus, everything you need is included in the box.

Features:

  • Spektrum™ AR636A
  • Flybarless design
  • 325mm Carbon Fiber rotor blades
  • Metal Gear Servos
  • Belt-Driven Tail
  • 440H Brushless Motor
  • 45A ESC with S-BEC
  • Included Flight battery and Charger

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 660mm (26 in)
Length: 650mm (25.6 in)

Weight: 800 g (1.8 lbs)
Approximate Assembly Time: No assembly required
Approximate Flight Time: 4-6 min
Battery: 2200mAh 11.1V 30C LiPo
Canopy/Body Material: Fiberglass
Channels: 6
Completion Level: Ready-To-Fly
Height: 8.8
Main Blade Material: Carbon
Main Frame Material: Plastic
Main Motor Type: Brushless
Main Rotor Diameter: 28.4in
Main Rotor Head Type: Collective Pitch (CCPM) Flybarless
Pinion Size: 10
Skill Level: Level 3
Swashplate Type: 120
Tail Blade Material: Plastic
Tail Drive: Belt
Tail Rotor Blade Length: 2.25
Tail Rotor Diameter: 6.1in
