Infinity 300 from D-POWER Modellbau

Details

After the great success of our INFINITY 250 E glider now comes the somewhat bigger brother INFINITY 300 with almost 50cm more wingspan and new, noble color design.

The INFINITY 300 from D-POWER is like its little brother a fully loadable all-rounder in high quality full GRP construction with pendulum tailplane and functional flaps. Whether aerobatic maneuvers at full throttle or gliding in thermals and on slopes - the flight characteristics of the INFINITY 300 leave nothing to be desired.

High quality construction The electric glider model is manufactured entirely in GRP shell construction. All components are already elaborately painted in the mold and prefabricated for minimal construction effort.

  • Completely manufactured in high-quality GRP shell construction
  • pendulum tailplane
  • modified RG-14 wing profile
  • mold-painted GRP fuselage, tailplane and GRP wings
  • fuselage cabin offers space for 3S or 4S 4000 batteries
  • good visibility thanks to high-contrast block stripes on the underside of the wings
  • CFRP reinforcements in fuselage and wings
  • solid carbon fiber wing joiner
  • short construction time thanks to high degree of prefabrication > ARF+

Ample space for electronics The fuselage of the INFINITY 300 is specially designed for electric propulsion. Thus, the built-in CNC-milled battery board offers enough space for large batteries and the required electronics. The resin-molded GRP motor bulkhead also provides space for 42 inboard or outboard motors.

ARF+ means an extremely high degree of prefabrication We have deliberately decided not to offer you this model with its own motors and servos. Because with the ARF+ equipment you have the possibility to equip your electric glider according to your preferences. All cable layers are completely routed, so you only have to connect your electronic components to the ready-made cable harness and plug the cables in the fuselage into the receiver. Spend minimal time in the tinkering basement - and maximum time on the flying field.

  • Cable harness ready installed and integrated
  • MULTIlock® wing locking system installed
  • MPX high-current connectors installed in fuselage and wing panels
  • laser-cut battery board ready installed in the fuselage
  • servo frames installed
  • resin-installed GRP motor bulkhead
  • Pre-turned linkages, all linkages ready installed
  • rudder horns already installed
  • richly illustrated, German-language building instructions

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

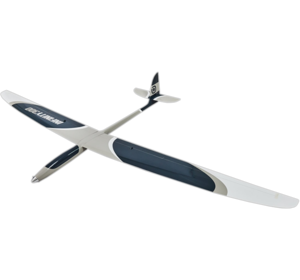

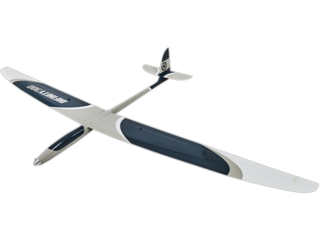

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Infinity 300 in particular but at least we know they do distribute D-POWER Modellbau.

Where to buy

Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
Germany
MG Modellbau
check web site
Ship to: Europe
Germany
Höllein
check web site
Ship to: Europe
Austria
DMT
check web site
Ship to: Europe
Switzerland
ModellMarkt24
check web site
Ship to: Europe
Belgium
Aerobertics
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
Germany
Voltmaster
check web site
Ship to: Europe

Wingspan: 2990mm (117.7 in)
Length: 1560mm (61.4 in)

Weight: 2700 g (6 lbs)
  • wingspan: 2990 mm
  • Length: 1560 mm
  • Wing profile: RG-14 mod.
  • Wing area: 57,1 dm²
  • Flight weight approx.: 2700g (without battery)

Required accessories

  • Motor: D-Power AL42-07
  • ESC: D-Power Comet 60A
  • Battery: 3-4S LiPo 3700mAh
  • Propeller: 13x6,5" @ 4S / 15x8" @ 3S
  • Servos rudder: 1x D-Power DS-340BBMG
  • Servos elevator: 1x D-Power DS-340BBMG
  • Servos aileron: 2x D-Power DS-840BBMG
  • Servos flaps: 2x D-Power DS-840BBMG
  • Remote control system: at least 8-channels

Variants

DPIFT300X
Infinity 300 (White Grey Navy)
