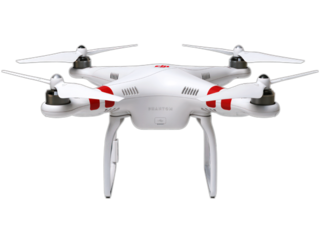

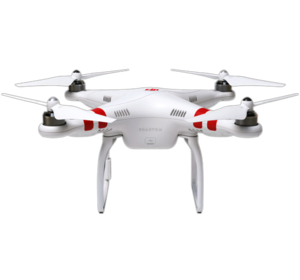

Phantom 2 from DJI

Details

Rise above the clouds and experience a new horizon of possibilities. The Phantom 2 Vision drone allows you to capture the world around you and share these moments like never before. The ready to fly Phantom 2 Vision features the industries first integrated mobile phone FPV system that displays real-time telemetry data and flight parameters, with a Wi-Fi wireless connection up to 300m. Real time live-view on your mobile device allows you to take photos and videos from a completely new perspective, taking your photography to the next level. Plus, you can share your photos and videos with all your social media connections directly from your mobile device!

Keep in mind, the Phantom 2 Vision is not an entry level setup. The integrated camera delivers 14mp still images, and 1080/30p or 1080/60i HD video, with a 140° wide angle field of view and f/2.8 aperture! The camera features adjustable ISO settings, exposure compensation, white balance, RAW/JPEG format and more, and all of these adjustments can be made in flight, directly from the mobile device! Want more? The built in gimbal features an on board tilt control that can also be controlled from the mobile device! This is all packed into a lightweight, easy to carry package that delivers incredible 25 minute flight times. When you combine these features with the safety and quality GPS components that have made DJI a leader in the industry, the DJI Phantom 2 Vision is the obvious choice when you want a simpler, stronger and smarter platform that will provide an unmatched aerial photography experience.

Features

  • Ready to Fly, Multifunctional Quad-rotor System
  • Customized H3-2D and H3-3D Gimbal Support
  • Precision Flight and Stable Hovering
  • 25min Flight Time & Smart Battery
  • Auto Return-to-Home & Landing
  • Advanced Power Management
  • Intelligent Orientation Control (IOC)
  • Easy Battery Replacement
  • Self-tightening Propeller
  • Video Downlink Support
  • CAN-Bus Expansion Module

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: unknown
Length: unknown

Weight: 1160 g (2.6 lbs)
  • Aircraft:
    • Battery: 5200mAh Lipo
    • Flight Load Bearing: 1160g
    • Hovering Accuracy (GPS Mode): Vertical: 0.8m; Horizontal: 2.5m
    • Max Yaw Angular Velocity: 200°/s
    • Max Tilt Angle: 35°
    • Max Ascent / Descent Speed: 6m/s
    • Max Flying Speed: 10m/s
    • Diagonal Wheelbase: 350mm
    • Tilting Range of Gimbal: 0°-60°
  • Transmitter:
    • Operating Frequency: 5.8 GHz ISM
    • Communication Distance (open area): CE: 300m; FCC: 500m
    • Receiving Sensitivity (1%PER): -93dBm
    • Transmitting Power: CE: 25mw; FCC: 125mw
    • Working Current/Voltage: 80 mA@6V
    • Battery: 4 AA Batteries
  • Camera:
    • Resolution: 14 Megapixels
    • FOV: 140 °/ 120° / 90°
    • Sensor size: 1/2.3
  • Functions:
    • Support of multi-capture, continuous capture and timed capture
    • Support of HD Recording (1080p30/1080i60)
    • Supports of both RAW and JPEG picture format
