Ugly Stick V2 from Durafly

Details

The Ugly Stick design has been a popular nitro sports model for almost half a century and this iconic airframe is known throughout the RC world for its exceptional flight characteristics and charming yet simple lines


With the Durafly™ Ugly Stick, you too can experience what made this design a classic, 20~30 years ago it would have taken months to build an Ugly Stick from balsa but not now. Then it would take hours of voodoo magic to make the motor run for an oily and noisy 10 minutes. Not anymore! The Durafly™ Ugly Stick can be flying in a fraction of the time with minimal building, no tuning, no cleaning!


The Ugly Stick V2 comes with all electronics pre-installed, all major components assembled for you and a full compliment of tools and accessories are included. No glue is provided, as none is needed! The Ugly Stick V2 bolts and screws together in just a few easy steps, multiple access hatches also allow for easy access to all internal electronics.


The V1 was designed and built around the popular 2200mAh 3S lipo battery, the V2 has slightly more room in the battery compartment and does require extra noseweight so we recommend a Graphene Panther 3000mah 3S or similar pack (even then it may require some additional ballast in the nose). The V2 also is supplied with an upgraded powerful 3536 900kv electric motor, Durafly™ 30amp programmable speed controller and 4 good quality 9g servos. The V2 also sports a new hi-viz blue color scheme that looks stunning on the ground and in the air.


The Durafly™ Ugly Stick V2 not only looks as good as the original but flies just as well too, perfectly capturing those excellent flight qualities of which the Ugly Stick was renown. Being the well mannered sports model it is, the Ugly Stick is suitable for both novice and experienced flyers alike. At the lower end of the speed range it exhibits no bad stall tendencies and can be flown comfortably at half throttle if desired. However, when you wish to experience its true flying capabilities, open the throttle wide and the Ugly Stick will oblige, performing a full range of sport aerobatic manoeuvres with the ease that made the original so popular. Due to the low current draw of the Ugly Stick V2 power system you can also enjoy longer than average flying times with mixed power use.

Features:

  • High level of prefabrication, requires only minutes to assemble
  • Broad flight envelope, good for beginner and sports flyers alike
  • Beautifully finish scheme out of the box
  • Plug and Fly format, simply add your own radio system and battery
  • Easy and direct access to battery and radio compartment
  • Full 4 channel control: Elevator, rudder, throttle and aileron
  • Version 2 is lighter, has more power and a stunning blue color scheme

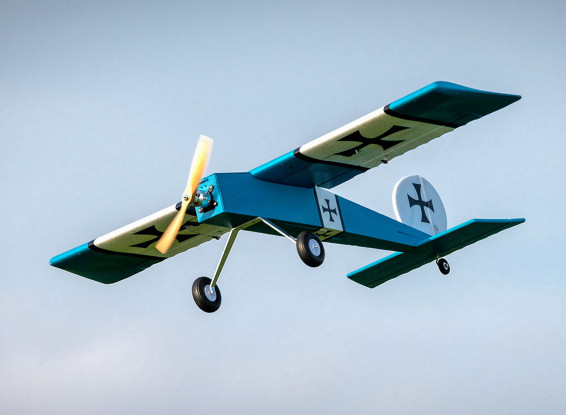

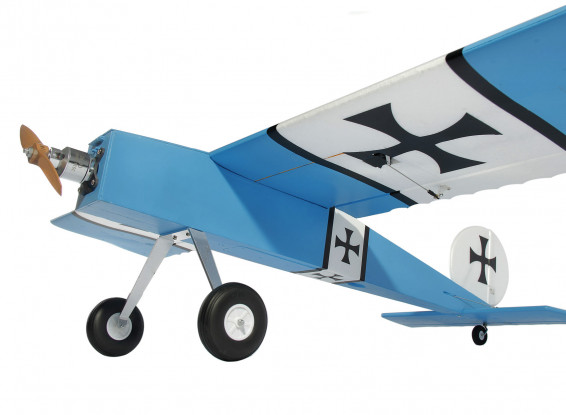

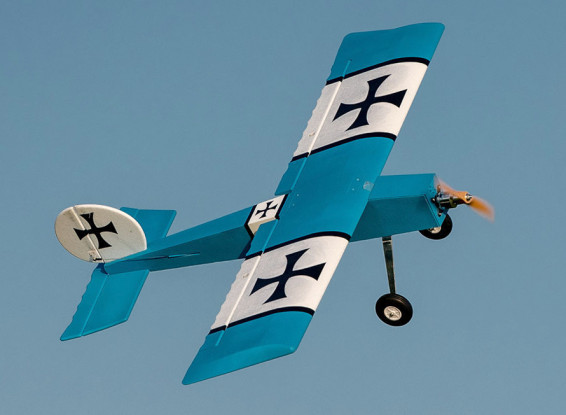

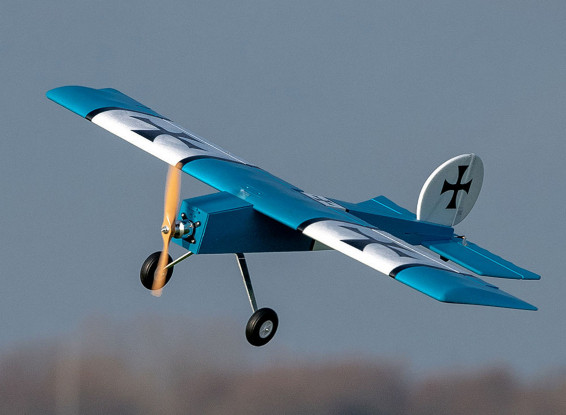

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Ugly Stick V2 in particular but at least we know they do distribute Durafly.

Wingspan: 1100mm (43.3 in)
Length: 950mm (37.4 in)

Weight: 1050 g (2.3 lbs)

Wingspan: 1100mm
Length: 950mm
Flying weight: 1050g
Motor: 3536 900kv Brushless Outrunner
Prop: Wooden 10x6
Servos: 4 x 9g
ESC: Durafly Programmable 30amp with XT60 plug
