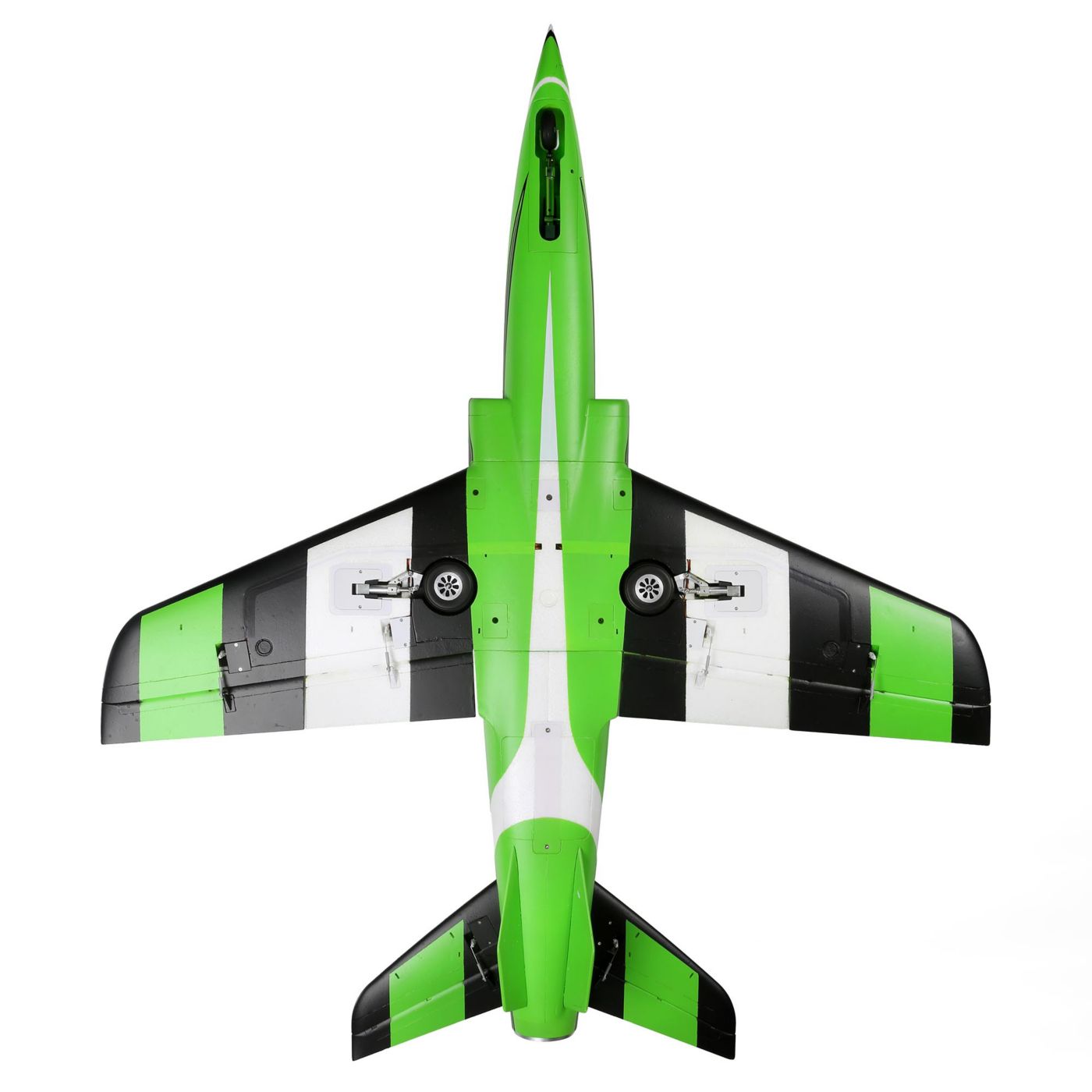

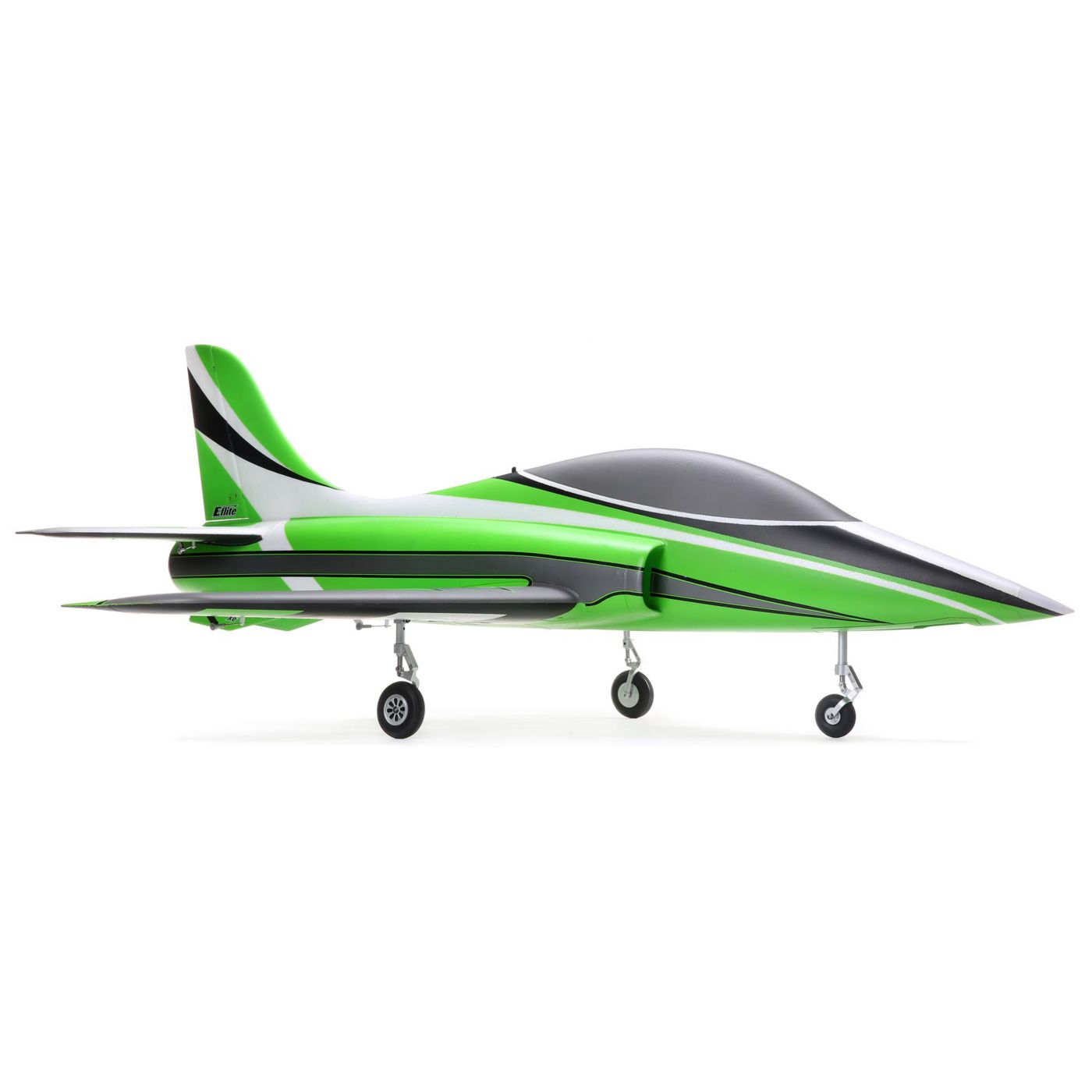

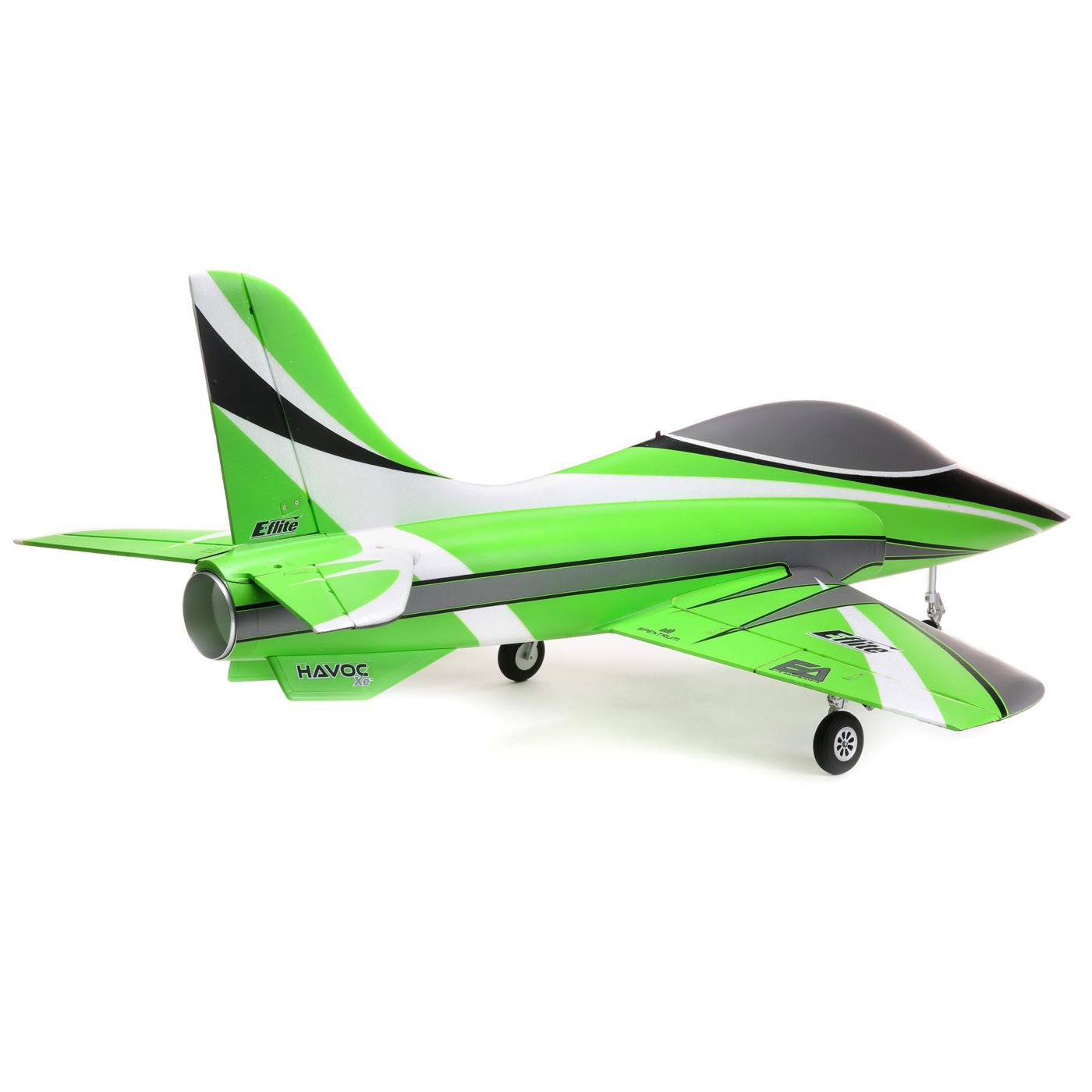

HAVOC Xe from E-flite

Details

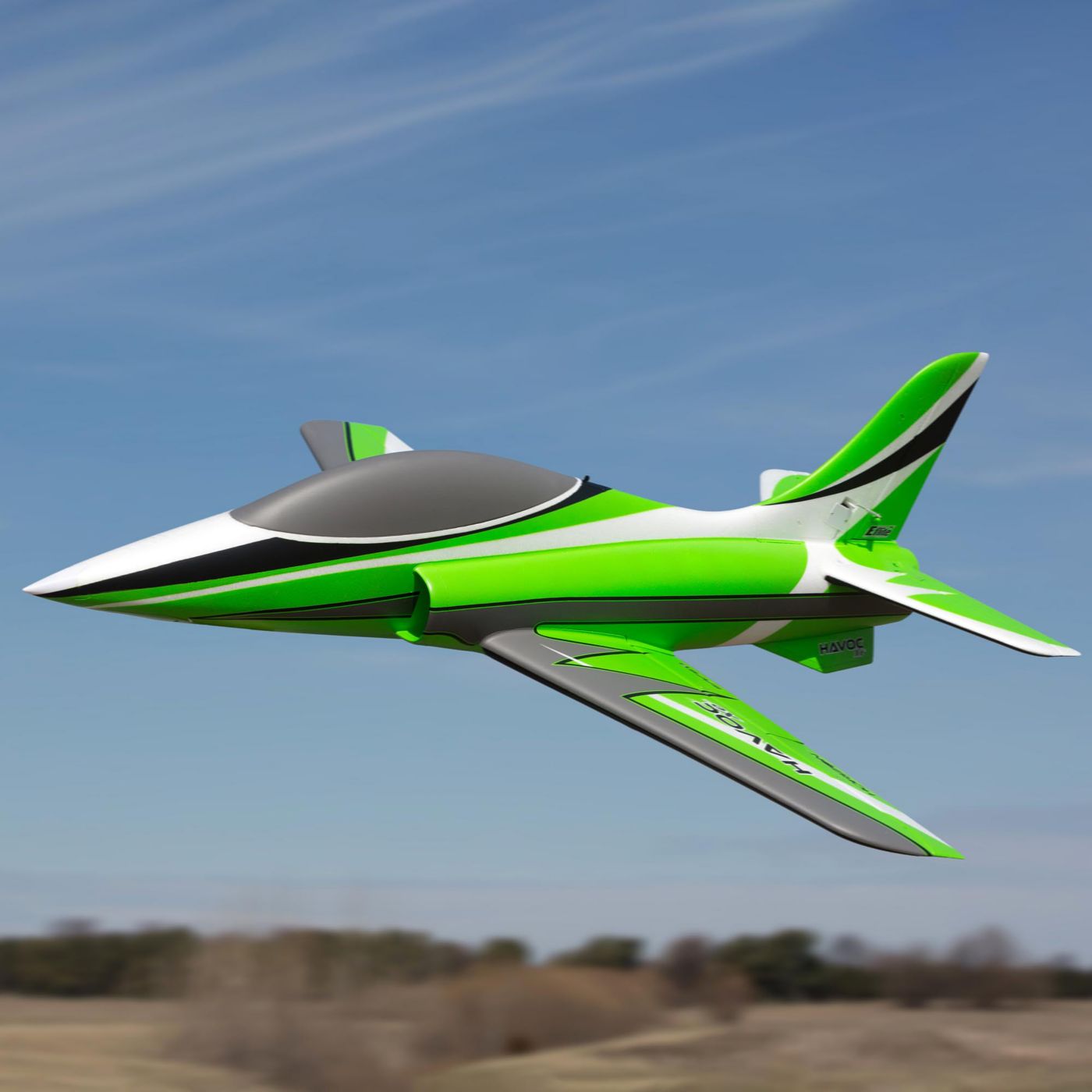

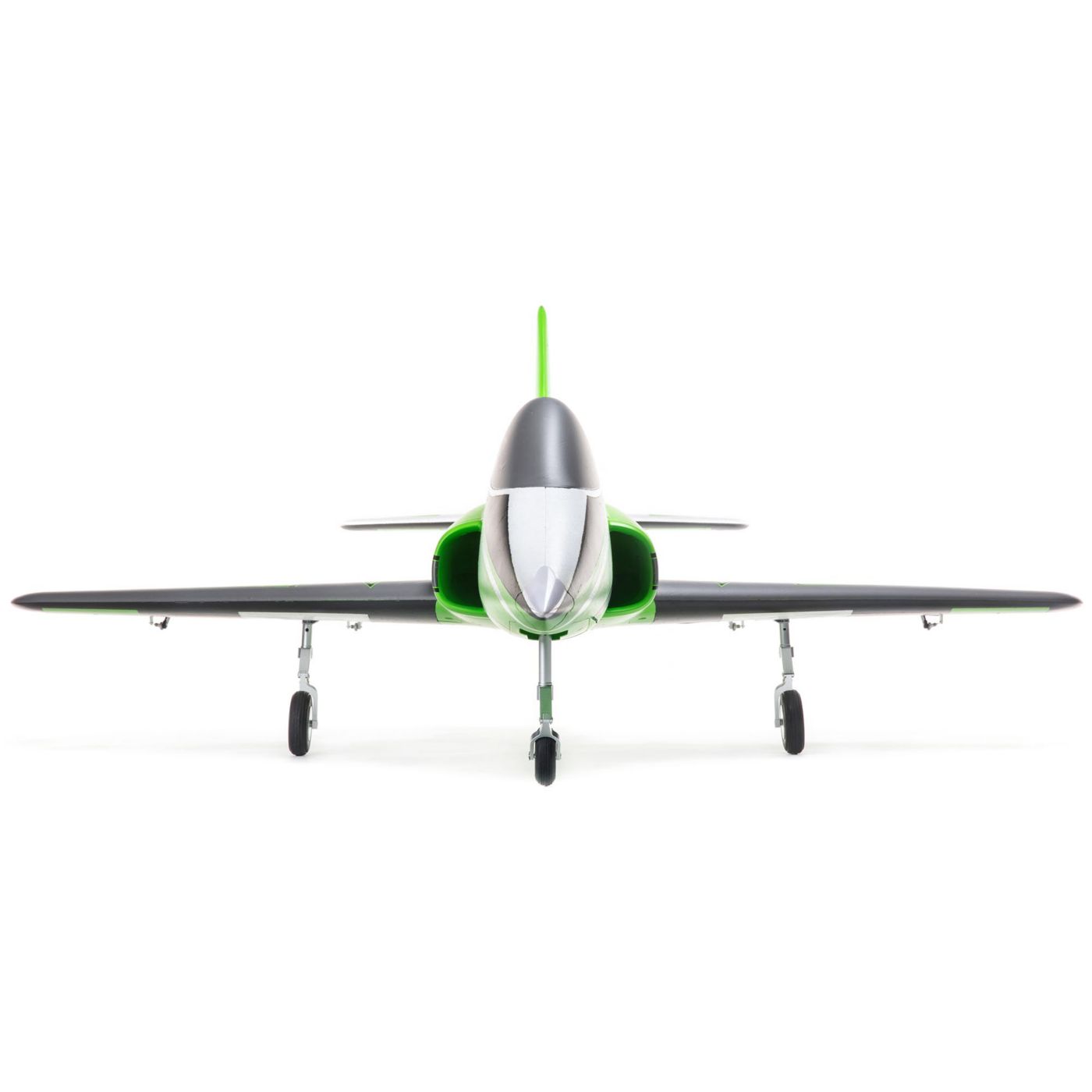

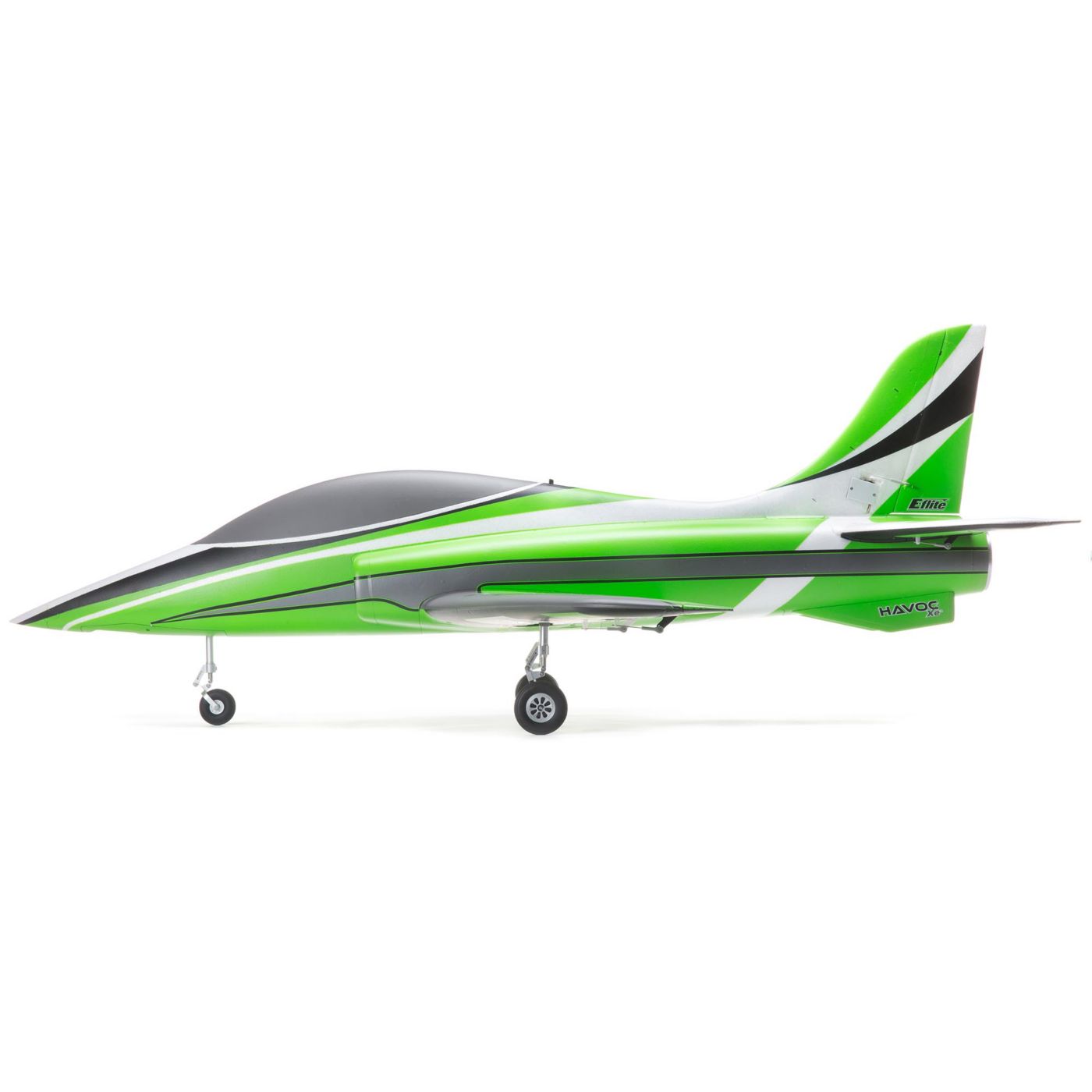

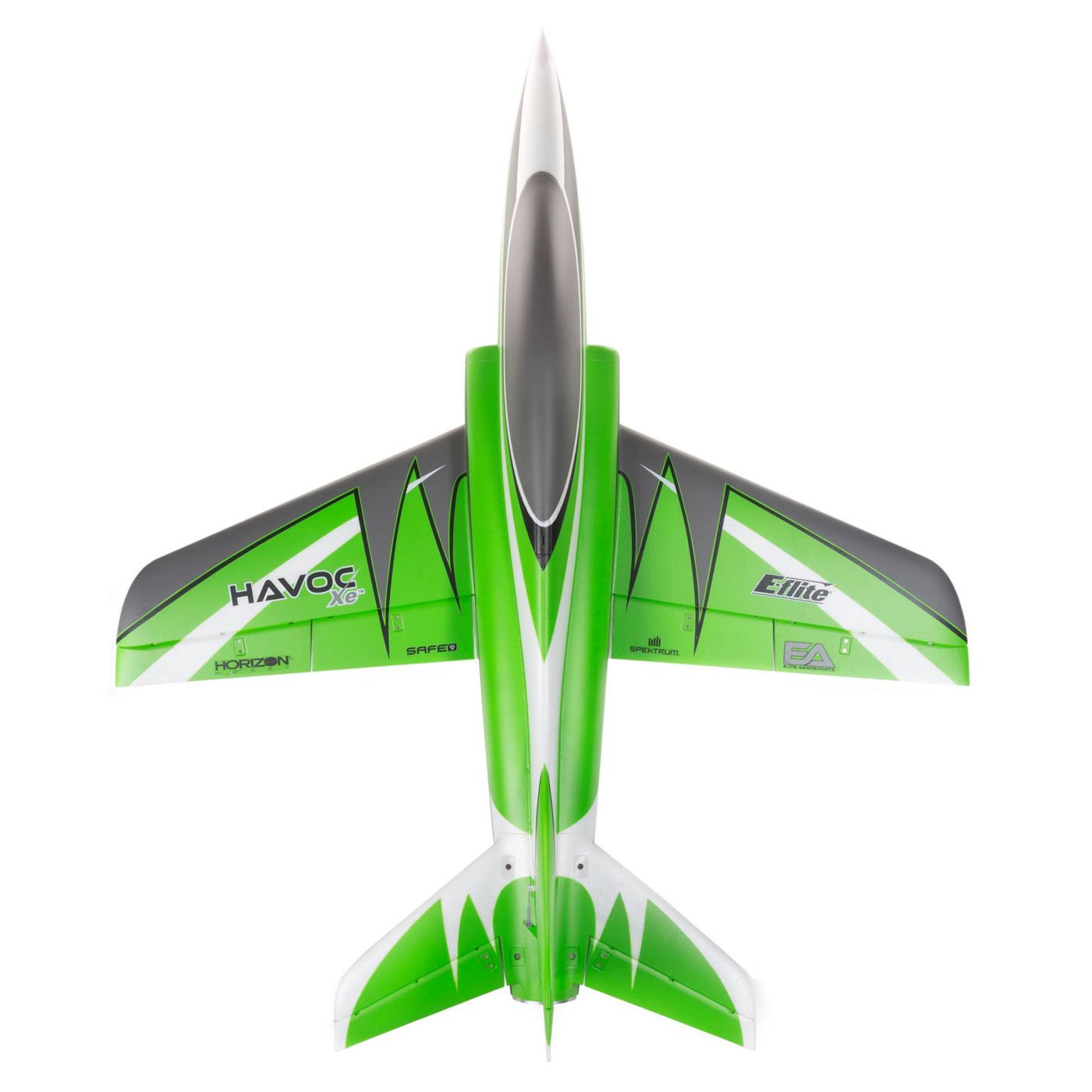

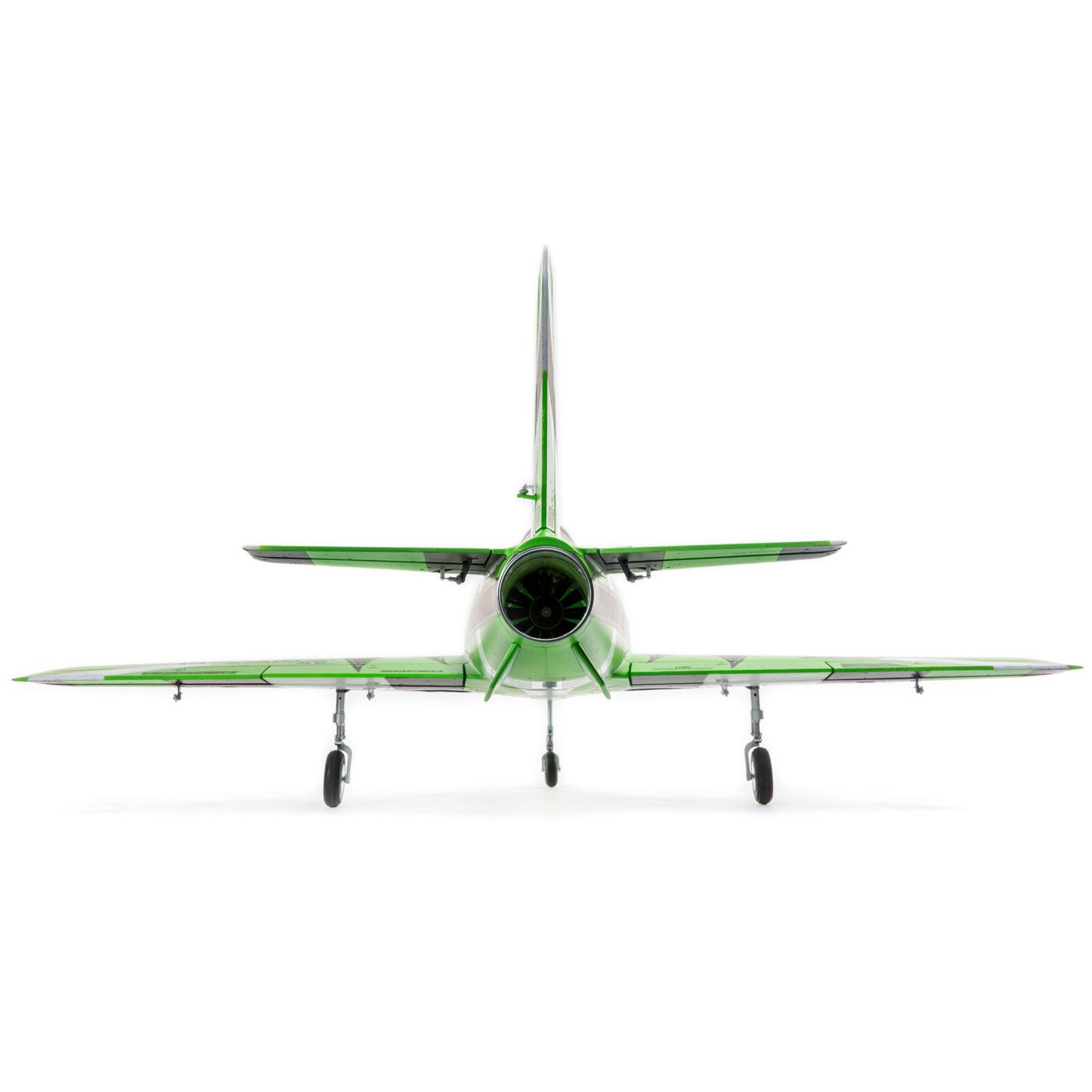

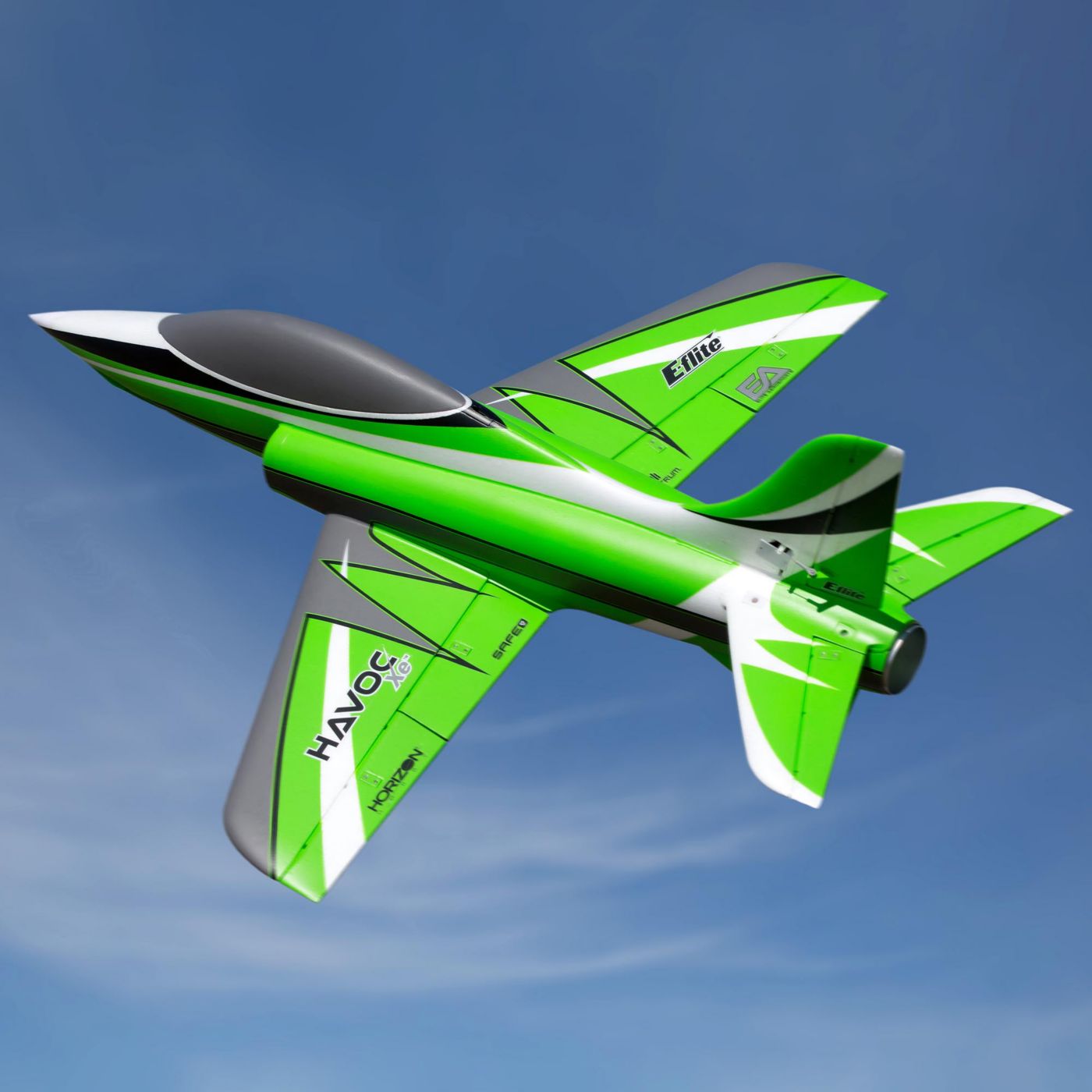

The E-flite® HAVOC Xe 80mm EDF has an extremely wide flight envelope that combines with incredible performance and aerobatic capability to make it an excellent choice for experienced and first-time jet pilots alike. At its core is a 6S compatible brushless motor and 100-amp ESC that are matched to a 12-blade fan that works with the expertly engineered and optimized ducting to deliver an abundance of speed, thrust and a turbine-like sound – without the need for "cheater" holes. It's capable of top speeds up to 140+ MPH and has nearly unlimited vertical performance, plus it can fit batteries from 4000mAh to 8000mAh to deliver unmatched flight times up to an amazing 10-12+ minutes (with corresponding throttle management)!

Reliable electric retracts with shock-absorbing, trailing-link struts on the nose and main gear make it possible to easily fly from grass and other surfaces. The large flaps can travel both ways and can be mixed to offer full-span aileron control (with 7+ channel receivers/transmitters) that delivers the fastest roll rate ever seen in a jet. The eight metal-geared servos with ball-link equipped linkages are factory-installed and provide precise control, and the fully-molded EPO airframe is lightweight yet durable. Best of all no glue is required for assembly, and the factory-finished one-piece wing, one-piece stab and fuselage bolt together with just nine screws so final assembly takes almost no time.

Features:

  • An officially-licensed, scaled-down version of the ultimate sport jet — the Elite Aerosports HAVOC X
  • One of the highest-performance and best-handling EDF (Electric Ducted Fan) sport jets EVER
  • An excellent choice for a larger first EDF jet model because it's easy to take off, fly and land
  • Extremely wide performance envelope and speed range, with top speeds up to 140+ MPH
  • The fastest "rolling" jet ever when using "mixed" ailerons and flaps as full-span ailerons
  • Factory-installed, high-power 6S-compatible brushless inrunner motor and 100-amp ESC
  • 12-blade 80mm fan delivers excellent top speed and nearly unlimited vertical performance
  • Expertly engineered and optimized ducting for incredibly efficient performance without "cheater" holes
  • Fits a wide range of 6S batteries from 4000–8000mAh to deliver flight times up to an amazing 10-12+ minutes

Pictures

Manual

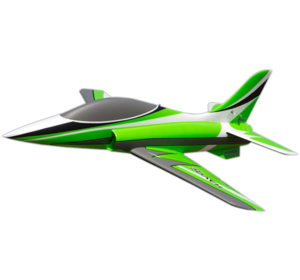

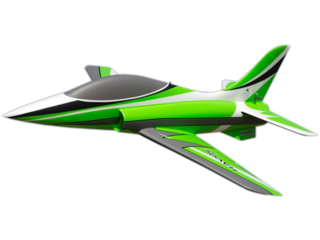

Radio icons

(Click on the icon you want to download)
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the HAVOC Xe in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
Switzerland
ModellMarkt24
check web site
Ship to: Europe

Wingspan: 1041mm (41 in)
Length: 1250mm (49.2 in)

Weight: 3057 g (6.7 lbs)
Airfoil Shape: Fully symmetrical
Approximate Assembly Time: Less than 1 Hour
CG (Center of Gravity): 3.9 - 4.9" (100 - 125mm) from leading edge of wing measured at fuselage
Charger: Compatible with selected battery (sold separately)
Completion Level: Bind-N-Fly Basic
Control Throw (Flaps): 0.67" (17mm) take off, 1.2" (30mm) landing w/2.0 sec speed
Control Throw - High (Ailerons): Up/down 0.59" (15mm)
Control Throw - High (Elevator): Up/down 0.59" (15mm)
Control Throw - High (Rudder): Left/right 1.1" (28mm)
Control Throw - Low (Ailerons): Up/down 0.39" (10mm)
Control Throw - Low (Elevator): Up 0.43" (11mm), down 0.39" (10mm)
Control Throw - Low (Rudder): Left/right 0.79" (20mm)
Expo (Ailerons): Low rate 10%, high rate 18%
Expo (Elevator): Low rate 6%, high rate 12%
Expo (Rudder): Low rate 5%, high rate 10%
Fan Size: 3.1" (80mm)
Landing Gear: Retractable Tricycle Gear with Steerable Nose Wheel
Minimum Required Radio: 6-channel full range
Minimum Speed Control: 100A w/8A BEC
Motor Size: 3270-2000Kv
Recommended Motor Battery: 6S LiPo 4000 - 8000mAh (sold separately)
Servos: 13g analog metal gear
Transmitter Range: Full
Wing Area: 366 sq in (23.6 sq dm)

Variants

EFL7575
HAVOC Xe (Green)
