FlyLens 85 from FlyWoo

Details

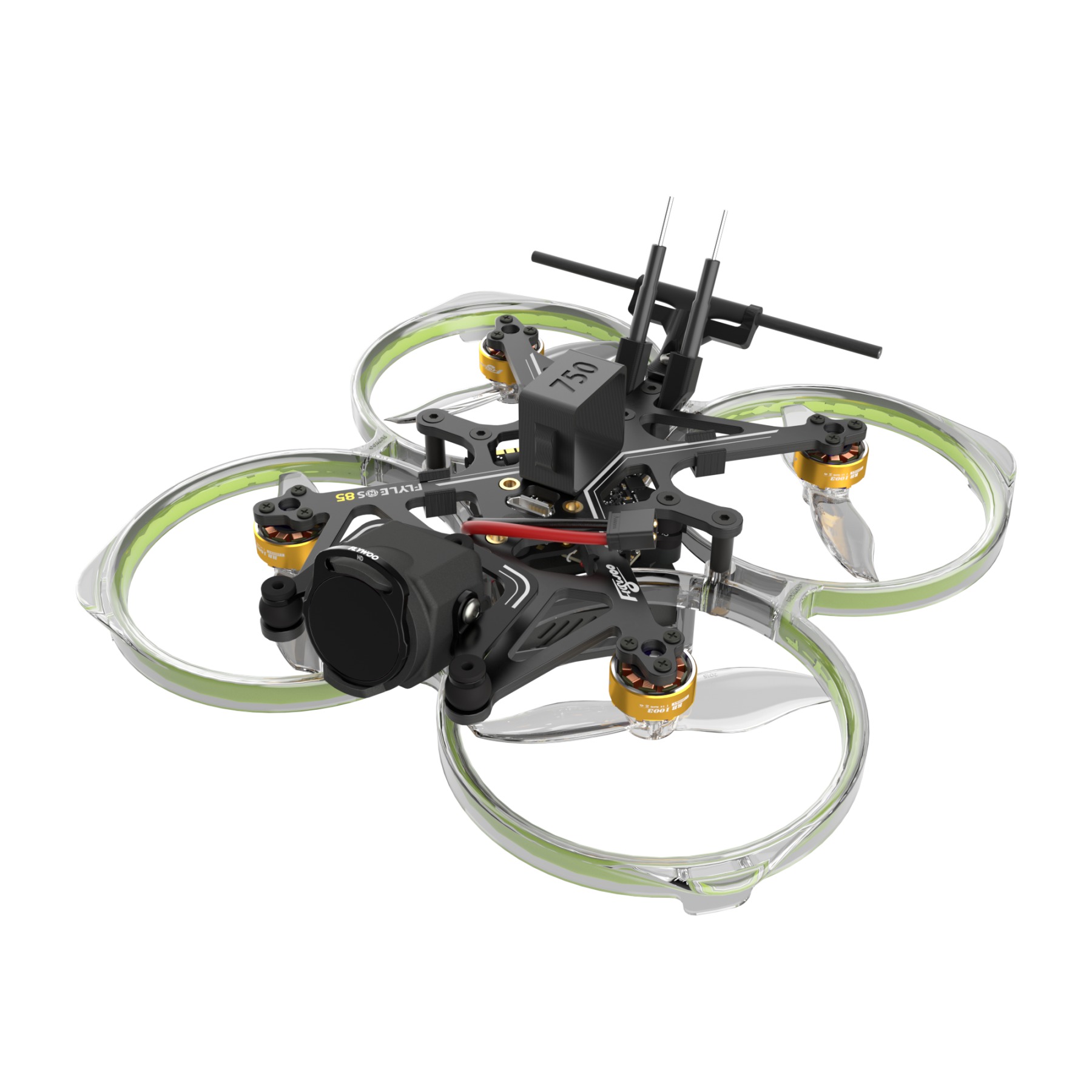

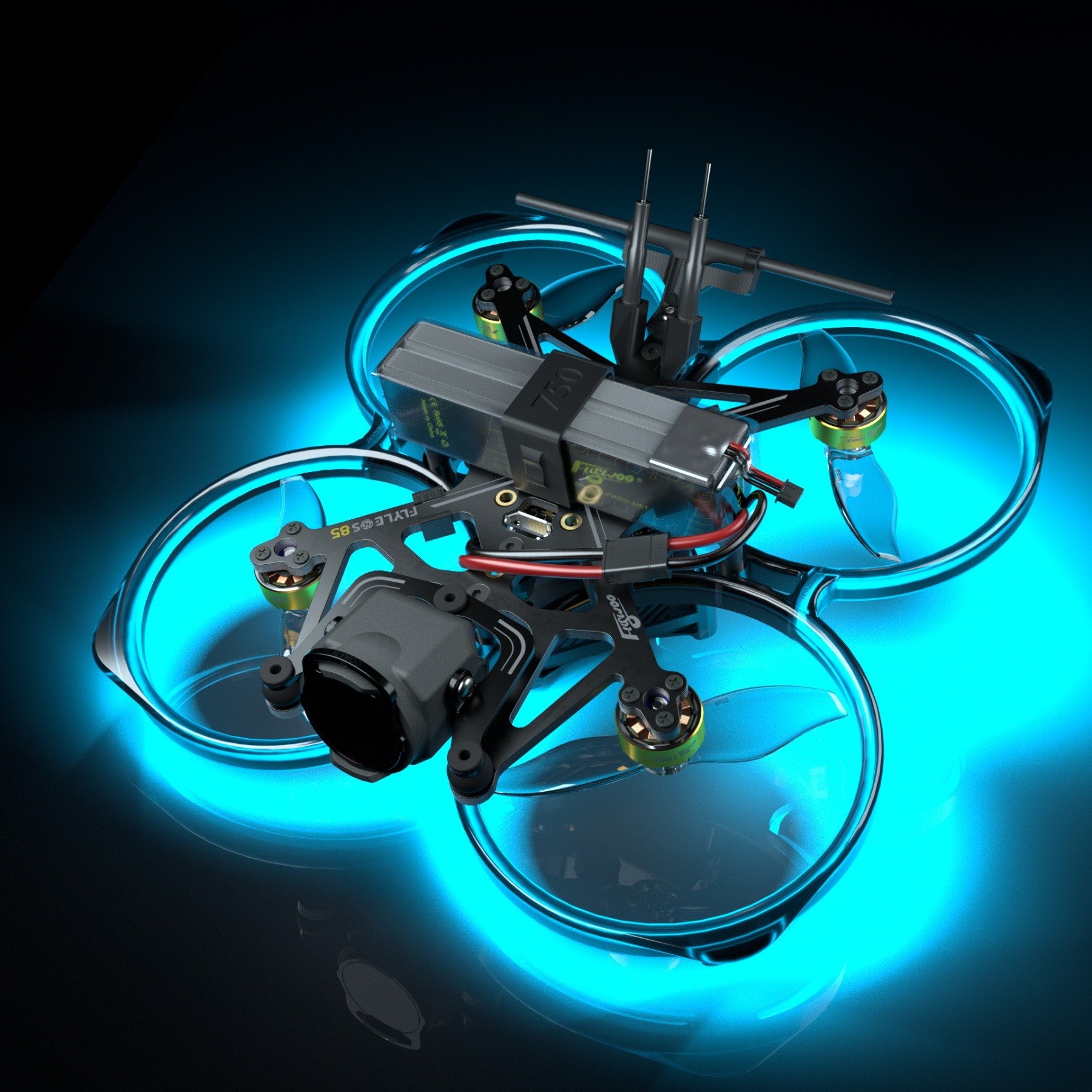

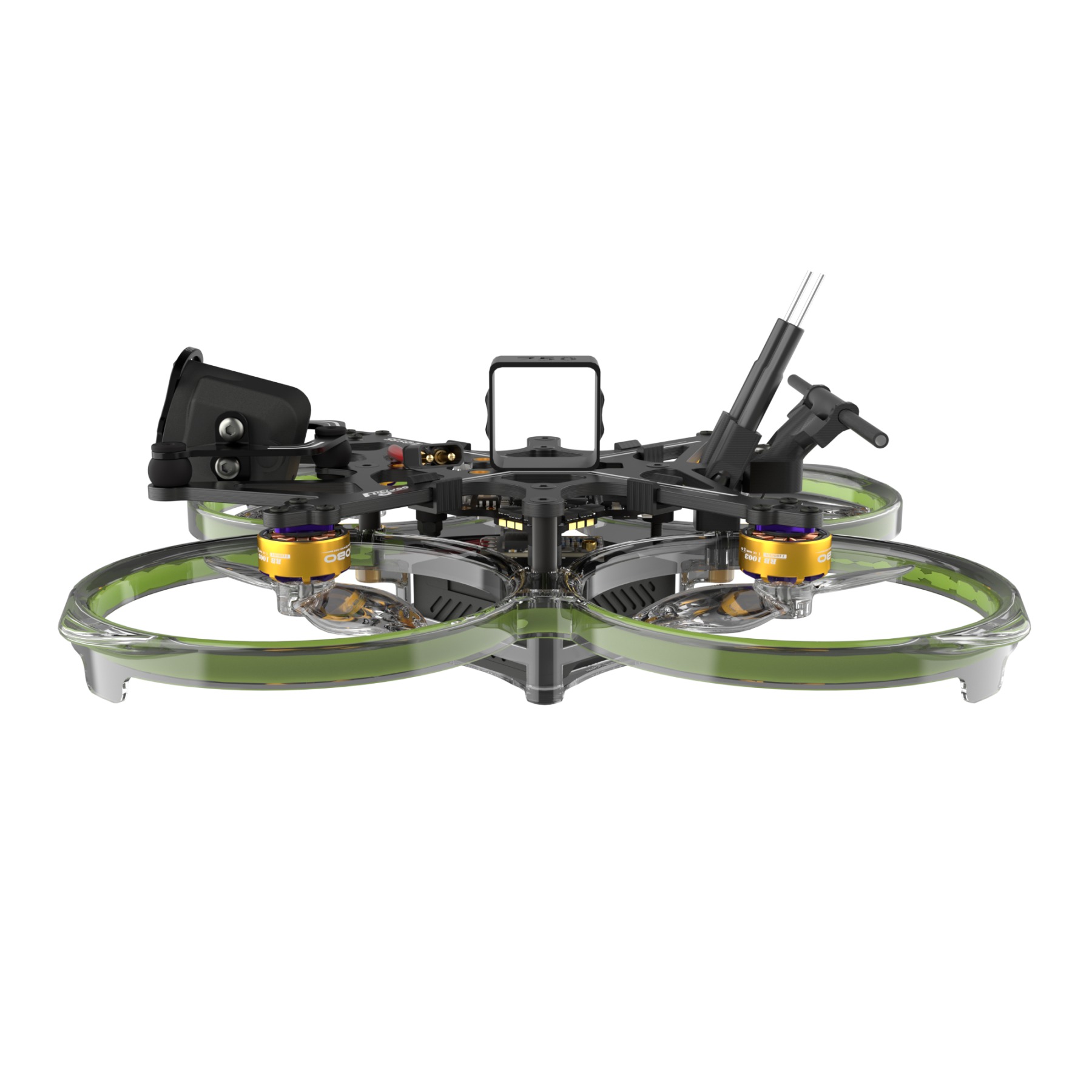

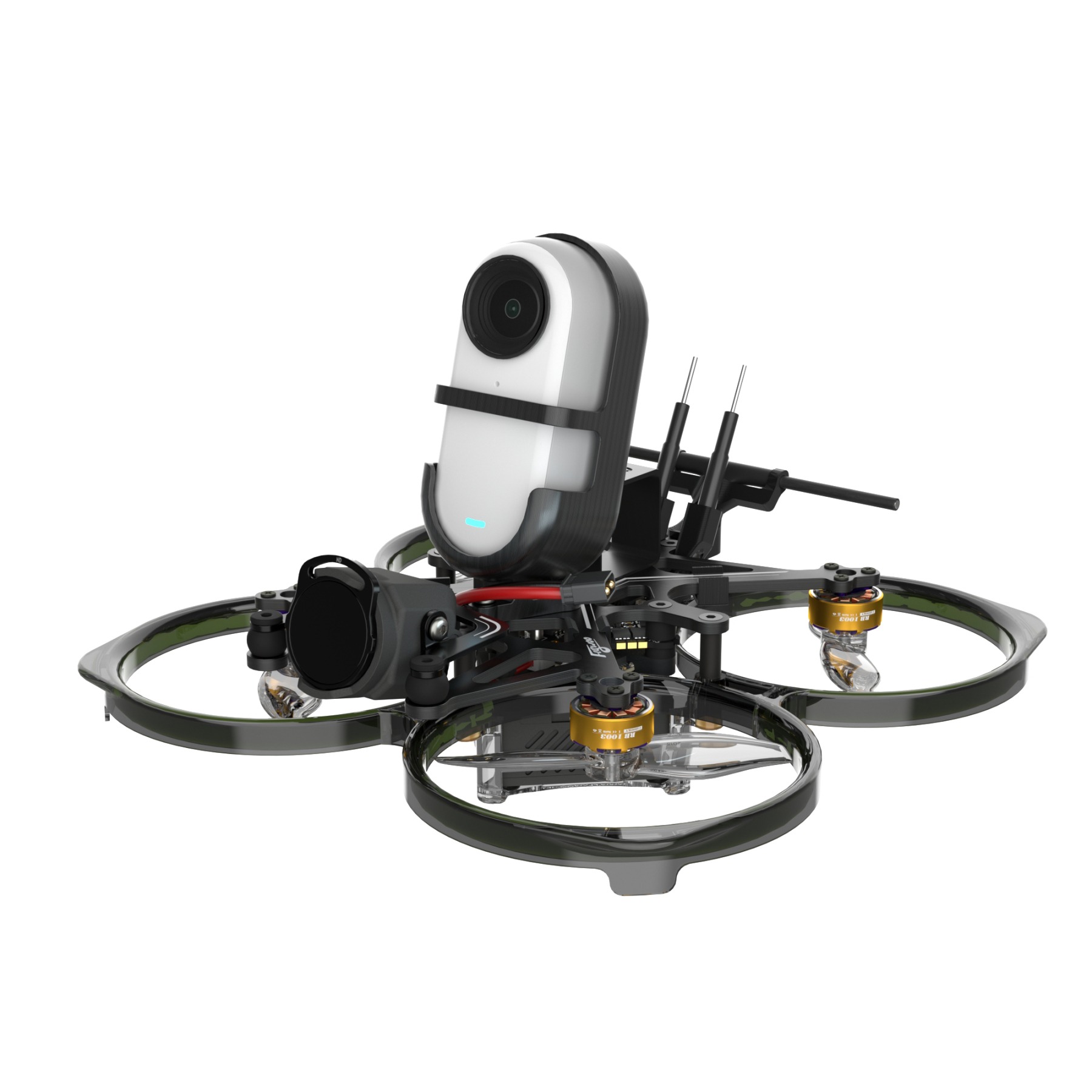

FLYLENS 85 brushless whoop is an innovative small drone carefully crafted by the FLYWOO team that meets international regulations.

It adopts the latest O3 digital transmission system and is available in an optional O3 LITE version, making it the lightest O3 2-inch drone on the market.   In addition to the O3 and O3 Lite versions, the FlyLens 85 offers strong adaptability with options like Walksnail, HDZero, and Analog. This ensures that it meets the needs of all pilots.

The carbon fiber frame has undergone a special carbon black treatment process. The reverse push propeller structure increases power, reduces noise, and allows for easy adjustment of the battery's center of gravity position.

The drone is lightweight and is equipped with a 2S battery, 1003 motor, and 2-inch propeller, providing sufficient power and longer actual endurance.

Features:

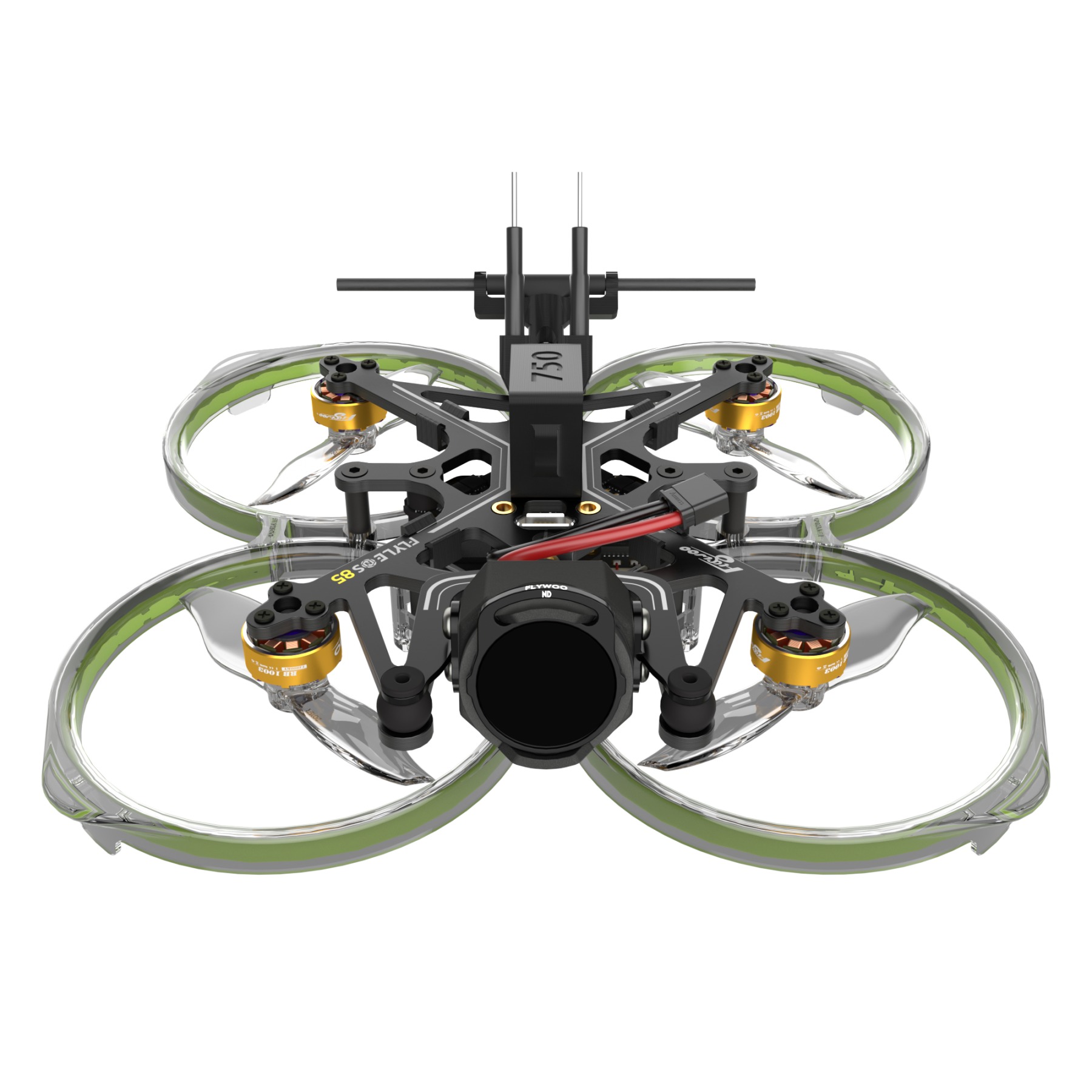

  • A three-point CNC damping platform for the camera

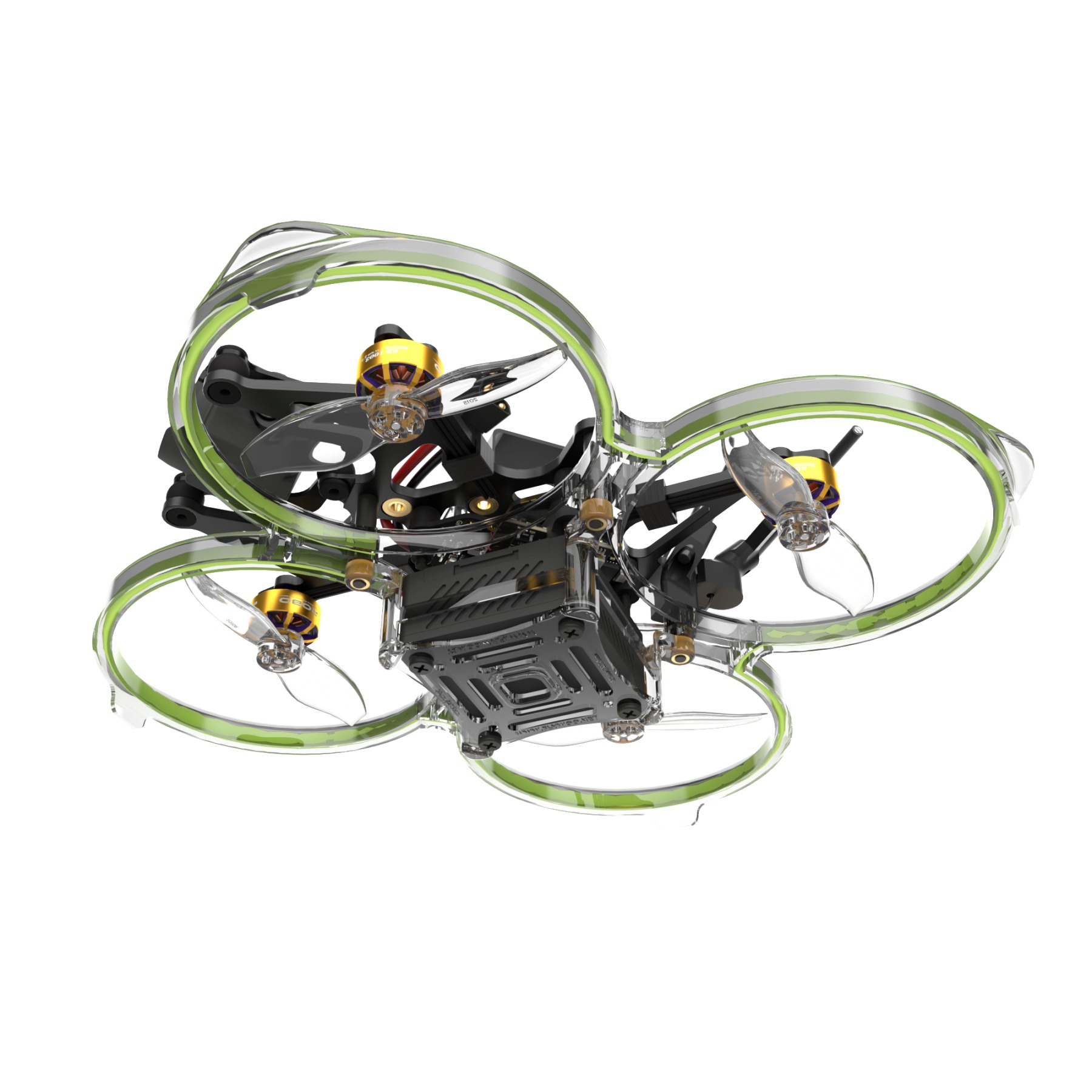

  • A bottom-mounted O3 module
  • A high-strength PC injection-molded protective ring
  • A quick-detach structure



Pictures

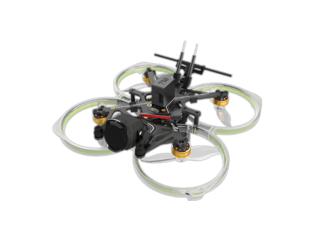

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the FlyLens 85 in particular but at least we know they do distribute FlyWoo.

Wingspan: 128mm (5 in)
Length: 128mm (5 in)

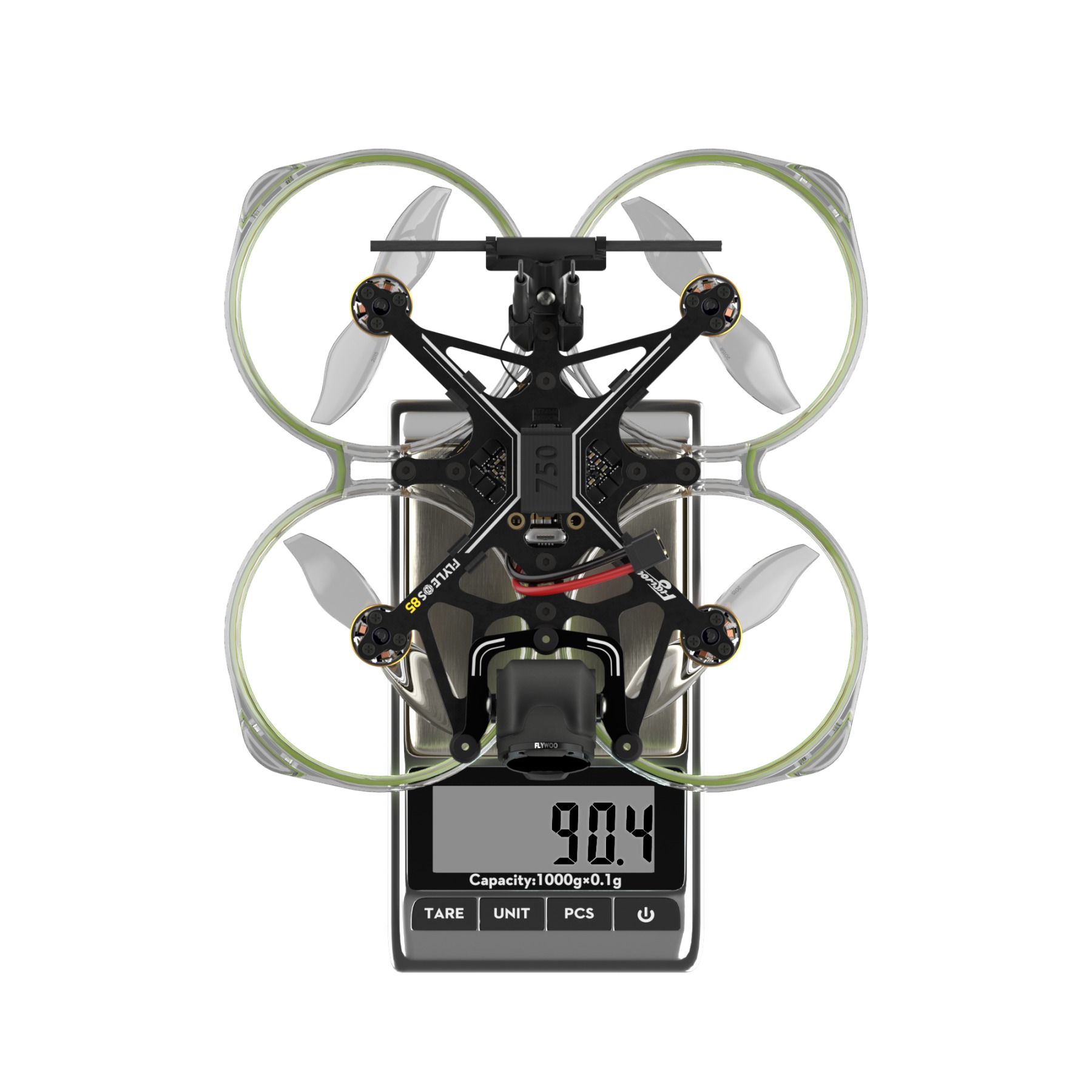

Weight: 91 g (3.2 oz)

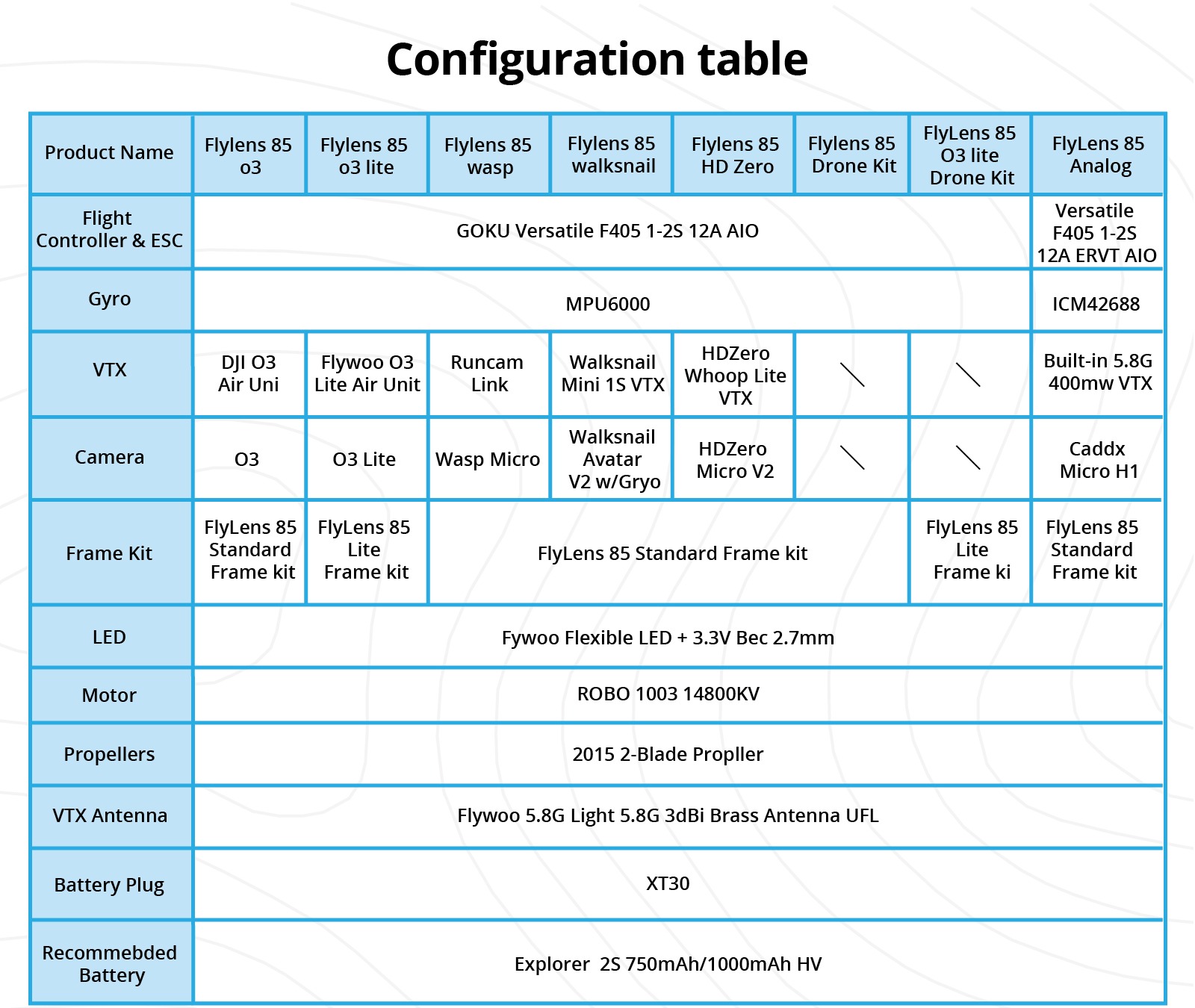

Frame FlyLens 85 Standard Frame kit
Electronic GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (MPU6000)
Transmission DJI O3 Air Unit
Camera DJI O3 Air Unit Camera Module
Propeller 2015 2-Blade Propeller
Motor ROBO 1003 14800KV
Antenna Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL
LED Flywoo Flexible LED + 3.3V Bec 2.7mm
