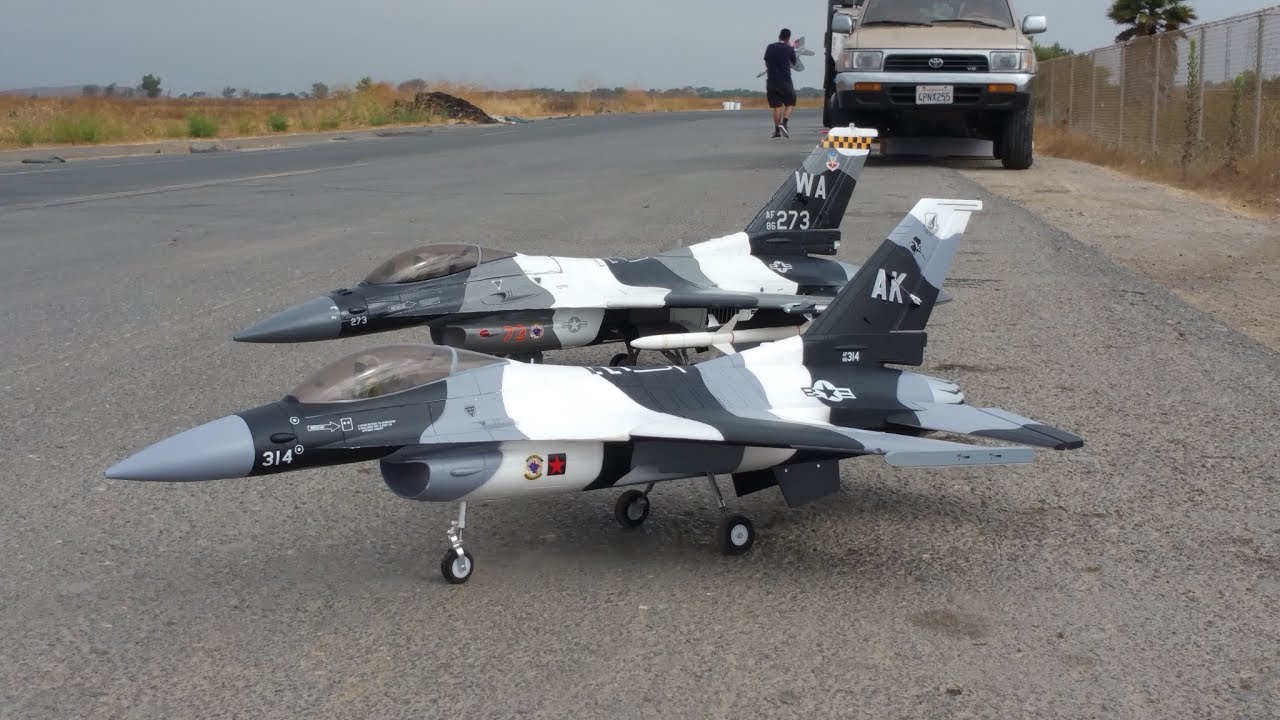

F-16 V2 from Freewing Model

Details

The Freewing 70mm F-16C V2 features electric retractable landing gear for lower drag and better scale appearance during flight. This versatile jet is offered in two different powerplant options: 4s Standard, and 6s Professional. These power systems achieve a maximum speed of 78mph and 103mph, respectively. The aircraft is designed for stability, strong vertical climbing performance, and short takeoff distance. The aircraft can also maintain a high alpha of 30 degrees to demonstrate its superior low speed stability. The 4s Standard version is suitable for beginning intermediate pilots and above skill levels. We recommend the 6s Pro version for skilled intermediate or advanced pilots with experience flying at least two EDFs

Features:

  • Durable EP
  • O Foam and Reinforced Construction
  • Realistic Shape and Detailing
  • Electric Retractable Landing Gear
  • 12 Blade EDF Fan For Realistic Sound
  • Removable Wings and Magnetic Nose Cone for Easy Transport
  • Minimal Assembly
  • Three Decal Sets Included
  • Optional Weapon Set (Sold Separately)
  • Optional Suspension Strut Set (Sold Separately)

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

General Dynamics F-16 Fighting Falcon


General Dynamics F-16 Fighting Falcon

The General Dynamics F-16 Fighting Falcon is an American single-engine supersonic multirole fighter aircraft originally developed by General Dynamics for the United States Air Force (USAF). Designed as an air superiority day fighter, it evolved into a successful all-weather multirole aircraft with over 4,600 built since 1976. Although no longer purchased by the U.S. Air Force, improved versions are being built for export. In 1993, General Dynamics sold its aircraft manufacturing business to the Lockheed Corporation, which became part of Lockheed Martin after a 1995 merger with Martin Marietta.

The Fighting Falcon's key features include a frameless bubble canopy for enhanced cockpit visibility, a side-mounted control stick to ease control while maneuvering, an ejection seat reclined 30 degrees from vertical to reduce the effect of g-forces on the pilot, and the first use of a relaxed static stability/fly-by-wire flight control system that helps to make it an agile aircraft. The F-16 has an internal M61 Vulcan cannon and 11 hardpoints.

In addition to active duty in the U.S. Air Force, Air Force Reserve Command, and Air National Guard units, the aircraft is also used by the U.S. Air Force Thunderbirds aerial demonstration team, the US Air Combat Command F-16 Viper Demonstration Team, and as an adversary/aggressor aircraft by the United States Navy. The F-16 has also been procured by the air forces of 25 other nations. As of 2023, it is the world's most common fixed-wing aircraft in military service, with 2145 F-16s operational.



This article is an extract from the Wikipedia article "General Dynamics F-16 Fighting Falcon", which is released under the Creative Commons Attribution-Share-Alike License 3.0

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 878mm (34.6 in)
Length: 1306mm (51.4 in)

Weight: 1800 g (4 lbs)
Wingspan 34.57in / 878mm
Length 51.4in / 1306mm
Flying Weight 1800g (approx)
CG (Center of Gravity) 90mm / 3.5" from the leading edge of the wing at the root
Power System 2849-2850Kv Brushless Outrunner
Electronic Speed Control 60 Amp with XT60 Connector
Propeller / EDF 70mm 12-Blade
Servos 9g standard with 100mm lead : nose landing gear steering
9g standard with 300mm lead : left aileron, right aileron
9g standard with 550mm lead (plus 300mm extension) : left elevator
9g reverse with 550mm lead (plus 300mm and 100mm extensions) : rudder
Landing Gear Retractable
Required Battery 4 Cell 14.8V 3600 - 4000mAh Li-Po battery with XT60 Connector
Required Radio 6+ CH 2.4GHz Full Range Transmitter
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps No
Lights No
Hinge Type Foam
Material EPO Foam
Skill Level Intermediate
Build Time 2+ Hours
Recommended Environment Outdoor



Requires:

  • 6 Channel Radio - Select a minimum 6 channel radio
  • 6 Channel Receiver - Select a minimum 6 channel receiver
  • 4 Cell 14.8V 3600 - 4000 mAh Li-Po Battery with XT60 Connector
  • 4 Cell Compatible
  • Battery Charger - Select a minimum 4 cell (4S) charger
