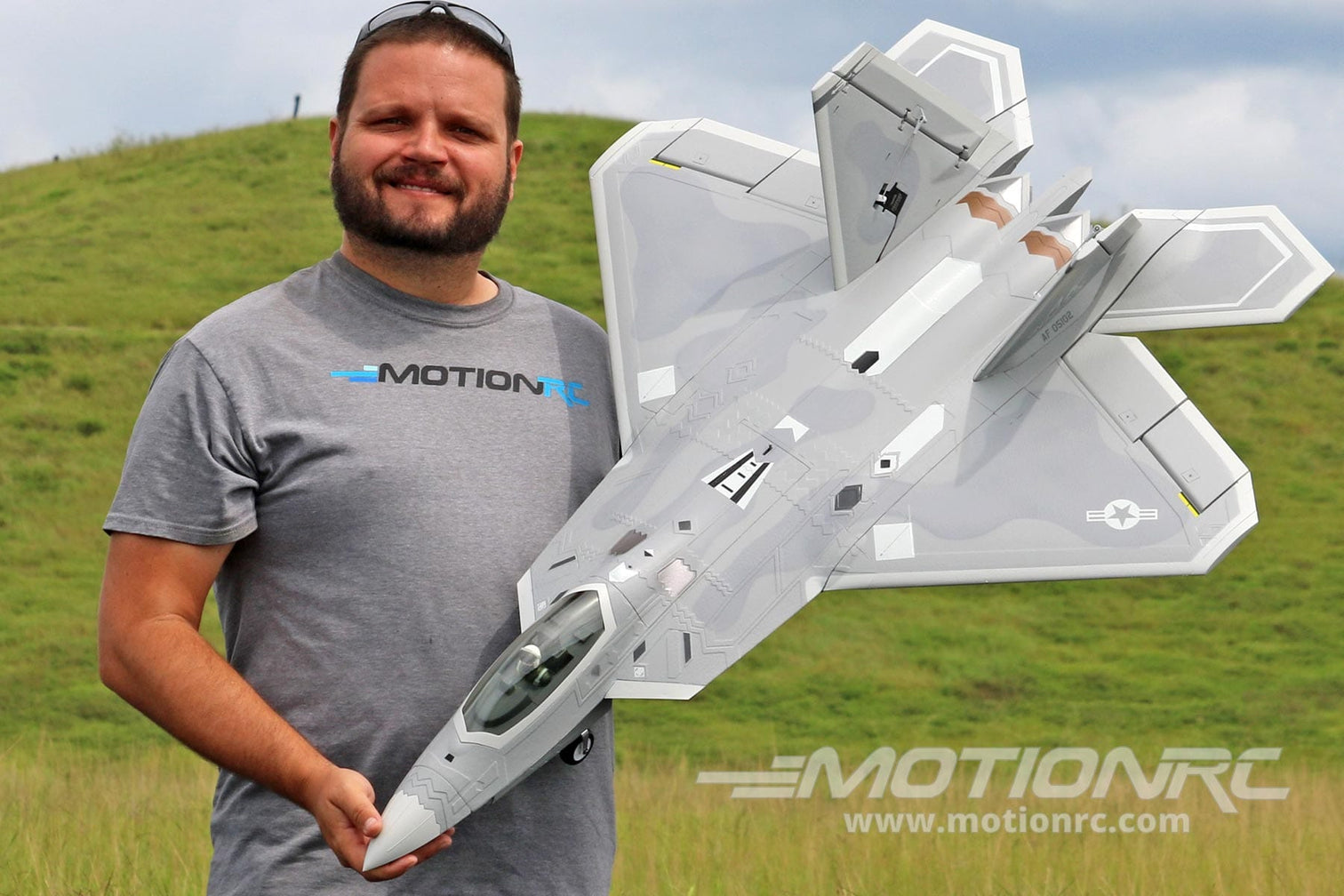

F-22 Raptor 70mm from Freewing Model

Details

Take command of the skies with the Freewing F-22 Raptor 70mm EDF, a jet designed to captivate with its scale realism and ease of use. Featuring highly detailed surfaces with molded-in panel lines and sequenced nose gear doors, this model delivers an authentic, visually stunning experience. The screwless, quick-release main wings make assembly and transport effortless, while CNC-machined aluminum shock absorbing struts help ensure smooth landings. Powered by a 12-blade 70mm EDF power system that offers reliable performance and precise control, the F-22 is perfect for pilots seeking both speed and agility in the air.

Whether you're a seasoned EDF pilot or looking to take your first steps into the world of jet-powered flight, the 70mm EDF F-22 delivers the performance, realism, and convenience you need to make every flight unforgettable.

Features:

  • Screwless, quick-release main wings for easy assembly and transport
  • CNC-machined aluminum shock absorbing struts accentuate the scale appearance
  • Sequenced nose gear doors for enhanced scale realism
  • Highly detailed surfaces with molded panel lines for a realistic appearance
  • 12-blade 70mm EDF for powerful, smooth thrust
  • 2957-2210Kv Inrunner Motor for high-performance speed and efficiency
  • 80A ESC with thrust reversing, 7A UBEC and EC5 connector for advanced control
  • Plastic corner protection located in key areas like intake leading edges, wing tips and the trailing edge of the fuselage to help prevent hangar rash
  • Spring-loaded battery hatch for quick and easy battery access
  • Carbon fiber wing spars for strength and light weight
  • Ball linkages on all control surfaces for precise control
  • Nylon hinges for long-lasting durability

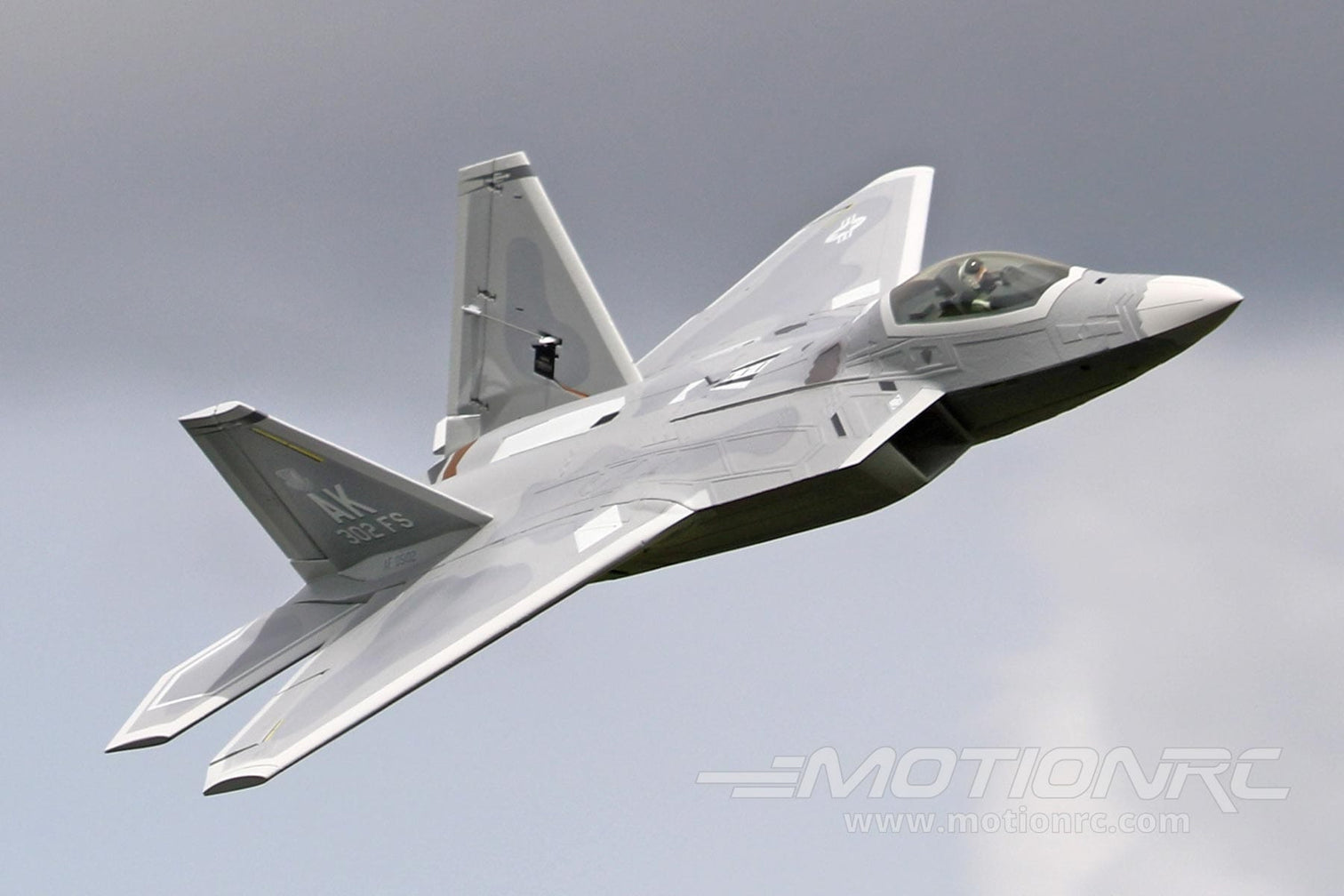

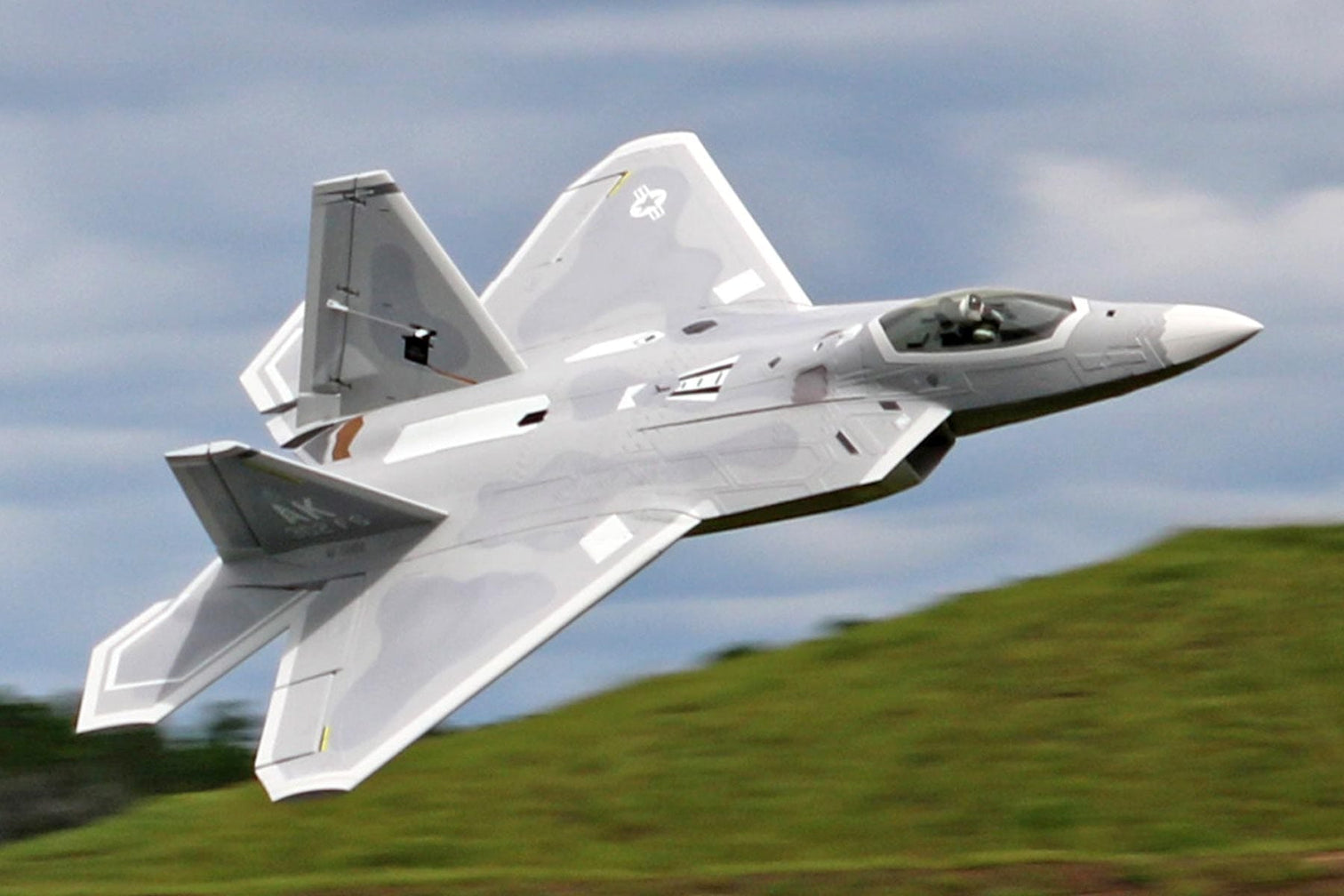

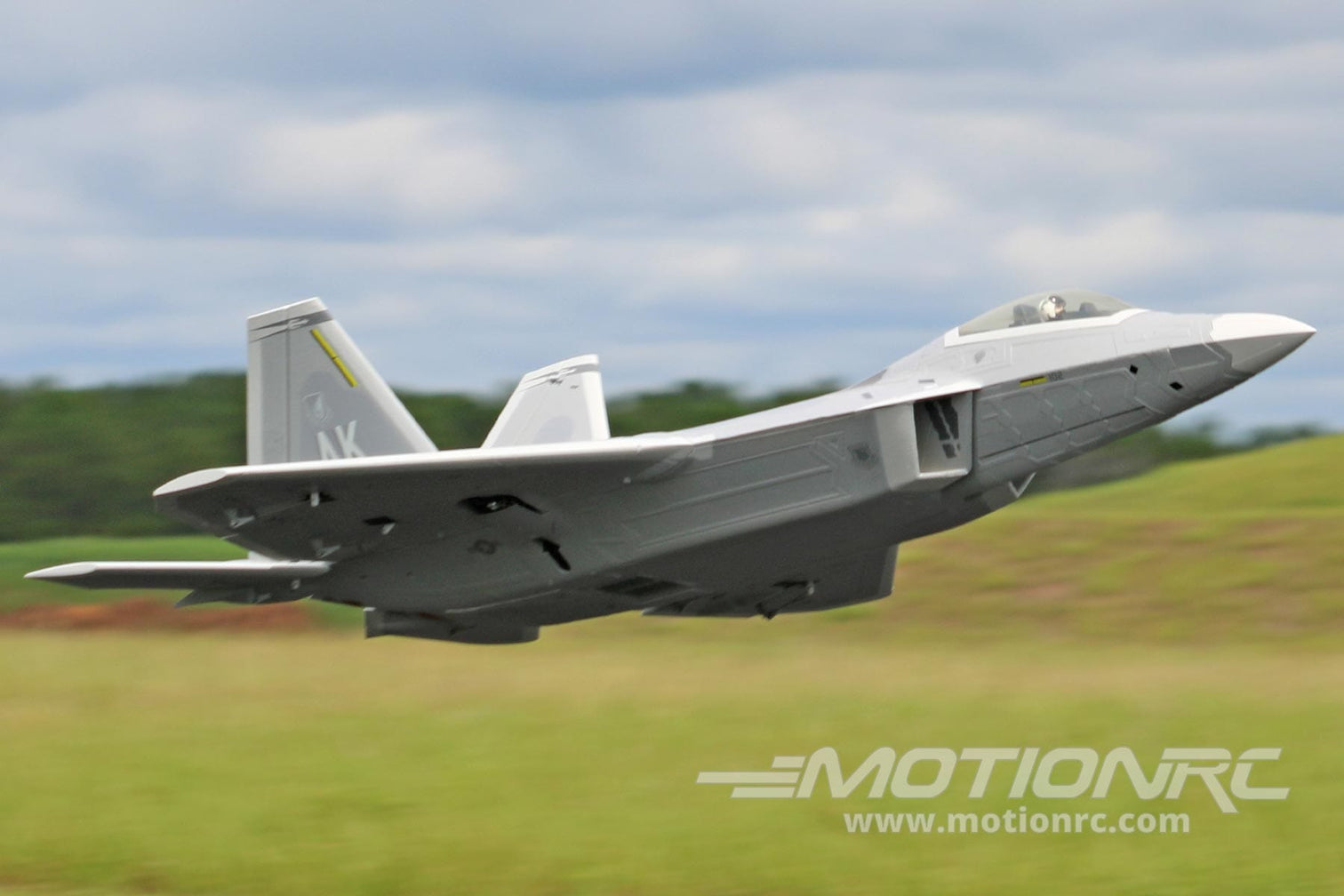

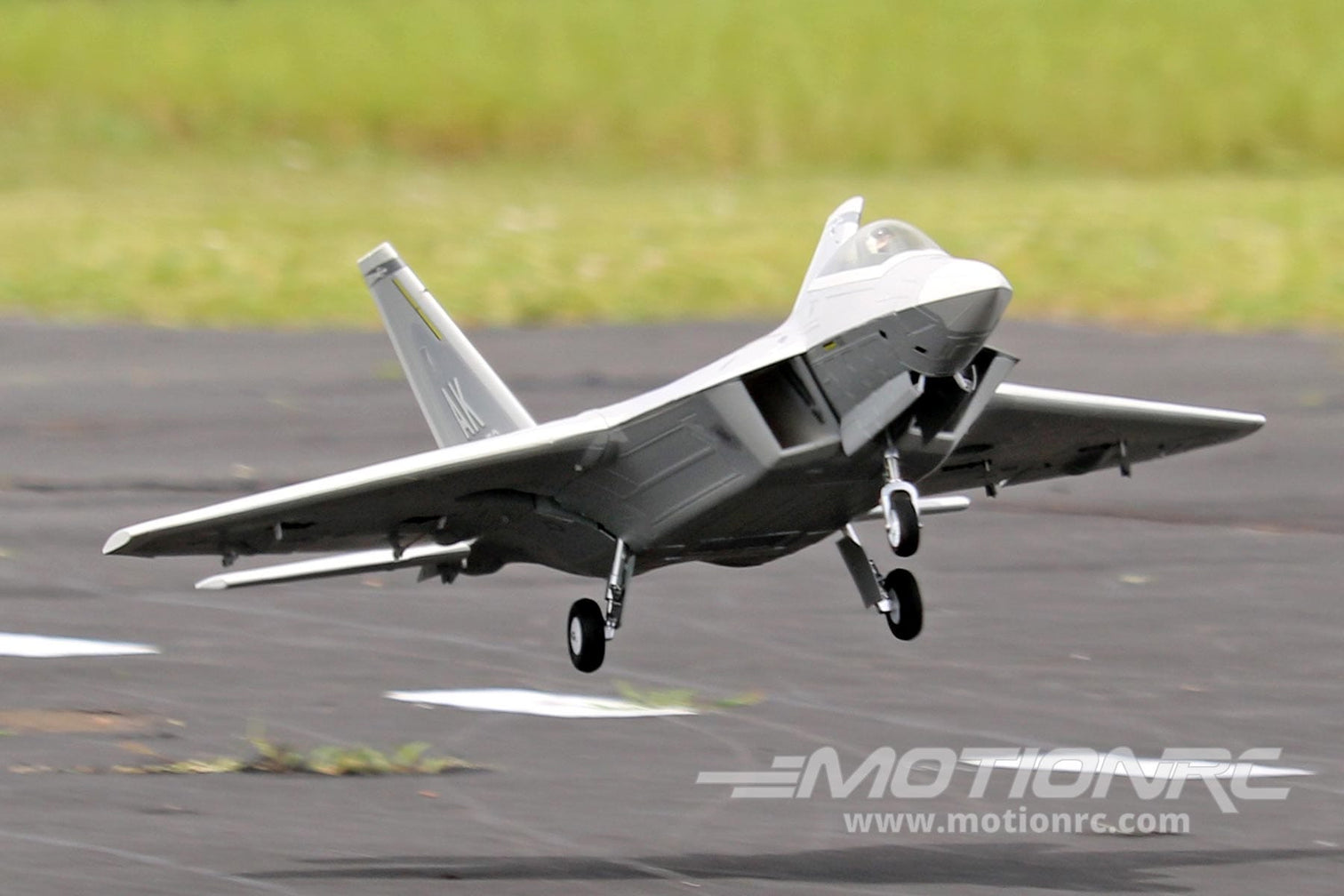

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

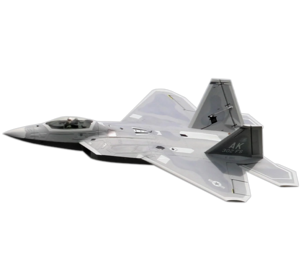

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 816mm (32.1 in)
Length: 1150mm (45.3 in)

Weight: 1740 g (3.8 lbs)
  • Scale: 1/16
  • Wingspan: 816mm / 32.1in
  • Length: 1150mm / 45.3in
  • Weight: 1.74kg (3.83lbs) without battery
  • CG (Center of Gravity): 108mm from the leading edge of the wing at the root
  • Power System: 2957-2210Kv Brushless In-Runner Motor
  • Electronic Speed Control: 80 Amp with 7A UBEC and thrust reversing
  • Propeller / EDF: 70mm 12-Blade
  • Servos:
    • Nose Gear Steering, left and right ailerons - FSS31093-300
    • Left elevator, left and right rudder, left and right flaps - FSS31093-100
    • Right elevator - FSS31093R-100
    • Nose gear doors - FSS31091-300
  • Landing Gear: Retractable landing gear with CNC-machined aluminum, shock absorbing struts
  • Required Battery: 6 Cell 22.2V 3500-5000mAh Li-Po battery with EC5 Connector
  • Required Radio: 6-7 channels (7 required for thrust reversing)
  • Control: Ailerons/Elevator/Rudder/Flaps
  • Material: EPO Foam
