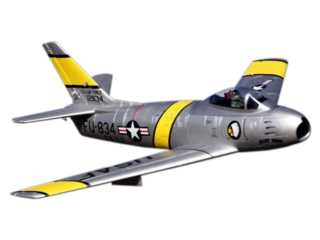

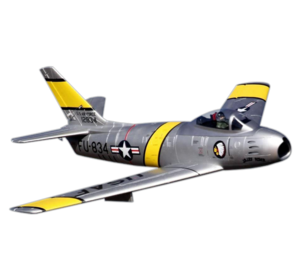

F-86 Sabre from Freewing Model

Details

The Freewing 80mm EDF F-86 Sabre is modeled after the North American F-86F that was flown by USAF Ace Captain Clifford D. Jolley. Captain Jolley, call sign "Jolley Roger", flew in the 4th Fighter Interceptor Wing of the 335th Fighter Interceptor Squadron (Chiefs) during the Korean War and is credited with seven confirmed enemy victories. Such a famous plane deserves a scale model which lives up to legend of Captain Jolley, and Freewing has delivered with the 80mm EDF F-86.

The first thing you will notice about the Freewing F-86 is it's scale appearance and accurate proportions. You won't find a non-scale, over-sized intake on this jet; Freewing has created this famous jet in perfect proportions while not sacrificing performance. Speaking of performance, the Freewing F-86 uses the new 80mm 12-blade EDF with metal housing combined with a powerful 1680kV motor to produce nearly 6 pounds of thrust for awesome speed and incredible maneuverability.

The sound produced from the 12 blade EDF is sure to turn heads at the flying field. While 5 and 6 blade EDFs produce a high pitched whining sound, the 12 blade EDF with metal housing produces the "whoosh" and air crushing sound similar to a gas turbine jet. Additional upgraded features include an 80A Hobbywing ESC, 9g precision servos, electronic retracts with full metal shock absorbing struts, scale drop down flaps, and magnetically removable drop tanks. Keep Captain Jolley's legend alive, own the Freewing 80mm EDF F-86 Sabre Fighter Jet.

Features

  • 12 Blade factory balanced EDF with metal housing combined with 3530-1680kV brushless outrunner motor produces realistic jet turbine sound
  • Composite fan blades combined with metal EDF housing make the F86 AMA compliant (the fan blades themselves are NOT metal, so there are no flying restrictions)
  • Super scale details include hand painted pilots, scale drop tanks, machine gun turrets, airfoil panel lines, and super detailed USAF "Jolley Roger" graphics package
  • 80 Amp Hobbywing ESC with 5A BEC
  • Electronic retractable landing gear with all metal shock-absorbing struts
  • Steerable, shock absorbing nose gear for enhanced ground maneuverability
  • Full function drop down flaps allow shorter take-off distances and slow, scale landings
  • Independently controlled elevators allow perfect trim and more responsive climb and descent capability
  • Drop tanks are connected via rare earth magnets to allow easy attachment and detactment
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • Outrunner motor, servos, ESC and EDF come pre-installed for your convenience.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F-86 Sabre in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Hong-Kong
RC-Castle
check web site
Ship to: Worldwide

Wingspan: 1200mm (47.2 in)
Length: 1200mm (47.2 in)

Weight: 2300 g (5.1 lbs)
Wingspan 1200mm / 47.2in
Length 1200mm / 47.2in
Flying Weight 2300g / 81.1oz
CG (Center of Gravity) check manual
Power System 3530-1680kV Brushless Outrunner Motor
Electronic Speed Control 80A ESC, 5A BEC, EC5 Connector
Propeller / EDF 80mm Metal EDF with 12 Blade Fan
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Required Battery 6S 22.2V 4000mAh-4500mAh (4500 40C or 4000 60C) LiPo

Variants

FJ20312P
F-86 Sabre (Silver Yellow)
