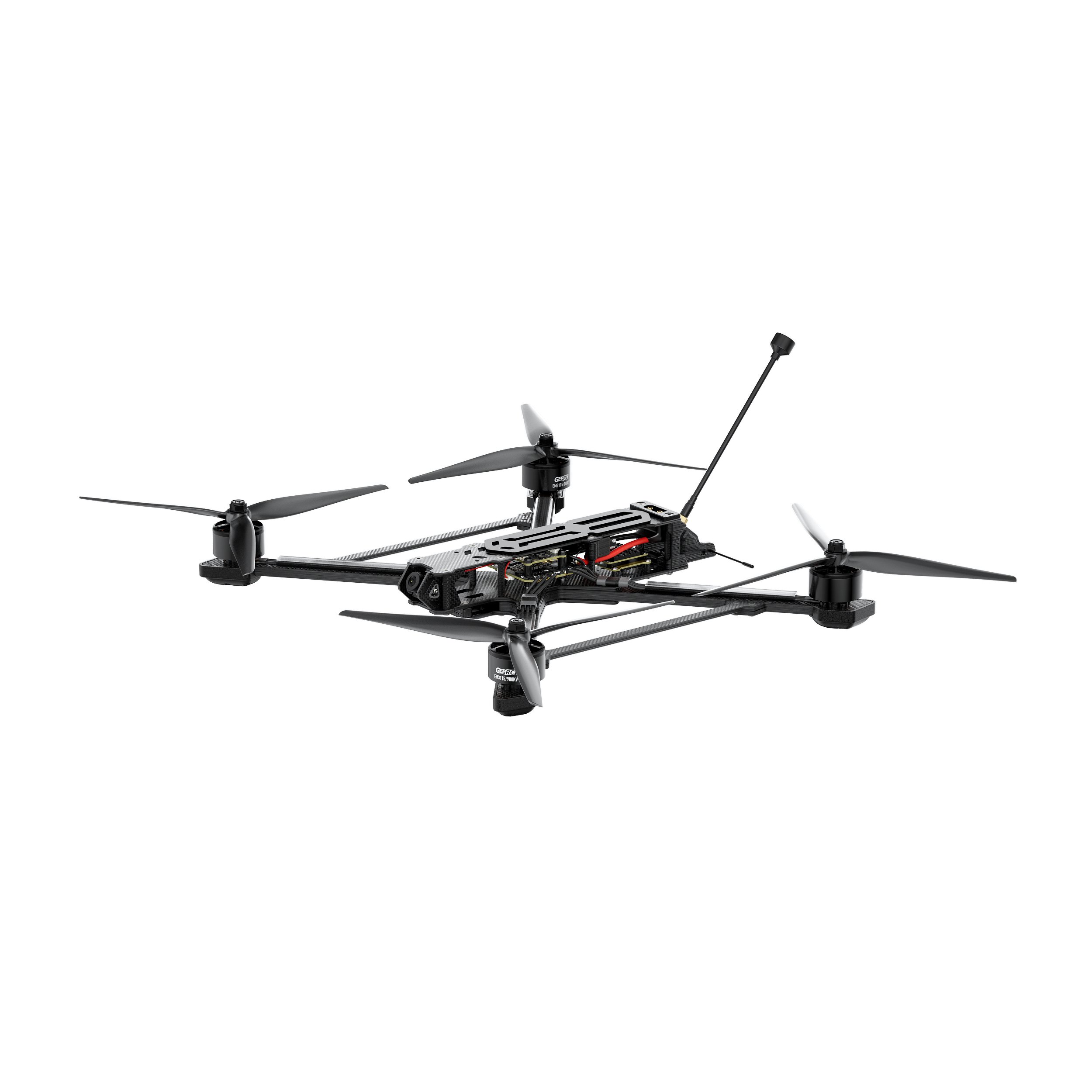

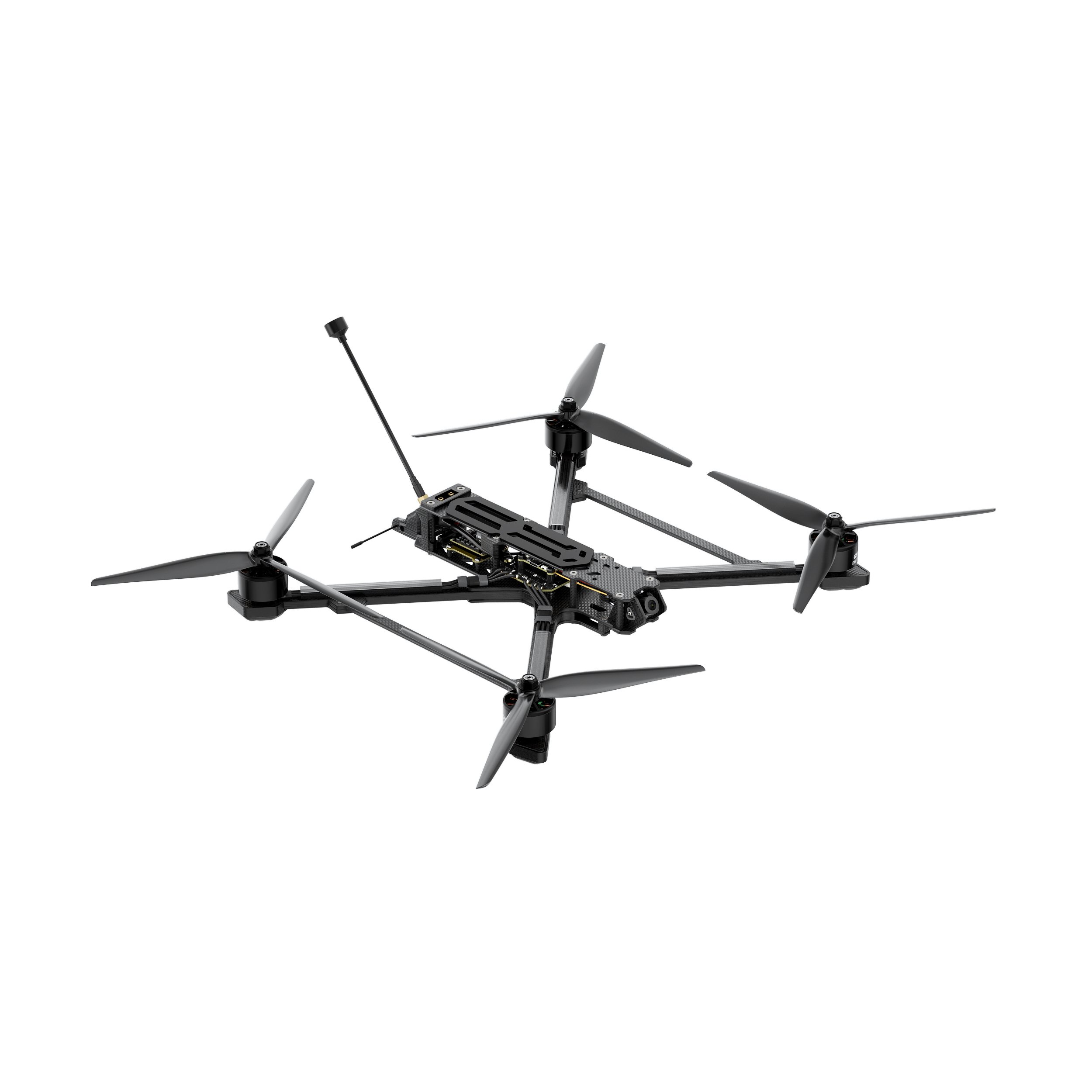

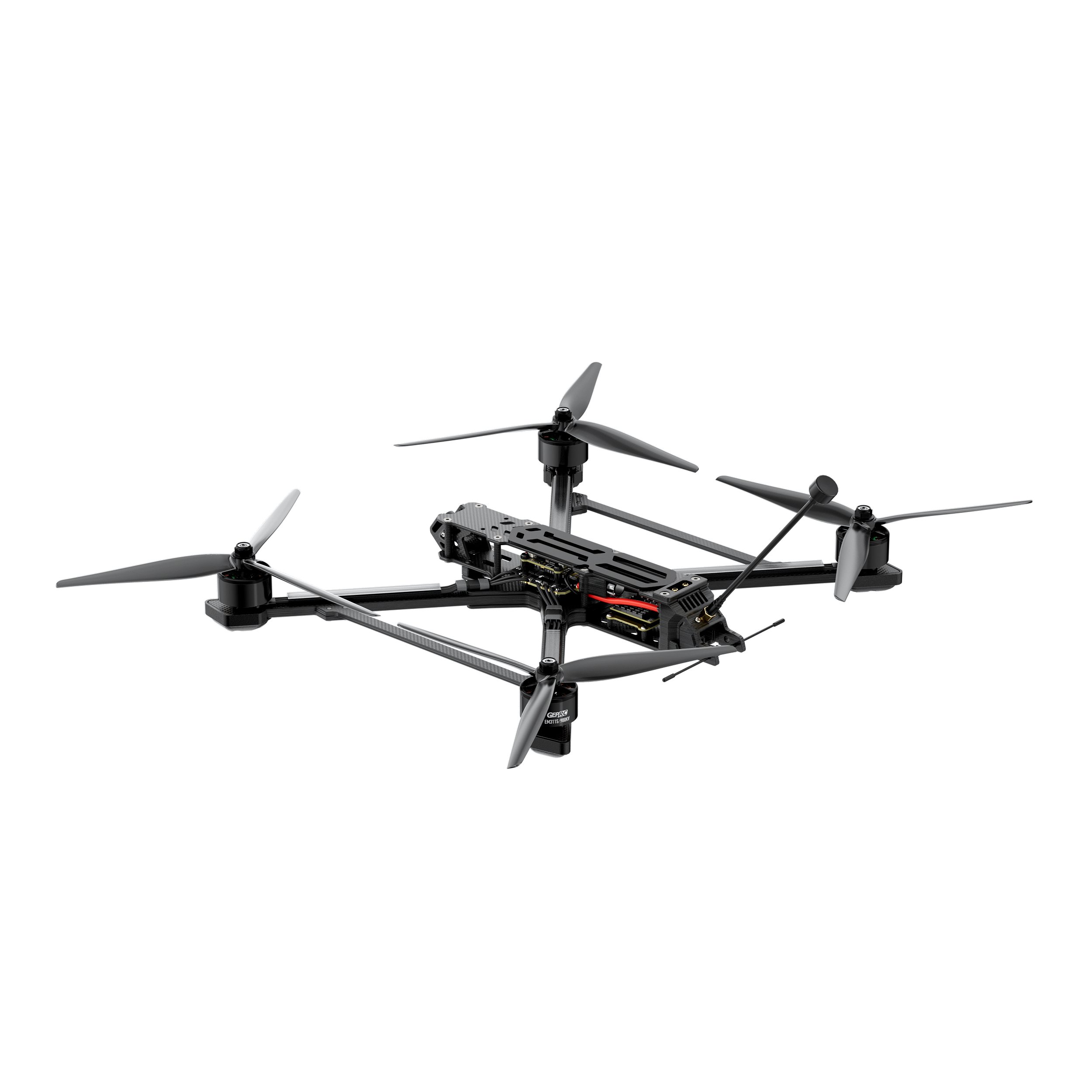

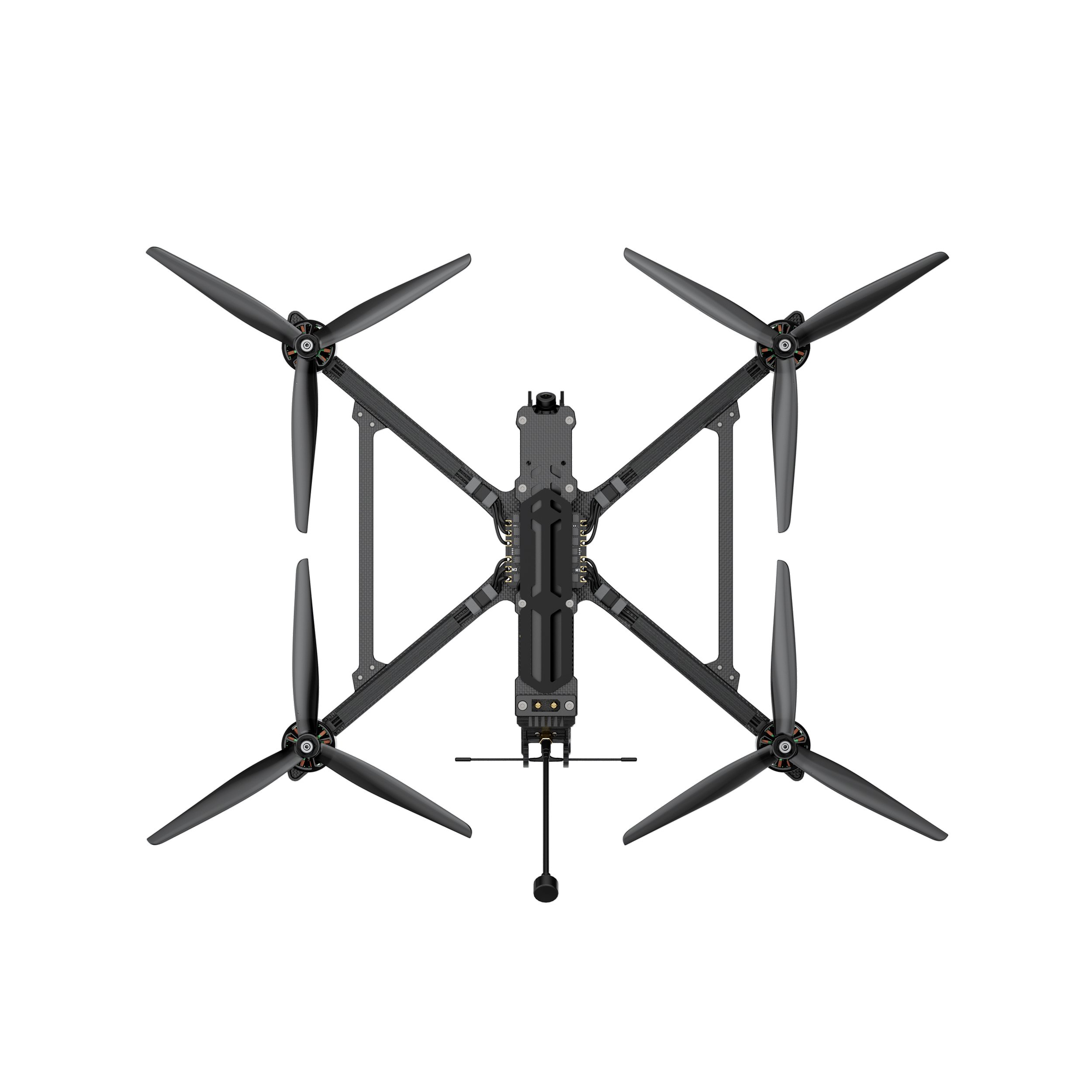

EF10 from GEPRC

Details

High-power VTX ensures signal stability and reliability
Equipped with EM3115 KV900 motors, using 10-inch propellers, maximum load 4kg
Using TAKER BLS 80A ESC high-performance hardware, 48 high-power MOS for more stable output
GEP-F405-BT flight controller, supports mobile phone Bluetooth parameter adjustment
Upgraded high-strength 7mm thick arms and wide X-shape structure ensure overall flight stability
Newly designed fixed power plug makes powering on more convenient

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the EF10 in particular but at least we know they do distribute GEPRC.

Where to buy

China
GEPRC
check web site
Ship to: Worldwide

Hong-Kong
HELIPAL
check web site
Ship to: International

Wingspan: 430mm (16.9 in)
	Length: 430mm (16.9 in)
Weight: 969 g (2.1 lbs)

See Specs & Tech Details

Frame: GEP-EF10
Wheelbase: 430mm
Top plate thickness: 2mm
Medium plate thickness: 3mm
Bottom plate thickness: 3mm
Side panel thickness: 2.5mm
Arm thickness: 7mm
FC: GEP-F405-BT
ESC: TAKER BLS 80A 4IN1
MCU: STM32F405RGT6
Gyro: ICM-42688-P
VTX: RAD VTX 5.8G 2.5W / RAD VTX 5.8G 1.6W / MATEN 1.2G 2W VTX
Camera: Caddx Ratel2
Antenna: Momoda 5.8G RHCP SMA interface
Motor: EM3115 KV900
Propeller: HQProp 1050-3
Connector：XT90
Weight: 969g
