Goblin Kraken from Goblin Helicopters

Details

The all new Kraken kit with all upgrade parts, lighter canopy, boom, carters, white landing gear, titanium main and spindle shafts.

Features

  • Power train full enclosed in aluminum case.
  • Ultra-light, 7075 aluminum alloy highly adjustable rotor head.
  • Independent belt shafts for the transmission and the tail.
  • Ultra-light Tail case with quick tail fin replacement.
  • Full body and boom design with integrated frames.
  • Boom detachment system for improved crash durability.
  • Power train full enclosed in aluminum case.
  • Power train support 3 shafts: Main shaft to the rotor, shaft to the motor, shaft to the tail.
  • One-way system inside the Module
  • Reliable, suitable for transmitting any power, it does not require maintenance.
  • Sturdy in case of crash. It is possible to replace the main shaft by removing a single screw.
  • The transmission module is supplied assembled and verified, ready to be used.
  • Power train full enclosed in aluminum case.
  • Ultra-light, 7075 aluminum alloy highly adjustable rotor head. The KRAKEN head allows for a very broad range of dampening setups. The dampers are composed of 3 O-ring (that defines the rigidity) and a techno polymer damper (that defines the maximum possible movement of the spindle). Using different Oring and dampers you can get different responses of the model.
  • The blade grips are made from 7075 T6 Aluminum and the blade grip arms are made from 6061 T6 Aluminum. In a crash you can bend the arm, but you will never damage the blade grip. Using 1x M4 screw makes it very easy to replace just the arm.
  • Independent belt shafts for the motor transmission and the tail.
  • Ultra-light tail case with quick tail fin replacement, 3 mm full carbon side plate, 23 grams lighter than the Thunder tail case. Very simple, strong, reliable & durable
  • Full body and boom design with integrated frames.
  • Boom detachment system for improved crash durability.
  • Kraken ESC support composite tray with sacrificial plastic insert. The edges are covered in rubber for protection...ESC wires are happy:-)
  • Wire Support for super east wiring.
  • Battery tray.
  • Goblin Kraken High-tech composite carbon and airex sandwich.

Pictures

Manual

Radio icons

(Click on the icon you want to download)

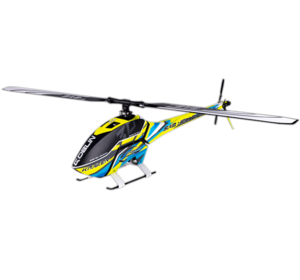

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ

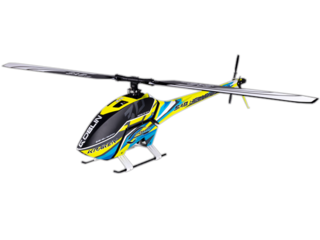

Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin Kraken in particular but at least we know they do distribute Goblin Helicopters.

Where to buy

Austria
Heli Shop
check web site
Ship to: Europe
USA
AMain Hobbies
check web site
Ship to: USA
Australia
Perth RC
check web site
Ship to: Australia
USA
Esprit Tech Model
check web site
Ship to: USA
Ireland
Model Heli Service
check web site
Ship to: Ireland

Wingspan: 1548mm (60.9 in)
Length: 1548mm (60.9 in)

Weight: 3800 g (8.4 lbs)

Main rotor diameter: 1548mm
Main blade length:  690mm
Tail rotor diameter: 284mm
Tail blade length: 105mm
Main shaft diameter: 2mm
Tail shaft diameter: 6mm
Weight:  3800g (ex. Battery)
Cyclic Servos:  Standard size 40mm
Tail Servo: Standard size 40mm
Typical speed controller: 200A
Maximum motor size: 62 mm diameter x 70 mm height
Motor KV: 500-560KV
Battery compartment: 56mmx70mmx320mm
Battery capacity: 12S 4200/5500 mAh
Available ratios: From 8.8 to 12.1

Variants

SG741
Goblin Kraken (Yellow Blue)
