KT20 from HGLRC

Details

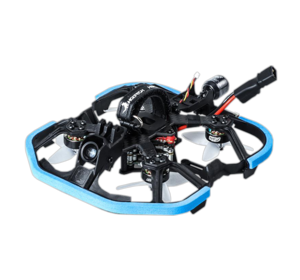

The manufacturer HGLRC offers the KT20 in analog and digital versions. It's a Cinewhoop nano racer that stands out with a fairing reminiscent of karting. It is based on a 9 cm diagonal frame from engine to engine, for total dimensions of 13 x 13.8 cm.

  • The Frame supports (25.5x25.5mm) installing holes;
  • Kart shape, super high value;
  • 2 inch rack, compact and light to adapt to any venue;
  • Indoor and outdoor, you can fly as much as you like.

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the KT20 in particular but at least we know they do distribute HGLRC.

Where to buy


Wingspan: 138mm (5.4 in)
Length: 130mm (5.1 in)

Weight: 25 g (0.9 oz)

HGLRC KT20 Frame

  • Material:3K carbon fiber
  • Type:2 inches frame
  • Wheelbase:90mm
  • Size:130*138mm
  • Top plate:2mm
  • Bottom plate:1.5mm
  • Space:22mm
  • Flight control mounting hole:25.5x25.5mm
  • Support camera:14*14mm
  • Weight:24.6g

Zeus10 AIO 2-6S Flight Controller

  • Gyro:MPU6000
  • Input Voltage:2-6S Lipo
  • BEC Output:5V/2A
  • Firmware:ZEUSF4EVO

CADDX Polar vista kit

  • Operating frequency:5.725-5.850 GHz
  • Input power:about 7.4-26.4V
  • Channels:8

AEOLUS 1303.5 4500KV Motor

  • Motor KV:4500KV
  • Input Voltage:3-4S
  • Mounting hole:4*M2-∅9

Emax Avan Micro 2" 4-blade Propeller

  • Quantity:4 CW & 4 CCW

Recommended Battery(Not included):

  • 4S:550mah-850mah

Variants

KT20
KT20 (Black Blue)
