Mobula7 1S from Happymodel

Details

Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.

The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.

New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

Features:

  • X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
  • VTX Power up to 400mw
  • ELRS V2.0 Support
  • NEW RS0802 KV20000 motors
  • Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
  • Smooth and powerful
  • Compatible for 1S Lipo/LIHV
  • Recommend 1S 450mah/550mah/650mah battery(Not include)

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

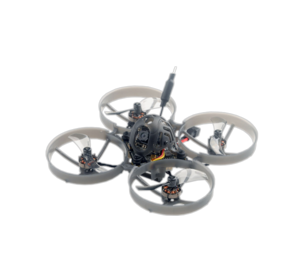

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

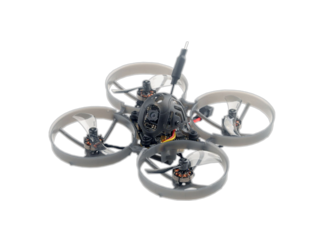

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Mobula7 1S in particular but at least we know they do distribute Happymodel.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 99mm (3.9 in)
Length: 99mm (3.9 in)

Weight: 24 g (0.8 oz)

  • Wheelbase: 75mm
  • Size: 99mm*99mm*40mm
  • Weight: 24g
Motor Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only
Propellers Weight:0.24g
Material:PC
Pitch:1 inchProps Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 PNP V1.0 flight controller with external TBS CRSF Nano receiver Target: CRAZYBEEF4DX
X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Onboard 5.8g OPENVTX Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Runcam Nano3 Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
