SHARD from PLANEPRINT

Details

The SHARD, not based on any original model, is a completely newly designed RC aerobatic aircraft by René Marschall. This allowed the special requirements of manufacturing with 3D printers to be taken into account in the basic design.

For the first time, we are using a new construction method instead of the classic single-wall printing, which provides the necessary stability and everyday usability for an extremely agile aircraft. For this we have added a new profile for the settings in Cura, PROFILE_5_gyroid. This allows very compact building blocks, reinforced with carbon rods, to allow extreme flight maneuvers. All LW-PLA parts of the SHARD are printed with this profile.

Another advantage of this method is the higher temperature stability in direct sunlight.

The SHARD has attachable side force generators, but can of course be flown without them. The ailerons, elevator and rudder are designed for large angles to allow the usual 3D flight maneuvers. It is also great for classic aerobatics or leisurely flying. The SHARD is a model for experienced pilots, who can adjust it exactly to their personal preferences.

STL can be purchased on PlanePrint web site

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

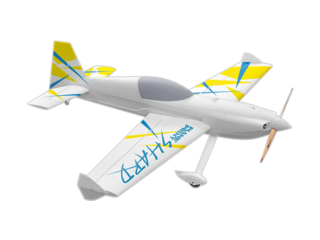

Radio icons

(Click on the icon you want to download)

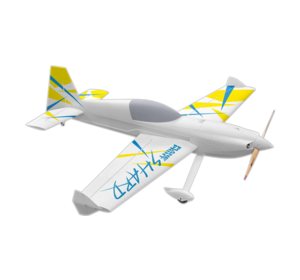

FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the SHARD in particular but at least we know they do distribute PLANEPRINT.

Where to buy


Wingspan: 1300mm (51.2 in)
Length: unknown

Weight: 2100 g (4.6 lbs)
  • Wingspan: 1300 mm (51.2 inches)
  • Flight weight: 2100 grams (4S/3450MaH)
  • Wingload: 52 g/dm2
  • 5-channel
  • Motorization: 4S
  • Material: LW-PLA 1000g/TPU 100g

Variants

shard
SHARD (White Yellow Blue)
