Cessna TTX from HobbyKing

Details

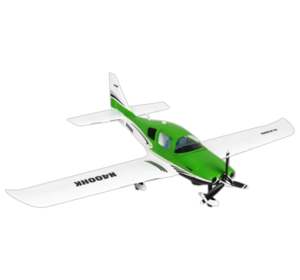

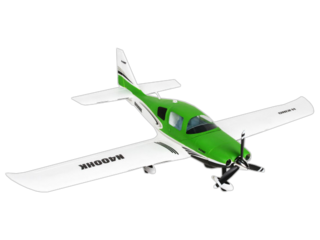

The H-King Cessna TTX is an excellent, scale rendition of the original plane made by Cessna. It is made of tough EPO foam and is beautifully crafted with panel lines and scale cockpit and other details. Plenty of power with the scale 3-blade propeller.

The Cessna TTx is a single-engine, low wing, general aviation plane with a fixed tricycle undercarriage and was produced between 2004-2018 by Cessna Aircraft. It was originally called the Cessna 400. It was designed to carry a pilot and three passengers.

At 1100mm wingspan the TTX is small enough to transport fully assembled but if you need to take the wings off it is extremely easy with the new wiring quick-connectors. Take-offs and landings are a breeze thanks to the scale slotted flaps and the super bright navigation lights will allow everyone to easily spot this streamlined plane. With a thrust ratio of 1:1.3 there is no trouble doing some easy rolls and loops and other maneuvers. The large hatch area makes installing a battery so easy.

Features:

  • Lightweight yet strong EPO material
  • Scale details like antennas, steps, cockpit, panel lines and more
  • Big powerful scale slotted flaps
  • With super bright navigational lights
  • Big battery access hatch for easy battery installation
  • A set of special designed servos and LED wiring quick-connectors are pre-installed for easy wing installation
  • An efficient 3-blade scale propeller and a powerful motor are perfectly matched to provide longer flight times and higher power with more than 1:1 thrust to weight ratio

Pictures

Manual

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Cessna TTX in particular but at least we know they do distribute HobbyKing.

Where to buy

Hong-kong
HobbyKing
check web site
Ship to: World

Wingspan: 1100mm (43.3 in)
Length: 700mm (27.6 in)

Weight: 675 g (1.5 lbs)

Wingspan: 1100mm
Length: 700mm
Weight: 675g (without battery)
Thrust to weight ratio: 1:1.3
Motor: 3530-1200KV
ESC: 30A Brushless
Servo: 9g x 6pcs
Flight time: about 5-7mins
Propeller: 8x4.5 3-blade (2 provided)

Requires:
1 x 6CH Radio System (TX/RX)
1 x 1300mAh 3S (11.1V) 20C Lipo Battery

Variants

9325000021-0
Cessna TTX (White-green)
