EPP FPV from HobbyKing

Details

Designed especially for FPV (First Person View) camera flight!
This is a true FPV plane thats easy to build and comes packed with common sense FPV must-haves such as rear mounted servos for the elevator and rudder to help counter balance the additional radio gear, rear servos can also be moved up and down the tail's Carbon Fiber shaft to adjust CG. The narrow fuselage helps glide rates for longer flight times and yet it still has a large area for and aft of the CG to move the battery for better balancing when using heavy camera/Tx gear.

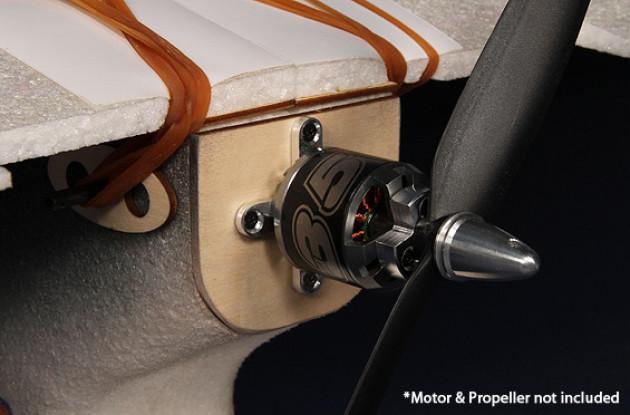

Rear mounted 10inch pusher-prop diameter motor-mount keeps motor and esc away from the camera to reduce noise.
EPP foam makes the plane very resistant to crashes and rough landings.
The EPP-FPV glider has a twin CF-Spar 1.8m wingspan for higher, longer flight times with a wide range of camera equipment.
The HobbyKing EPP-FPV has 4 channels (Ail, Rud, Elev, Thr) for agile performance and is reinforced with 2 CF spars on the main wing, a CF tail boom and CF elevator spar plus the ailerons have flat CF rods for stifness during fast turns or dives.
The mian wing can be removed easily for transport.

The HobbyKing EPP-FPV can take any number of batteries however we recomend a 2600~4500mAh 3S pack for long flight times and good CG balance.

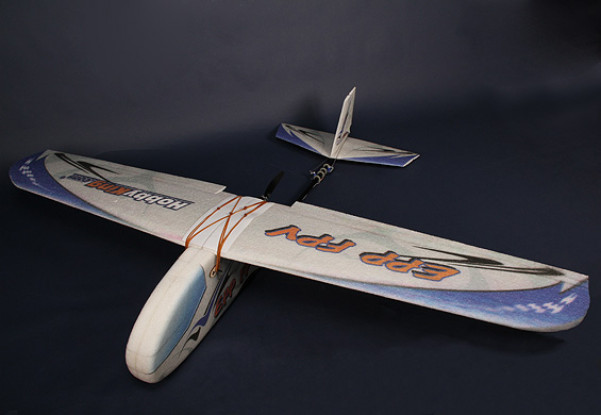

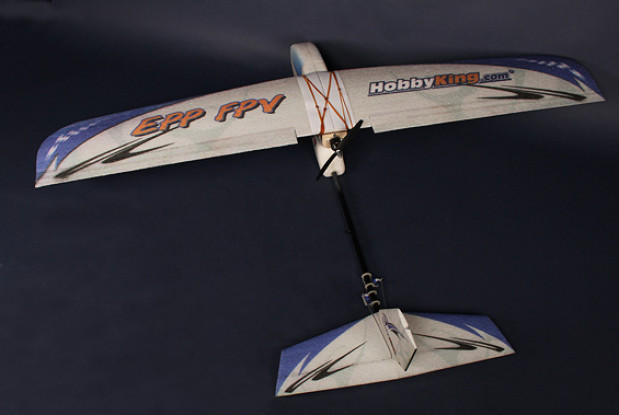

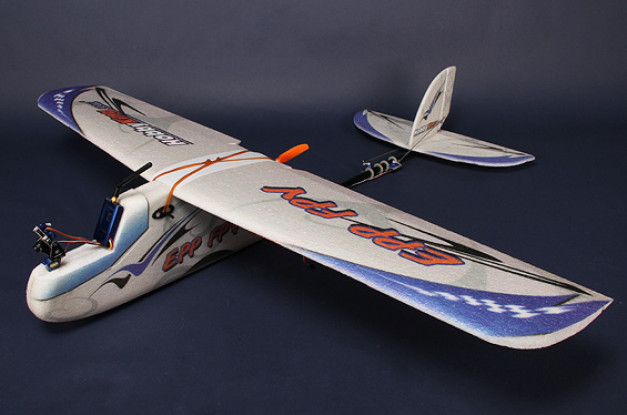

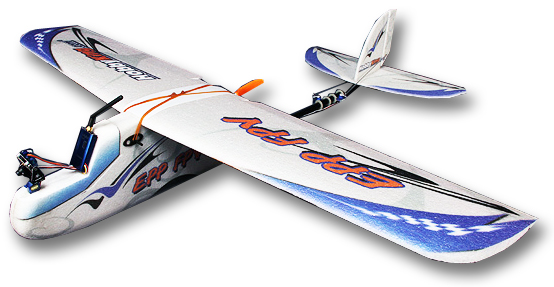

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

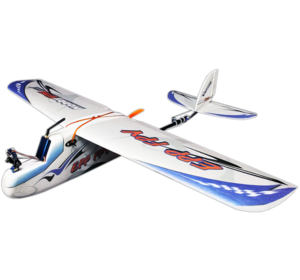

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

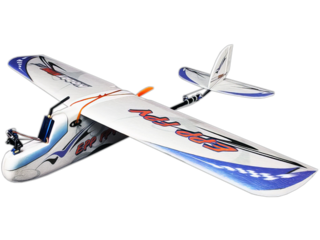

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1800mm (70.9 in)
Length: 1150mm (45.3 in)

Weight: 1000 g (2.2 lbs)
  • Fuselage length: 1150mm
  • WingSpan: 1800mm
  • ARF Weight: 800~1000g


Required.

  • Motor: 35xx ~1400kV Brushless outrunner
  • Propeller: 10x6 slow flyer
  • Battery: 11.1V 3S 2200mah 20C
  • Servo: 4 x 9g
  • ESC: 40A
  • Your own TX & RX
