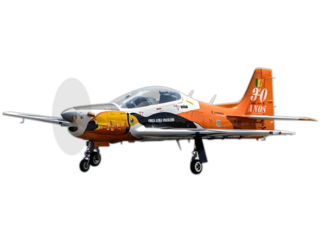

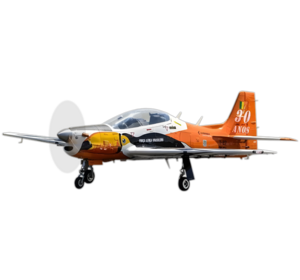

T-27 Tucano 20cc from Juniaer

Details

After years of experience, improvements and evolution of technology we are pleased to present our new version of this classic and beloved model airplane so popular for its sport/scale aerobatic flight with docile and predictable aerodynamic behavior.

A model that surprises by the scale visual, details such as antennas, rivets, panel lines, exhaust replicas, main and front landing gear doors (not installed), handmade painting with top quality finish, scale adhesives according to the painting scheme applied and varnished in the model, and also for the pleasure of flying, since it remains stable in high and low speeds, scale flaps give much realism and stability for landings and slow flight.

Prepared for installation of retracts (not supplied) pneumatic, mechanical or electrical, a wide variety of equipment can be used without problems or adaptations. Prepared for installation of scale navigation lights (not supplied), wing tips and wing landing lights with clear lenses. This is the T-27 Tucano 20cc ARF Juniaer.

High-quality epoxy resin model with structural reinforcements, low weight and high strength due to high technology FULL COMPOSITE vacuum lamination technique.

2 piece wing (1 aluminum tube) laminated in fiberglass and epoxy resin with carbon fiber reinforcements and plywood and balsa laser cut structural parts. Ailerons, flaps, and elevators are factory hinged in perfect alignment. Wing and stabilizer servos are internal for improved scale appearance and fixed in structural plywood laser cut ribs for easy and quick installation and precise flight controls command.

Fuselage made of epoxy resin laminated with fiberglass fabrics and carbon fiber structural reinforcements, providing high structural strength and low weight with extensive durability. Rudder to be installed with hinge points provided with the kit. Servo tray and tank tray in laser cut plywood. Great finishing with automotive paint, adhesives according to painting scheme and varnished for optimal durability. Transparent canopy and resin canopy frame can be installed fixed or with opening and closing mechanism, resin cockpit with replicas of seats and control panels, scale pilot available separately. Firewall installed with correct and definite angles, with center marking and drilling points. 2 part engine cowl provided without cutouts making it easy to access the engine for adjustments or checkups. It must be cut into the final assembly according to the position of engine, exhaust and installed accessories. Side door with opening and closing mechanism installed and ready to accommodate on/off switches, fuellers, voltage monitors and other equipment to be installed on the model aircraft.

The T-27 Tucano 20cc is indicated as: Advanced Low Wing Trainer, for acrobatic initiation, the model airplane becomes very stable and docile at low commands rate and the flaps ensure support for a good landing. Stall speed reduced and enlived by Juniaer aerodynamics resources; Scale Model Airplane, for realistic flight reproductions and acrobatics as cuban eights, slow rolls, 4 point rolls, stall turns, loopings, inverted flight, etc… ; Sport/Scale Model Airplane, for high adrenaline acrobatics as snap rolls, knife edge, high speed dives, lancevack, etc…

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T-27 Tucano 20cc in particular but at least we know they do distribute Juniaer.

Where to buy


Wingspan: 1797mm (70.7 in)
Length: 1480mm (58.3 in)

Weight: 6000 g (13.2 lbs)
  • Wingspan: 1797mm
  • Length
    • no spinner 1405mm
    • with spinner 1480mm
  • Flying Weight: 11 to 13.22 lb  (5 kg – 6 kg)
  • Engines:
    • Glow 2 cycle (90 to 120)
    • Glow 4 cycle (100 to 125)
    • Gas Burning (20cc)
    • Electric (450kV 1800W 18.5 to 22.2V LiPo)
  • Radio: Minimum 6 channels with limited features – We recommend 7 or more channels
  • Servos: All servos must be 55.5 oz/in torque or more.
  • Spinner: 2 1/2″ (63.5mm)
  • Wheels: 2 3/4″ (69.85mm) main and 2″ (50.8mm) front.

Variants

T27-20-30
T-27 Tucano 20cc (White Orange Black)
