Logo 690 SX from Mikado

Details

The LOGO 690 SX from Mikado is a cross-over model, combining the best of 600 and 700 size helicopters. This makes for extraordinary flight performance.

  • LOGO 690 SX—a 700 size heli with a weight of just 4.8 kg (12S-5,000)
  • light und durable chassis fiberglass reinforced frame with battery quick release system
  • for 12S Lipo battery, 4,000 mAh to 5,000 mAh
  • aluminum swashplate with new geometry for quicker cyclic response
  • robust tail drive via HTD-belt with aluminum drive pulleys
  • stronger blade grips with Ø 5 mm blade grip bolt
  • stronger free wheel for higher torque
  • additional aluminum/carbon battery tray
  • reinforced clamp ring for main rotor shaft
  • herringbone main gear makes for smooth sound
  • extra-stiff carbon tail boom brace
  • new airbrushed chassis cover lets you identify the flight attitude of the heli more easily
  • glass-fiber airbrushed canopy with new look

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

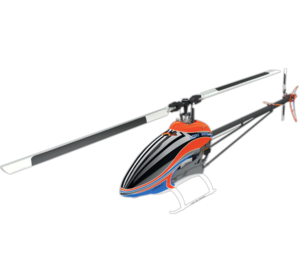

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

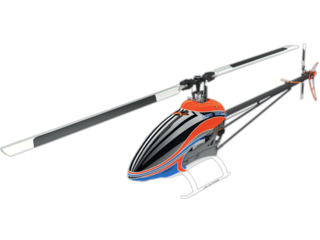

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Logo 690 SX in particular but at least we know they do distribute Mikado.

Wingspan: 1550mm (61 in)
Length: 1340mm (52.8 in)

Weight: 4800 g (10.6 lbs)
Rotor diameter 1,550 mm
Rotor blades 690 mm
RTF weight 4.8 kg
recommended batterie 12S Lipo (4.000-5.000 mAh)
Main gear ratio 1:7.06
Tail gear ratio 1:4,76
Main Gear size 106 Module 1
batterie slot 58 x 55 x 330 mm
Length 1,340 mm
Hight 390 mm
Width 330 mm
