Oxbot Lumo 18

Radio-Controlled Multirotor for RC Pilots

Details

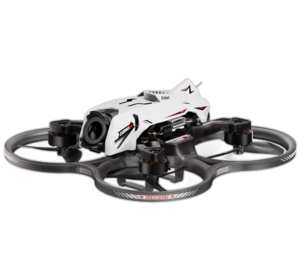

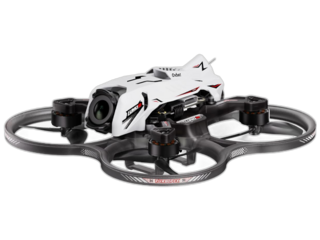

The Oxbot Lumo18 1.8-inch O4 HD Digital Drone is a compact yet powerful FPV (First-Person View) drone designed for both indoor and outdoor flying. With a 1.8-inch (45.7 mm) frame size, it’s small enough to fly in tight spaces while still offering impressive agility and stability. The drone features O4 HD digital video transmission, delivering crystal-clear, low-latency footage for an immersive flying experience.
Equipped with ExpressLRS (ELRS) compatibility, the Lumo18 ensures reliable long-range control and fast response times. It’s available in multiple configurations, including a Power ELRS version (without O4) and O4 Standard/Ultra-Wide versions for enhanced camera performance. The drone is lightweight yet durable, making it ideal for beginners and experienced pilots alike.
Perfect for freestyle flying, racing, or just cruising, the Oxbot Lumo18 combines cutting-edge technology with a sleek, compact design. Whether you're a hobbyist or a competitive pilot, this drone offers a thrilling and high-performance flying experience.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Lumo 18 in particular but at least we know they do distribute Oxbot.

Where to buy


Wingspan: 85mm (3.3 in)
Length: 85mm (3.3 in)

Weight: 63 g (2.2 oz)

  • Frame: OXBOT LUMO18 Frame
  • Wheelbase: 85mm (3.35 in)
  • Main Controller: AT32 F435
  • Motor Model: 1103 12000KV Brushless Motor
  • Flight Controller System: F435 2-3S 12A ELRS AIO
  • Power Connector: XT30
  • Bluetooth: Supported for flight controller tuning and meteor LED strip
  • Meteor LED Strip: Standard with 66 LEDs
  • Propellers: Gemfan 45mm-3
  • Supported Receiver: Built-in ELRS
  • Supported VTX: DJI O4 Air Unit
  • Flight Time: Approx. 4-8 minutes (depends on flight style and battery)
  • Recommended Battery: 2S LiPo (450 mAh - 850 mAh)
  • Maximum Supported Battery Compartment Size: 80mm(L) x 18mm(W) x 12.5mm(H) (3.15 in x 0.71 in x 0.49 in)
  • Maximum Supported Battery Strap Size: 80mm(L) x 18mm(W) x 17mm(H) (3.15 in x 0.71 in x 0.67 in)
  • Tuning Method: Supports Wireless Tuning via APP / Wired Tuning via USB
  • Weight: 63g±2 (without battery) (2.22 oz±0.07)
