F16 1/5 3m from Pilot RC

Details

Pilot-RC is very pleased to announce the production of what is one of aviations most epic aircraft ever, the General Dynamics F16 Fighting Falcon.

They wanted this one to go above and beyond as a beautiful scale model. They found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.
The entire fuselage can be split, strategically placed between turbine and thrust tube, allowing for the entire fuselage to come apart with just five screws and two connectors for easy transport to and from the field.

Features:

  • Full composite construction, lightweight and strong
  • Two piece wing and two piece full flying stabiliser, both fully removeable
  • Easily detachable rudder for easy transport
  • Two piece fuselage, with the split strategically placed to allow daily removal of tail section for easy transport to and from the flying field
  • Easily detachable ventral fins, held in place with just two screws
  • Painted outside the mold so no seam lines

Pictures

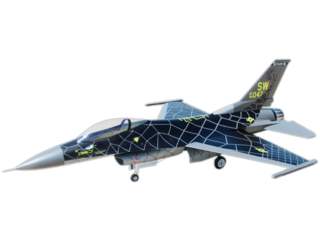

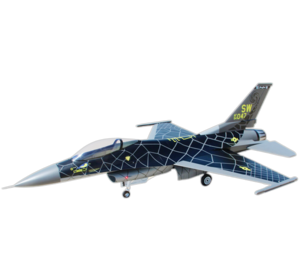

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 3060mm (120.5 in)
Length: 2115mm (83.3 in)

Weight: 22100 g (48.7 lbs)
  • Wingspan: 2115 mm (83.3″
  • Length: 3060 mm (120.5″)
  • Weight: 22.1 kg (46.8lbs) with Vector Thrust pipe

Require Hardware

  • Turbine: 200-320N
  • Servos: (x9 + 2 optional)
    • x5 super high torque (minimum 35kg) // Uses x1 per aileron, x1 per elevator, x1 on rudder
    • x2 middle size servo, 35 x 15 x 30mm (minimum 16kg) // Uses x1 for nose gear door and x1 for steering
    • x2 standard size servo // Uses x2 for main gear doors
    • +2 super high torque (minimum 35kg) if installing vector thrust pipe

Basic Setup

  • Control throws:
    • Aileron: 45mm up / 45mm down – 40% Expo
      Rudder: 50mm left / 50mm right – 50% Expo
    • Elevator: 35mm up / 35mm down – 45% Expo
      Measured from the front of the leading edge of the elevator.
  • Vector thrust if installed: Maximum deflection – 50% Expo
  • The CG is 270mm from the front leading edge on the root of the wing
