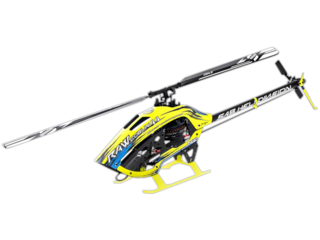

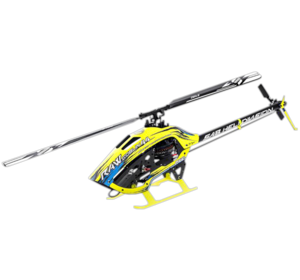

Goblin Raw 420 from Sab Avio

Details

Features:

  • Direct Drive Motor (Competition motor included)
  • New S Line blades (420mm and 70mm included)
  • Quick release battery tray with built-in connectors
  • 10mm one way bearing integrated into the motor
  • Zytel HTN resin blade grip arms (sacrificial)
  • The canopy does not need to be removed to replace batteries
  • Neon yellow color for best visibility (available initially in yellow only)
  • Carbon fiber molded boom as an option also available

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin Raw 420 in particular but at least we know they do distribute Sab Avio.

Wingspan: 935mm (36.8 in)
Length: 935mm (36.8 in)

Weight: 1000 g (2.2 lbs)
  • Airframe weight: 1000 grams (with motor and blades)
  • Main rotor diameter: 935mm (with 420mm blades)
  • Main blade length: 380 to 420mm
  • Tail rotor diameter: 190mm (with 70mm tail blades)
  • Tail blade length: 60 to 70mm
  • Cyclic servos: Micro size 23mm
  • Tail servo: Mini size 35mm
  • Maximum battery size: 40x54x135mm
  • Recommended battery: 6s 2200/2700 mAh
  • Recommended battery weight: 350-420 grams
  • Recommended ESC: 60 ( 70-80A is required only for hard 3D flight with temperatures above 30°C)
  • Tail rotor ratio: 4:1
  • Main shaft: 8mm
  • Tail shaft: 5mm

Other Variant(s)
