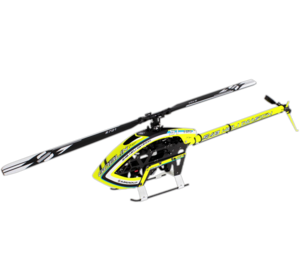

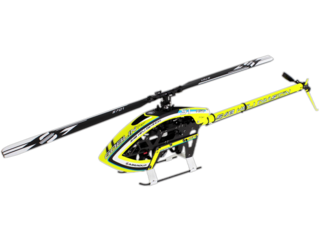

ILGoblin Raw from Sab Avio

Details

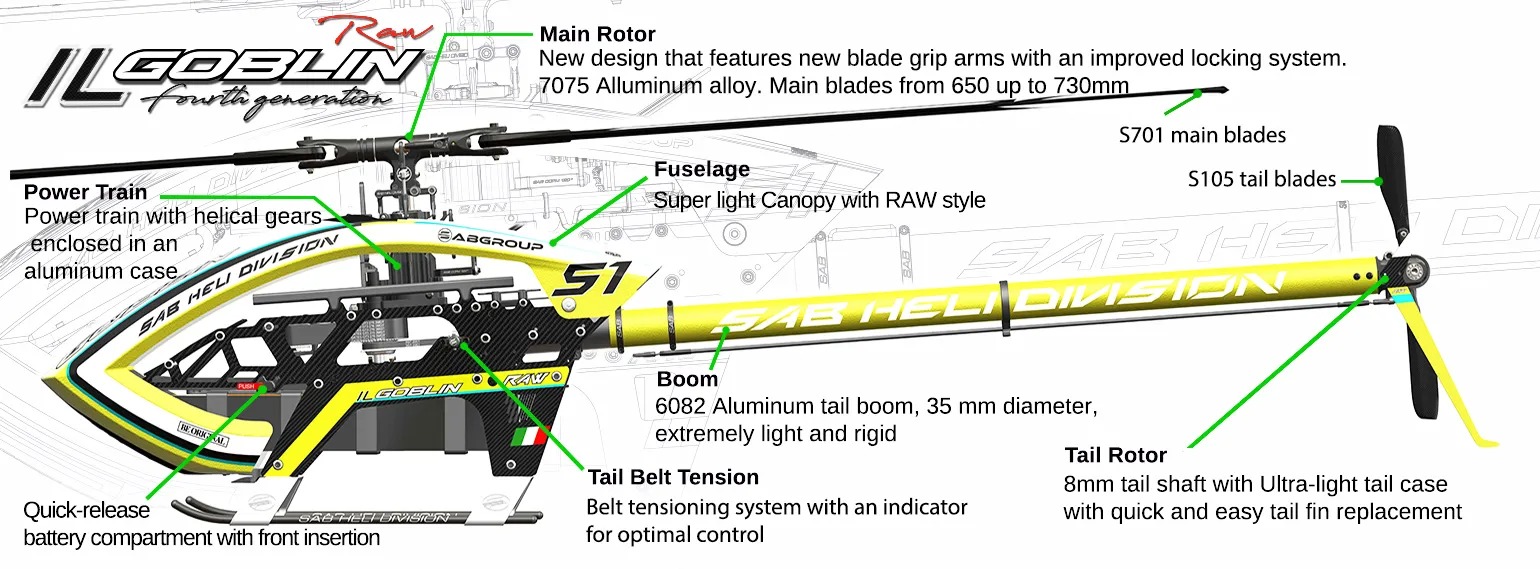

The SAB ILGoblin RAW is the ultimate high-performance helicopter for pilots who demand precision, agility, and cutting-edge design. Engineered by SAB Helicopters, the Goblin RAW is built to push the limits of 3D aerobatics and deliver an unparalleled flying experience.

Features:

  • Ultra-Lightweight & Rigid Airframe – Designed with high-strength carbon fiber and aluminum to maximize durability while keeping weight to a minimum.
  • Direct Drive Motor System – Eliminates belts and pulleys, providing increased efficiency, power transfer, and lower maintenance.
  • Low-Drag Canopy-Free Design – The sleek, aerodynamic frame reduces drag and enhances cooling, ensuring optimal performance.
  • Optimized Head Geometry – Delivers ultra-precise cyclic and collective response for superior control in extreme maneuvers.
  • Adjustable Battery Tray System – Allows for easy CG tuning and quick battery swaps.
  • Exceptional 3D Performance – Engineered for aggressive flight styles with maximum power and precision.

Whether you're a hardcore 3D pilot or a speed enthusiast, the SAB Goblin RAW delivers unmatched performance and reliability. Experience next-level flight dynamics with this cutting-edge machine.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1576mm (62 in)
Length: 1320mm (52 in)

Weight: 2122 g (4.7 lbs)
  • Aiframe weight: 2122 gr (no blades, no battery, no electronics)
  • Main rotor diameter: 1576 mm (with 700 mm main blades)
  • Main blade length: 650 to 730 mm
  • Tail rotor diameter: 292 mm (with 110 mm tail blades)
  • Tail blade length: 105 to 115 mm
  • Cyclic Servos: Standard size 40 mm
  • Tail Servo: Standard size 40 mm
  • Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
  • Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
  • Main shaft: 15 mm, Tail shaft: 8 mm
  • Aluminum tail boom
  • Typical motor: 12S, 480/560 KV
  • Battery room: 50x60x300 mm
