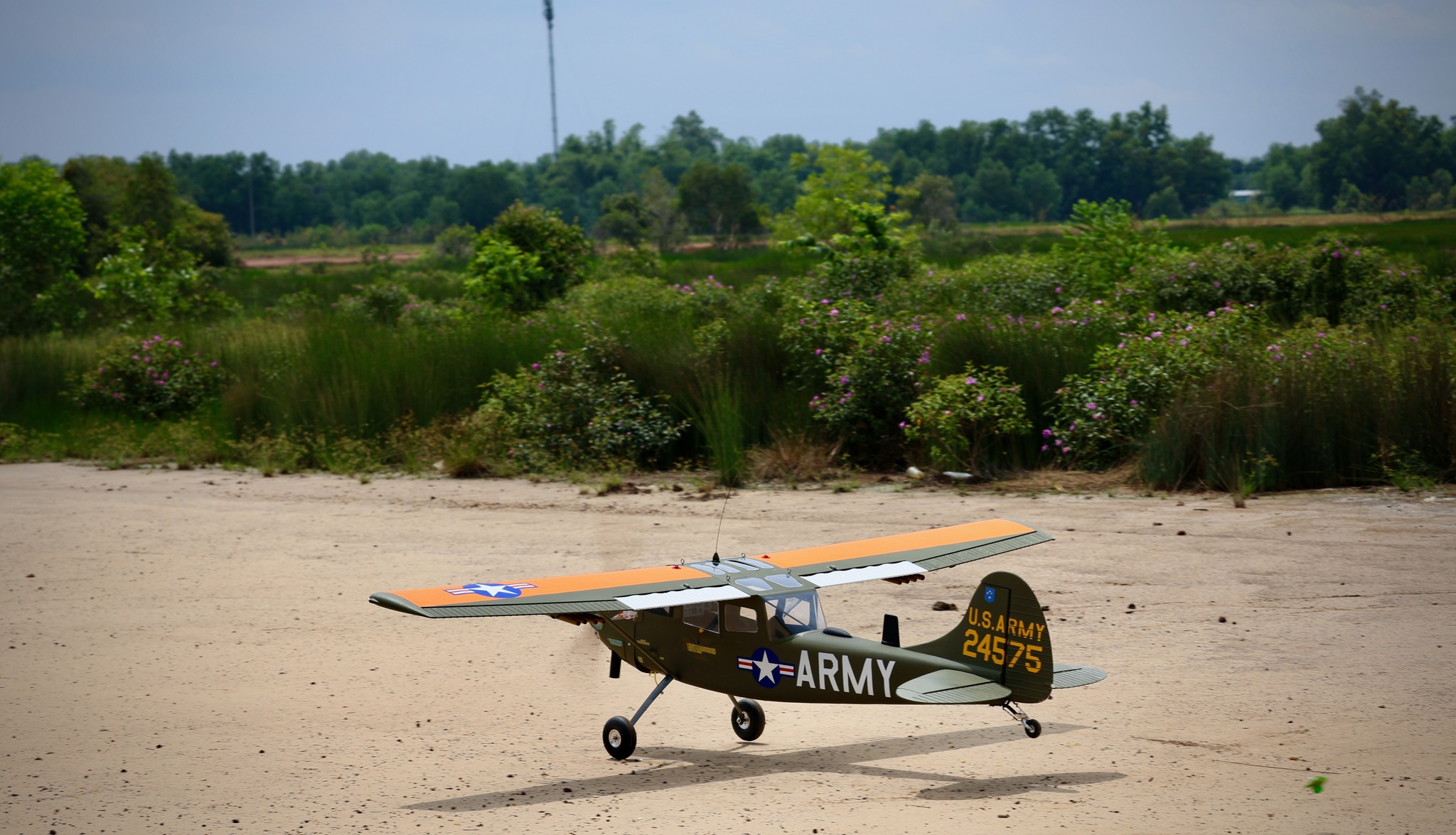

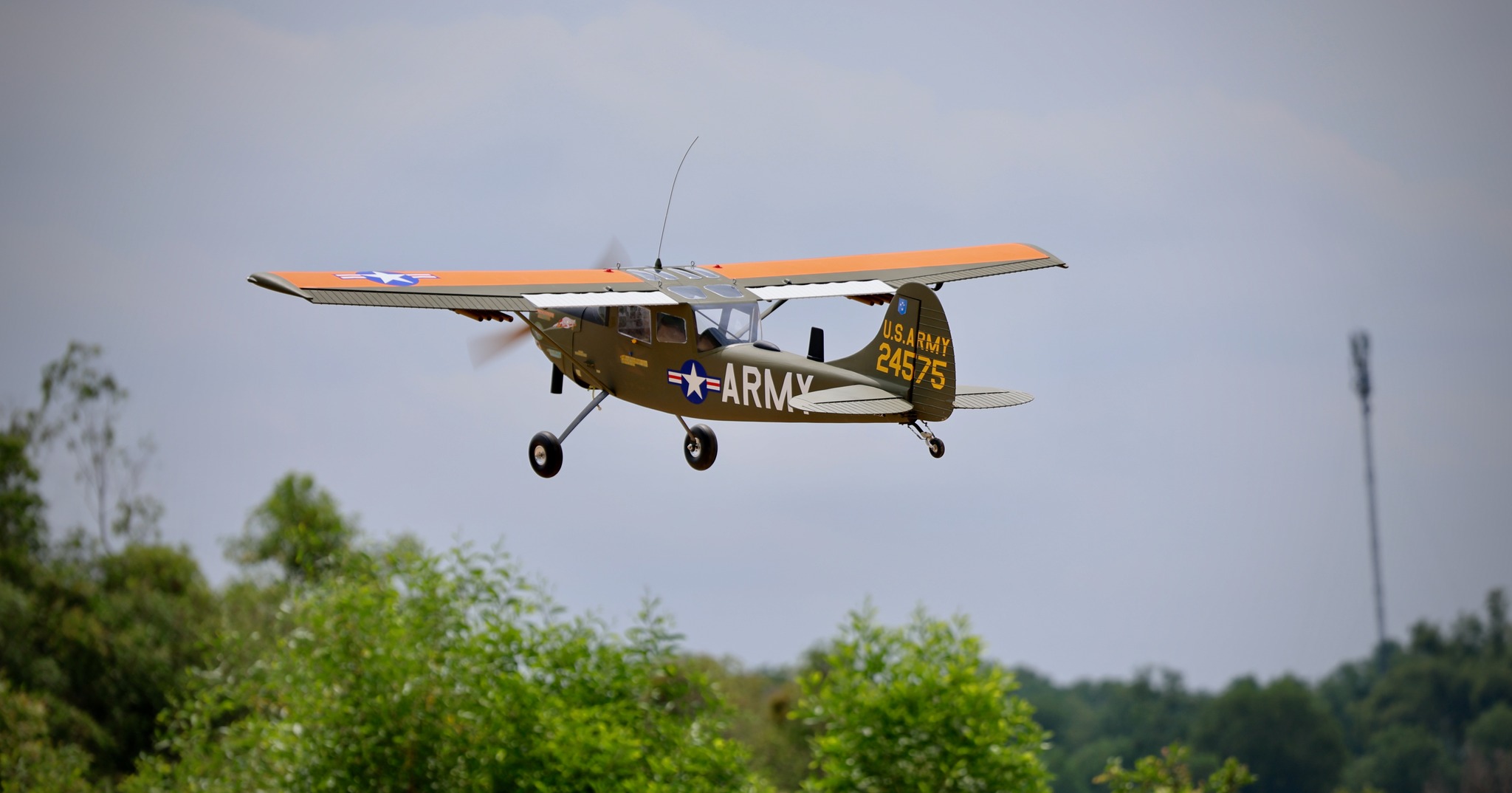

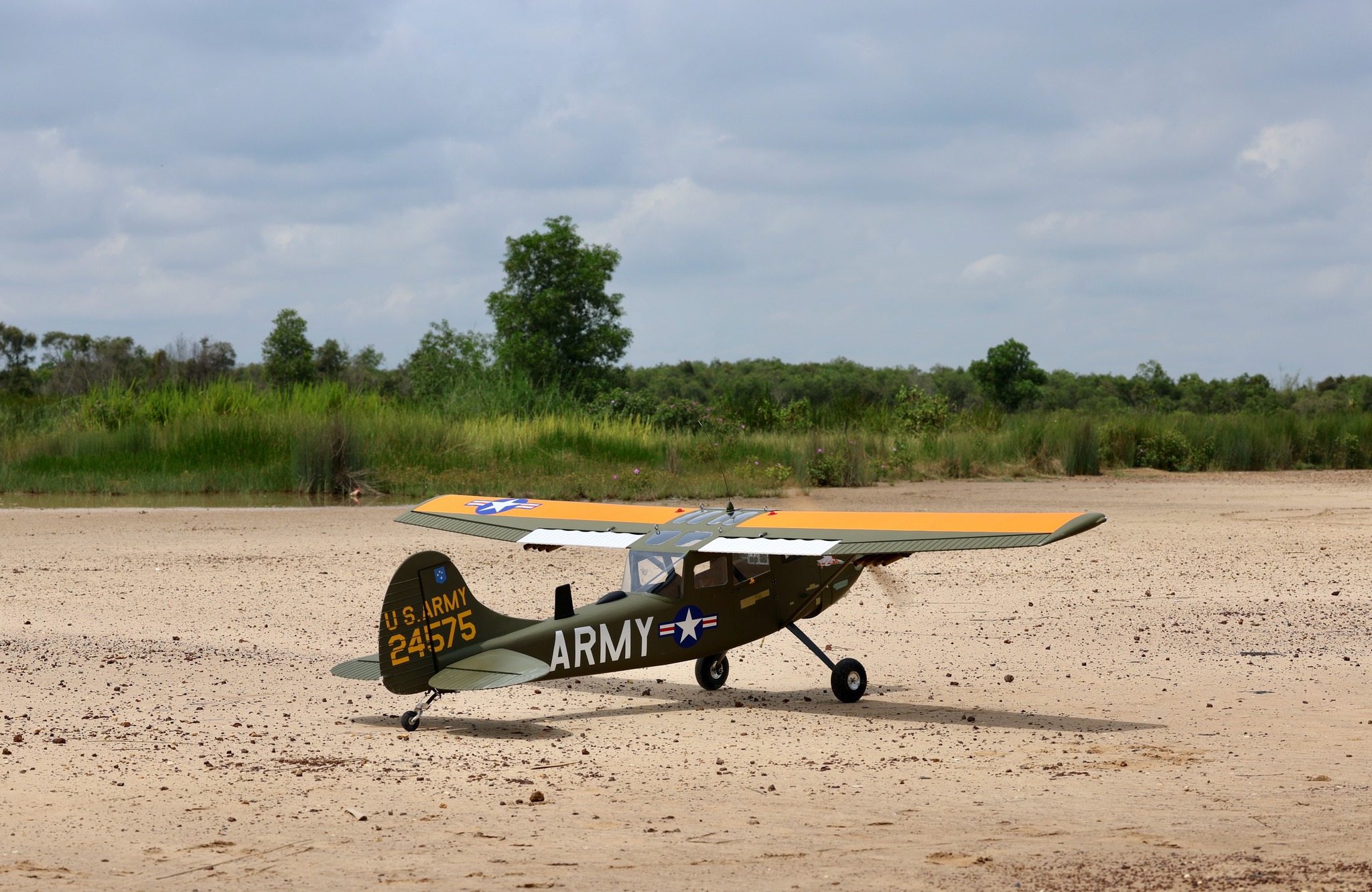

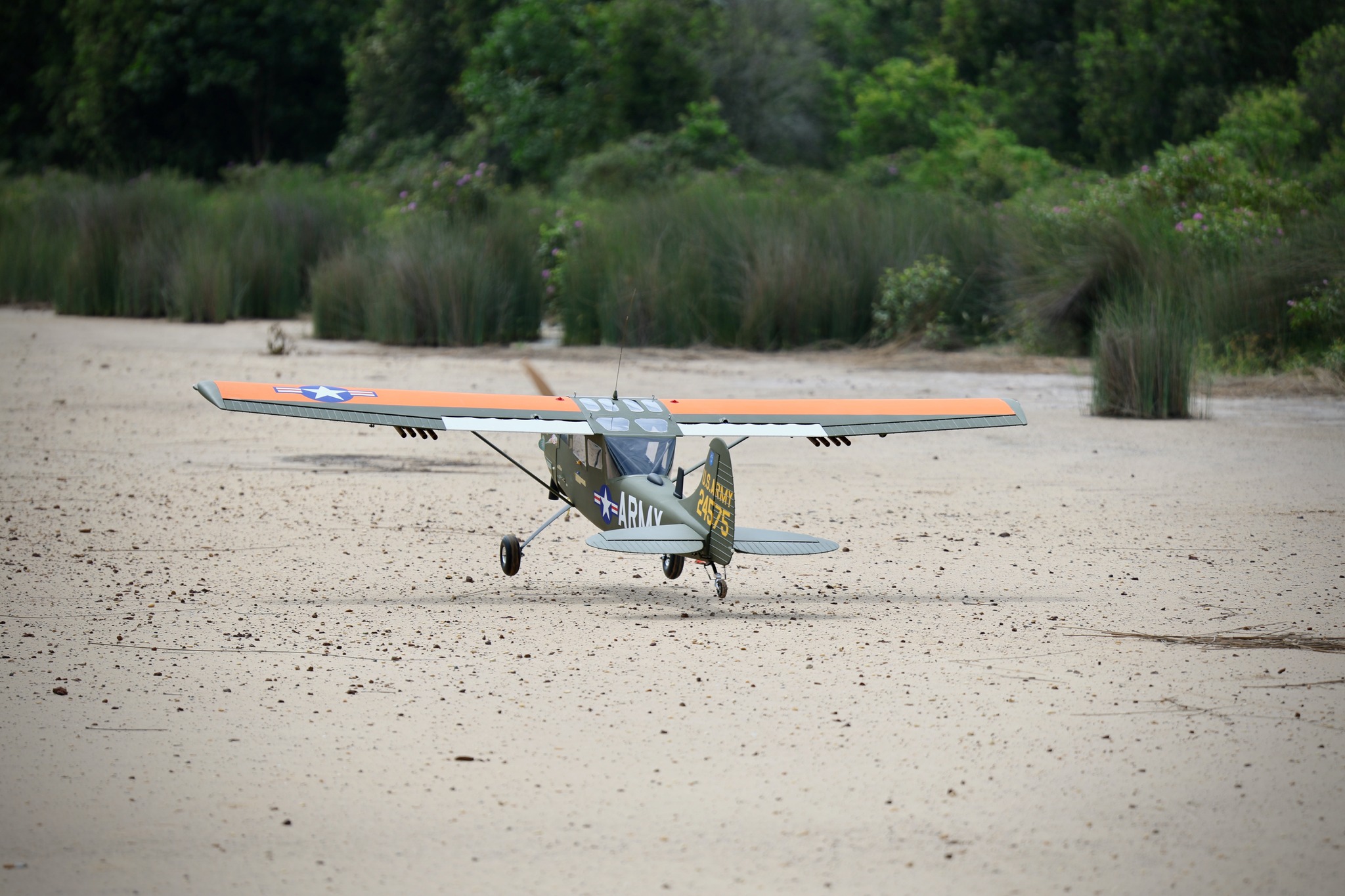

Cessna L-19 Bird Dog 122 from Seagull Models

Details

  • High quality balsa and balsa plywood, these make light weight construction and carbon fiber structure provides a lightweight airframe that is ridged and strong in all the right places.

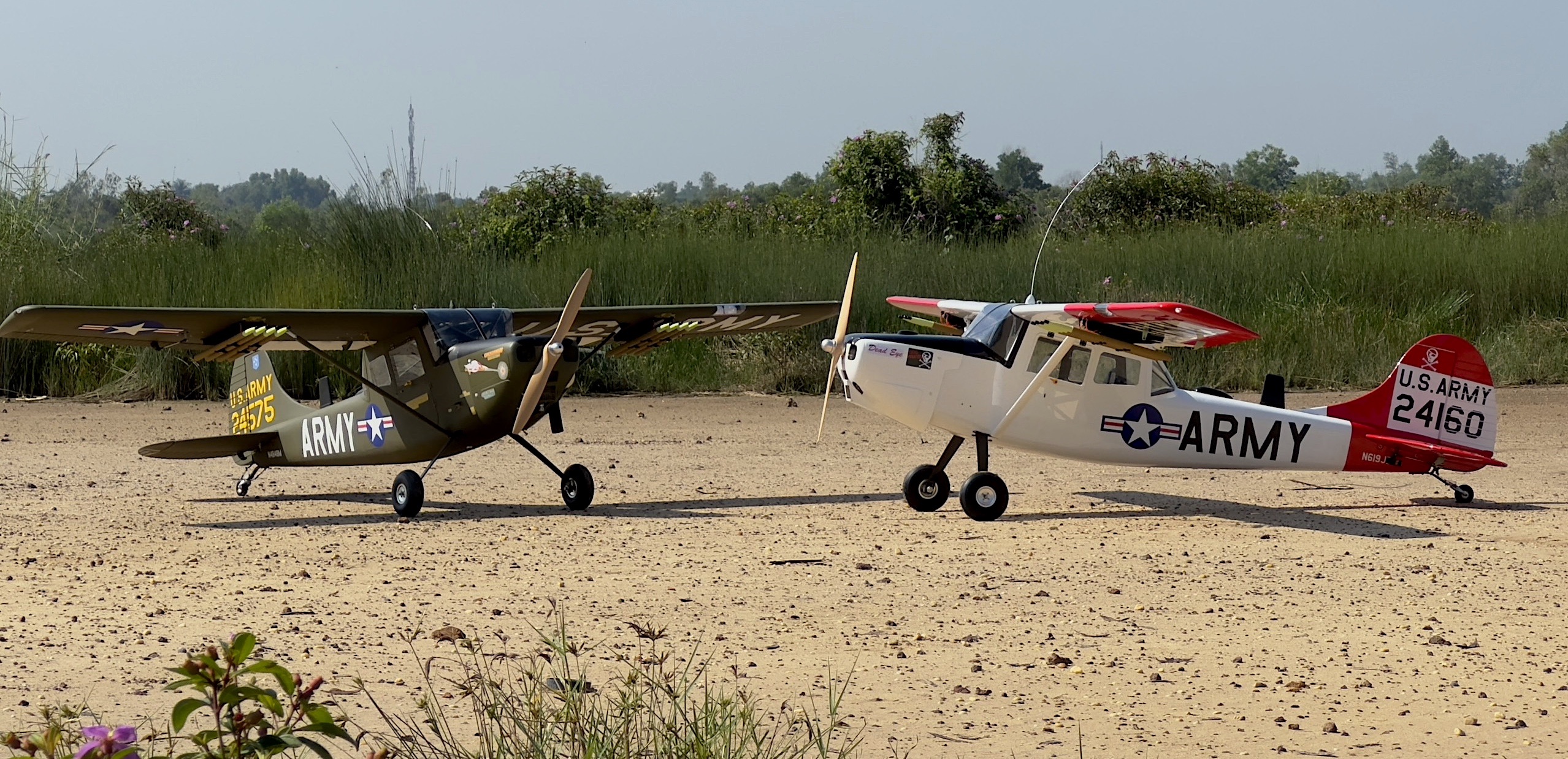

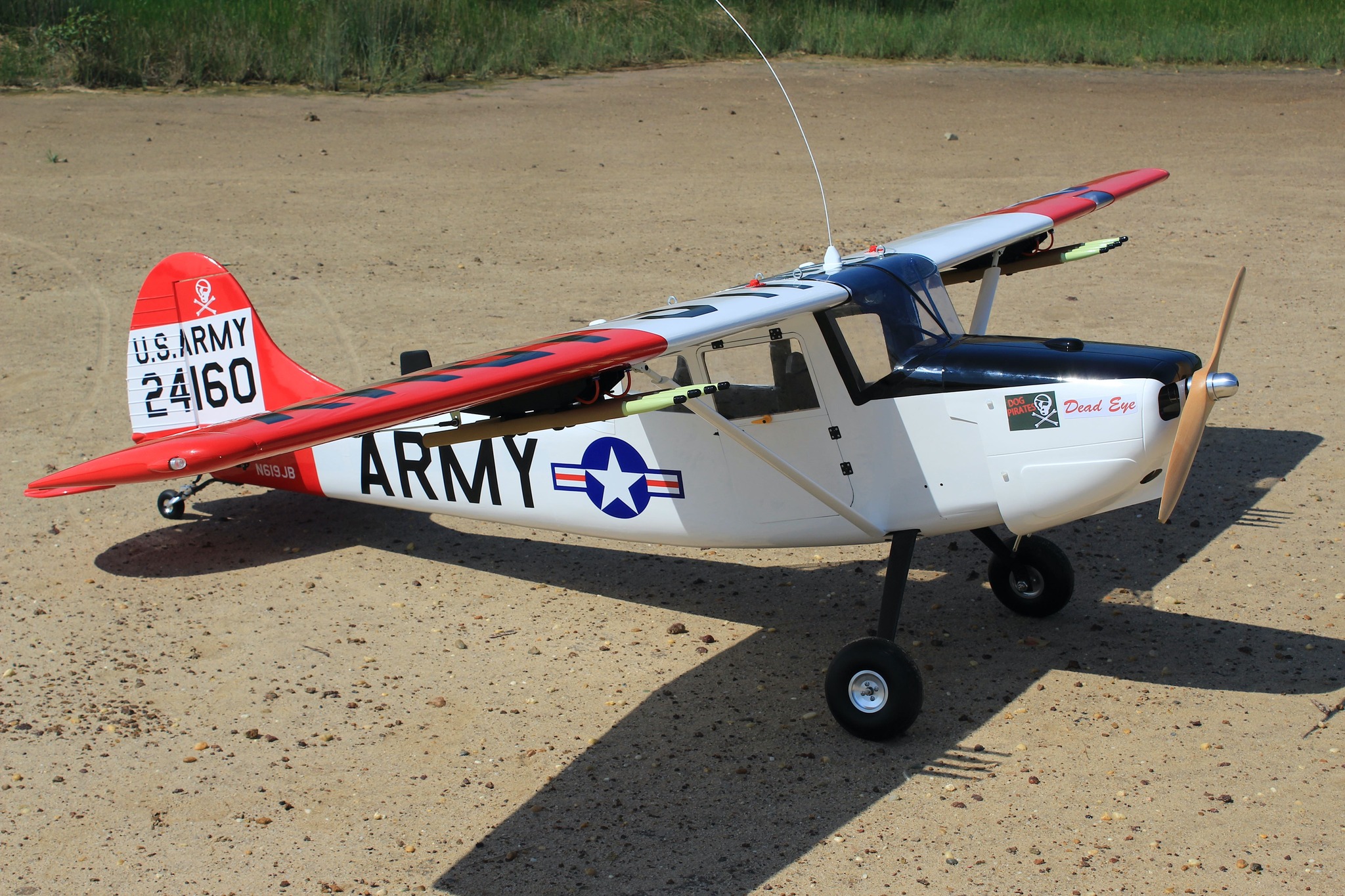

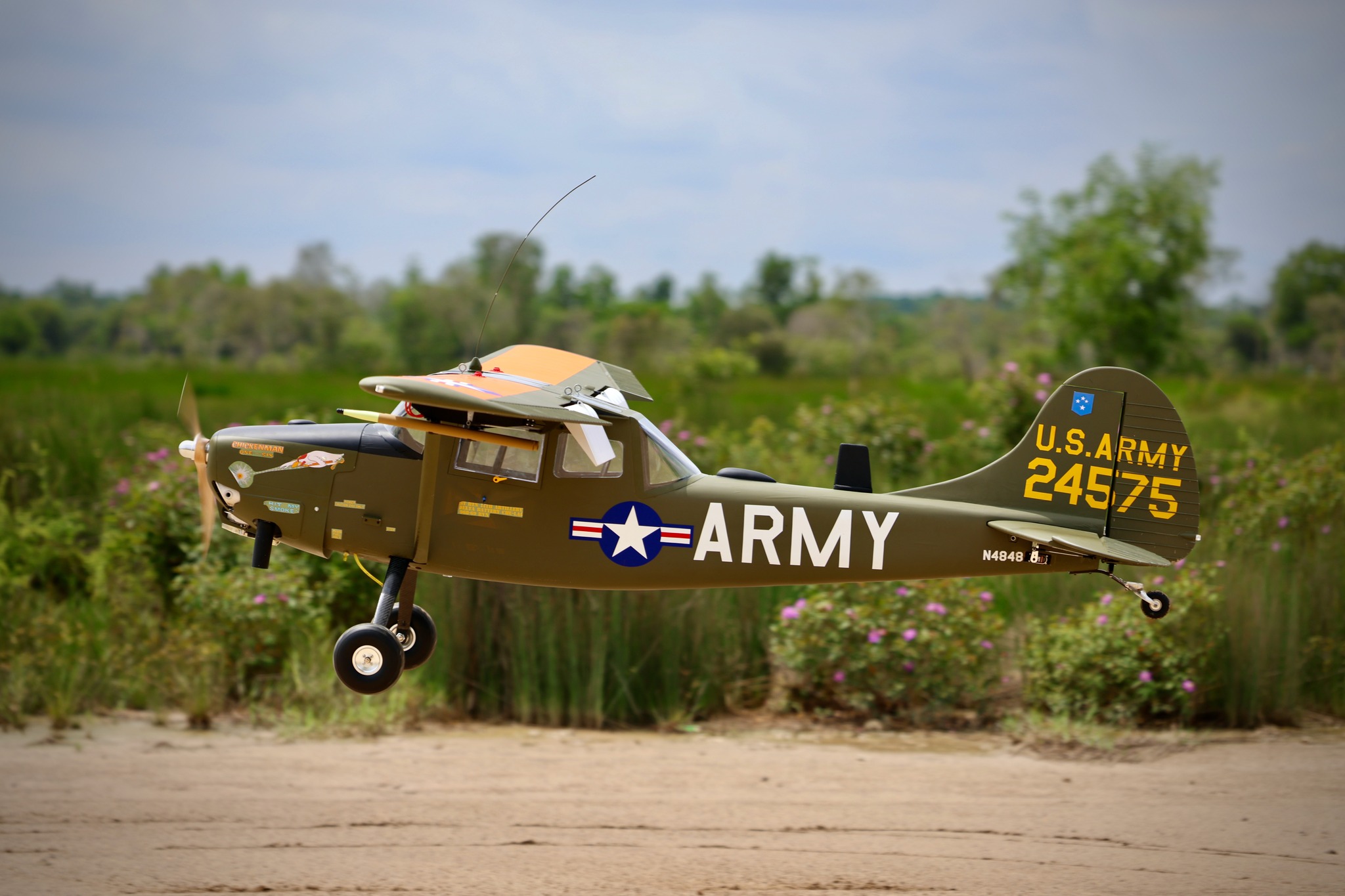

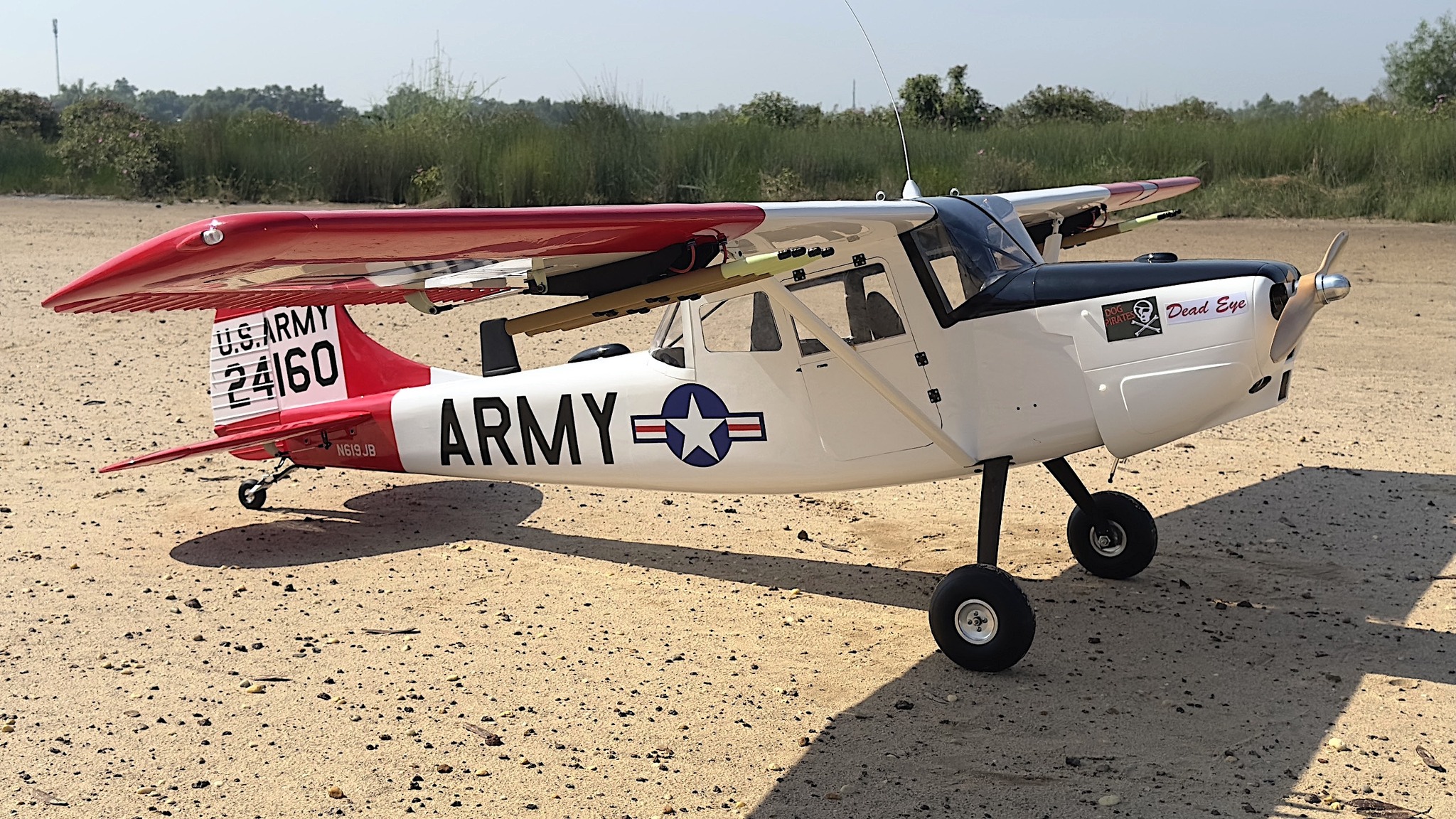

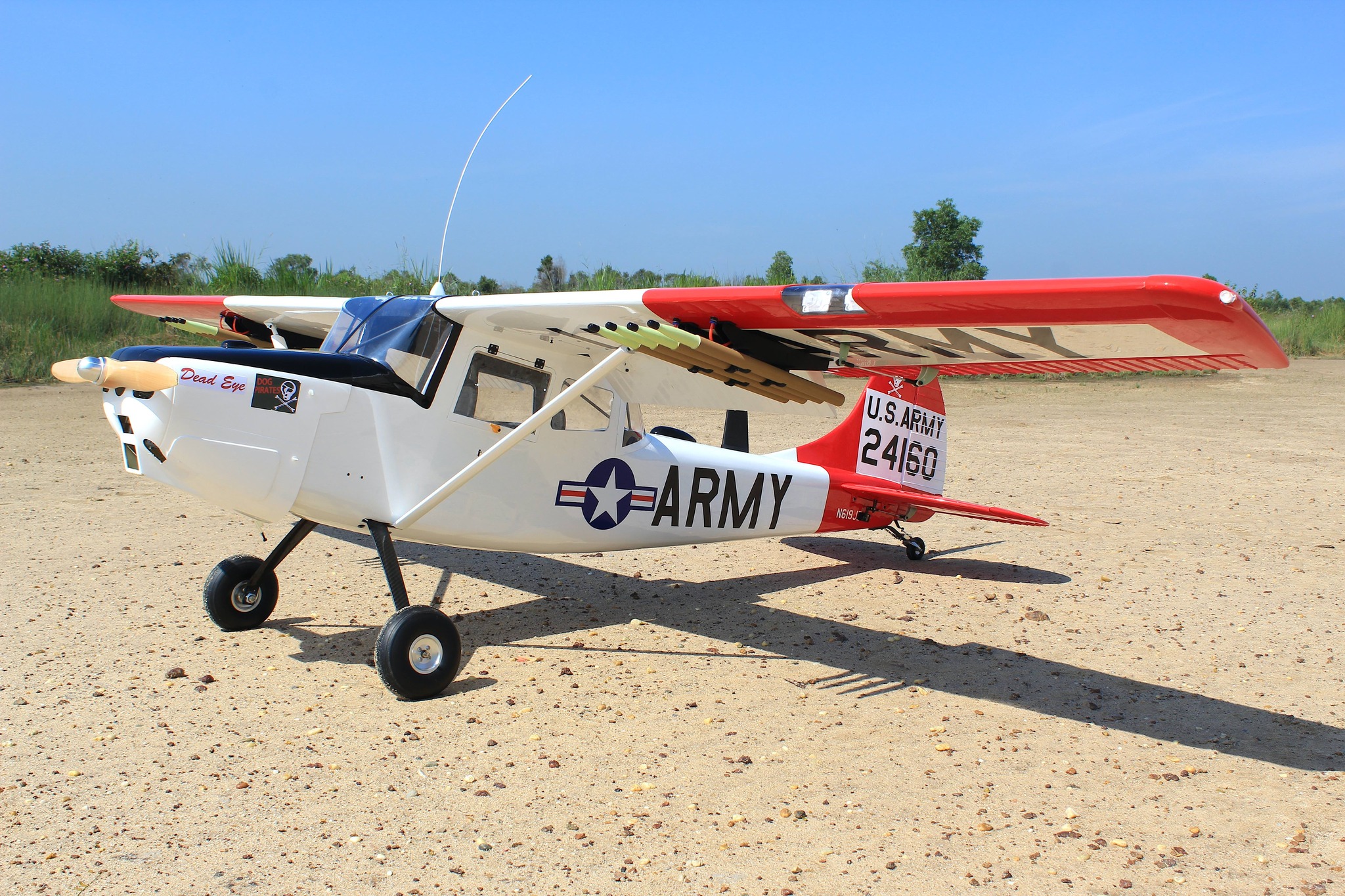

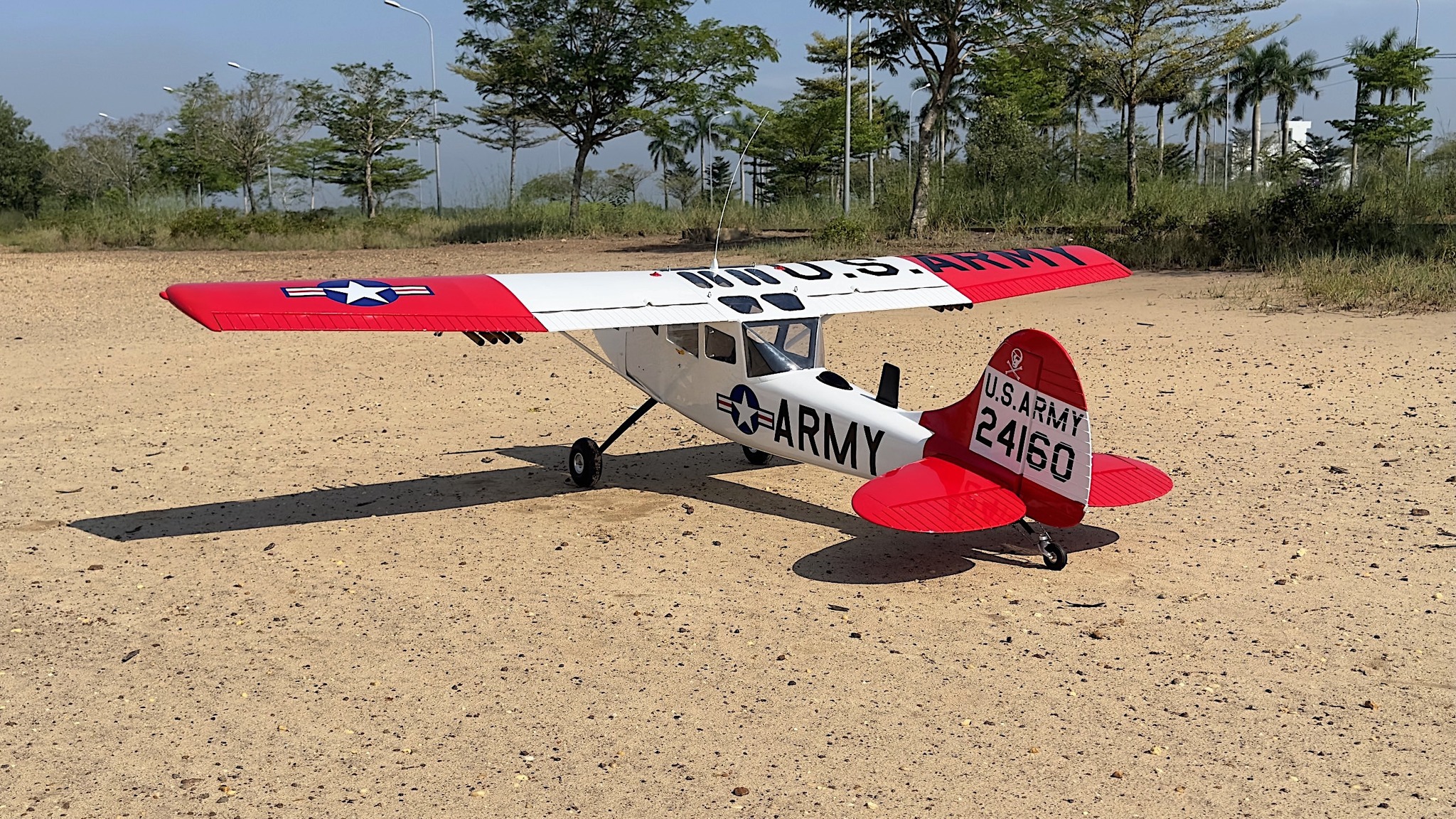

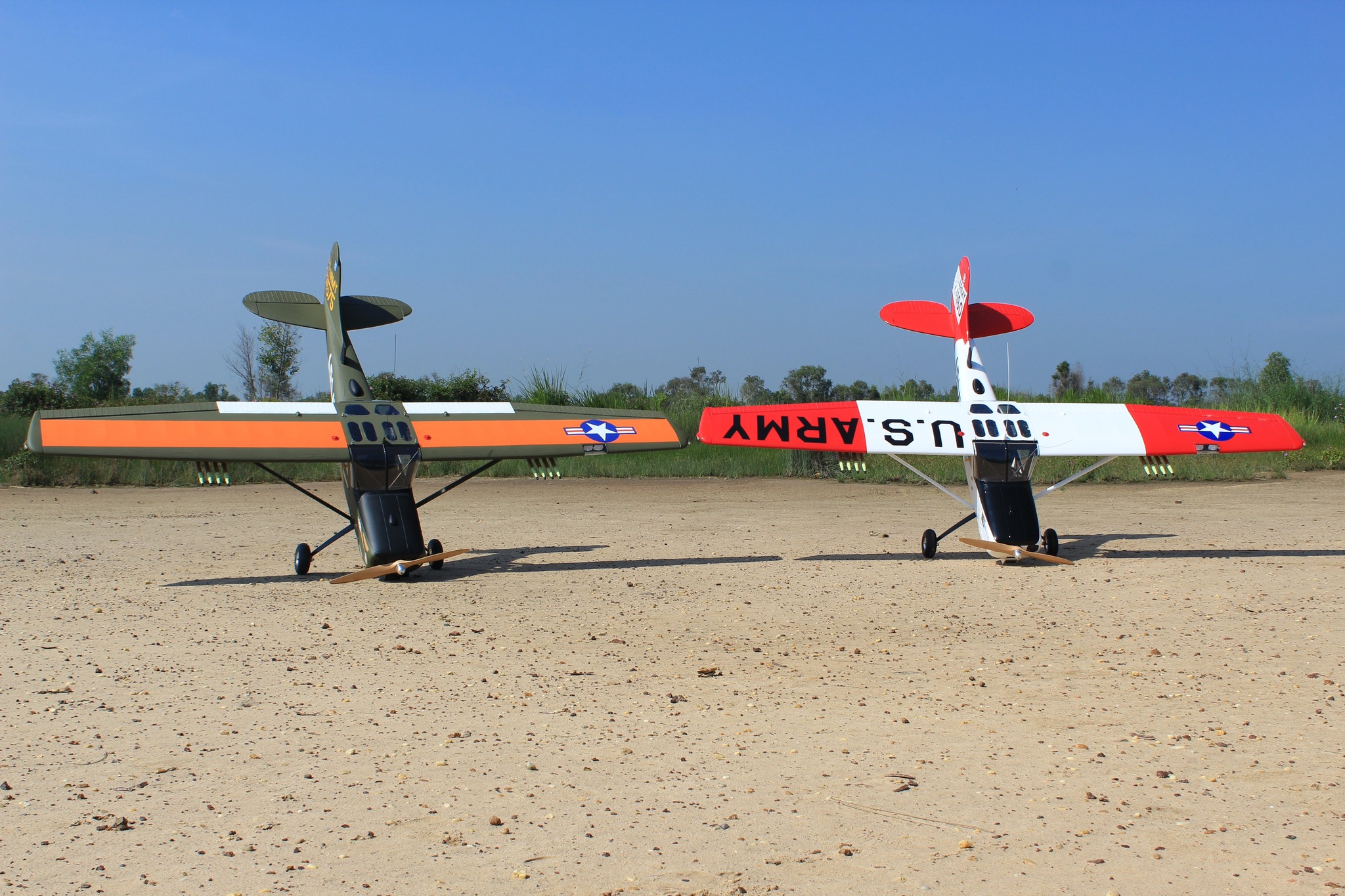

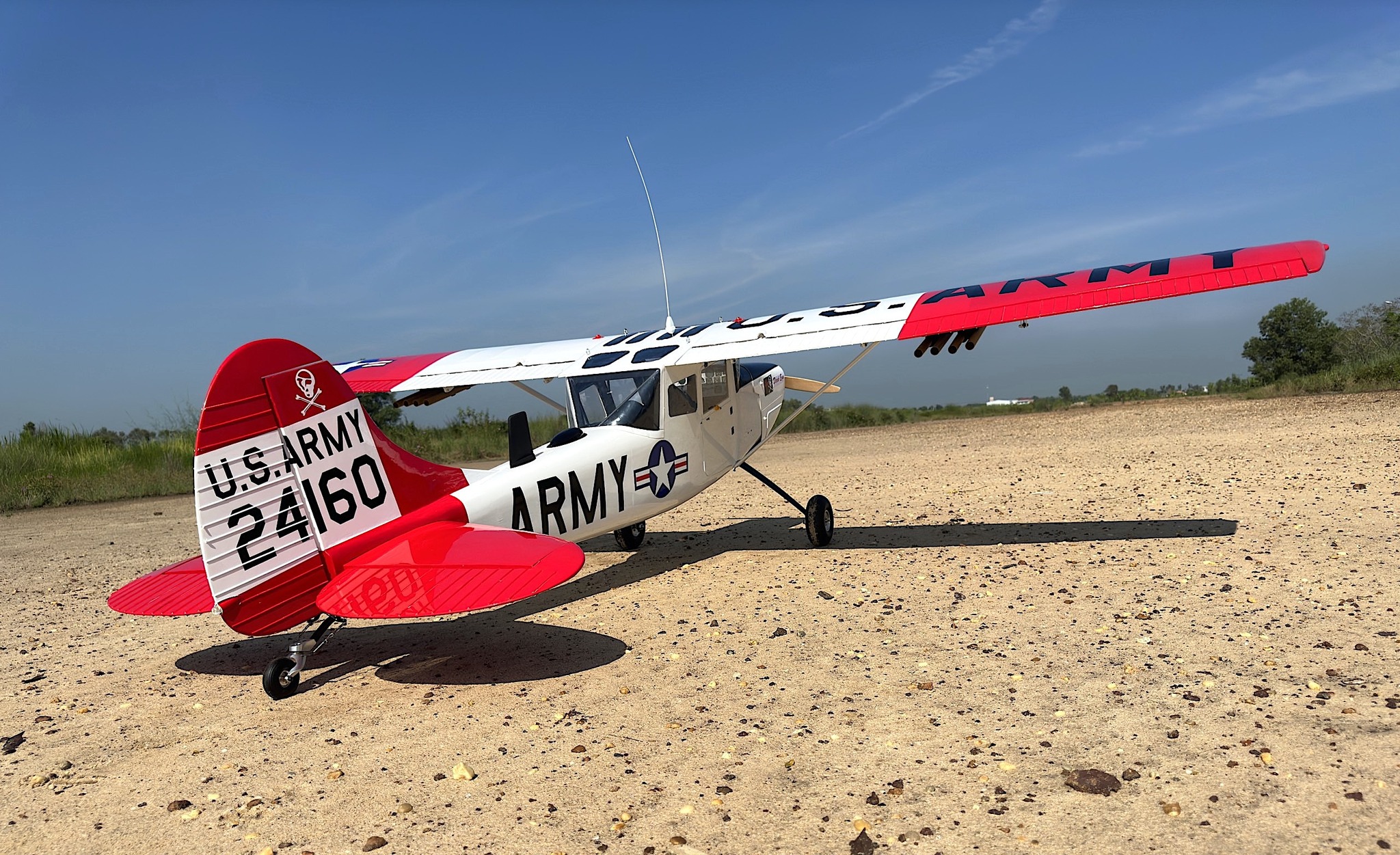

  • Factory covered in genuine Oracover film with Eye-catching Realistic gradated camouflage trim scheme Bird Dog "Chicken man”, and White/ Red trim scheme “Dead Eyes”
  • Plug-in wings with fast-connect struts make it easy to transport and fast to assemble with Aluminum airfoil wing struts.
  • High quality of 700ml Transparent RC Fuel Tank w/Clunk Weight, Fill & Vent nipples.
  • Including PU Rubber Wheels 6” CNC Aluminum Hub.
  • Incredible value with Carbon Fiber Landing Gear
  • High Quality of Carbon Fiber Tube φ25 for wing set and Elevator φ12
  • CNC Aluminum 3D tail gear with PU Rubber Wheel Alu Hub 2.25”
  • Includes CNC Scale aluminum spinner hub.
  • Including painted ABS Plastic L-Shaped bar rod making scale airlerons, flaps, elevators and rudder for Giant Scale Seagull Cessna L-19.
  • Turnbuckle-style pushrods, ball links and turnbuckle wrench included
  • Detailed cockpit area features, instrument decal and crystal-clear windshield and windowns. The scale cockpit door is open so let’s go inside to cabin and instrument panel.
  • Functioning flaps allow for an enhanced flight envelope with scale flap hinges
  • Airfoil shaped tail surface for elevators and rudder
  • Including Sets Intelligent Navigation LED Light Systems for strobe right/ left light and landing/taxi lights and also tail Navi light.
  • Removable antenna for easy access and transportation
  • Painted fiberglass cowl.
  • Including scale smoke marking rockets
  • Standard-quality hardware included

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

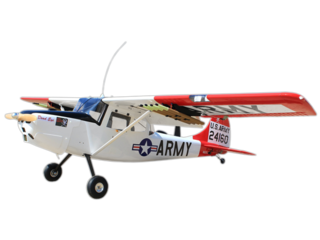

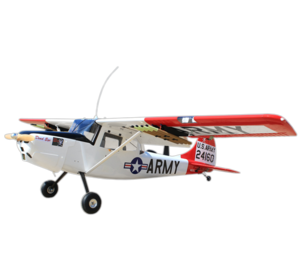

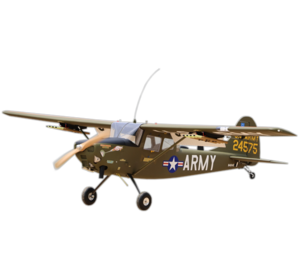

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 3100mm (122 in)
Length: 2158mm (85 in)

Weight: 16500 g (36.4 lbs)
Wingspan 3100 mm
Flight weight approx. 16500 g
Control H,S,Q,M
Length 2158 mm
Fuselage Wood
Wings Wood/rib construction
Rec. engine 70 - 125cc
Drive Type: Combustion

Other Variant(s)
