AR Wing Pro from SonicModell

Details

  • The world's first FPV wing with dedicated front camera bay and main hatch bay for the DJI HD air unit system, no need to cut or tinker to fit the DJI system.
  • Aerodynamic FPV pocket on both sides of the fuselage, with highly efficient NACA air cooling system to ensure the operation of FPV gears in perfect condition.
  • Molded with tough EPP material, built-in CF spar for enhancement, super stable flight ability and impact resistance.
  • Additional front and side camera bay and main hatch compatible with all FPV and AIO cameras on the market.
  • Nasal camera slot compatible with all HD cameras (for Gopro, DJI, Runcam, etc.) on the market.
  • Several tunnels inside all the equipment bays, easy to install the wire between each bay.
  • - Removable main wing and wing tip, glue-free assembly, portable for outdoor flight.
  • The CF rod integrated into the fins will give precision and crisp action to your inputs.
  • High precision ball linkage control system brings agile and quick response in control.
  • The specially designed "integrated servo arm" structure will protect your servo arm from impact.
  • Large battery bay for extended flight time and more parts for various flight controllers.
  • Decent back bay for ESC, isolate interference from other FPV equipment.
  • Plate integrated inside the fuselage for an additional improvement.
  • Additional DIY CA hinges will give you more rigid and agile control.
  • Optimized air cooling design will protect your equipment from overheating.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

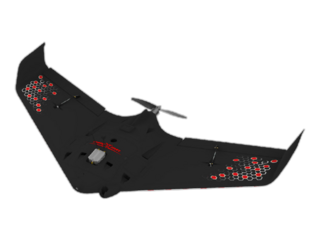

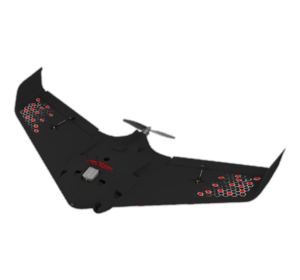

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the AR Wing Pro in particular but at least we know they do distribute SonicModell.

Wingspan: 1000mm (39.4 in)
Length: 450mm (17.7 in)

Weight: 500 g (1.1 lbs)
  • Material: high quality EPP
  • Wingspan: 1000mm (39.37 '')
  • Length: 450mm (17.71 '')
  • Wing area: 18dm²
  • weight: 500g

Recommended configuration of the Sonicmodell Power Combo:

  • Motor: 2216-1400KV
  • ESC: 40A with / 5V 3A BEC
  • Servos: 2pcs 9g metal gear servo
  • Propeller: 2 blades 8x5
  • Recommended battery: 4S 3200-3500mAh Lipo, ZOHD Lionpack 18650 4S2P 7000mAh

Recommended flight capacity:

  • Min. Recommended speed: 31 km / h
  • Max. Speed ​​(with SM power combo): 130 km / h
  • Cruise speed (with Sonicmodell power combo): 75/80 km / h at 5.5 A
  • Max. Speed ​​tested without structural failure: 220 km / h without structural damage or torsion on the elevons
  • Max. Recommended take-off weight (with SONICMODELL power combo): 1425 grams
  • Reflex On Elevons: 1.5-2mm at level
  • Recommended Max. Throws: 12 mm
