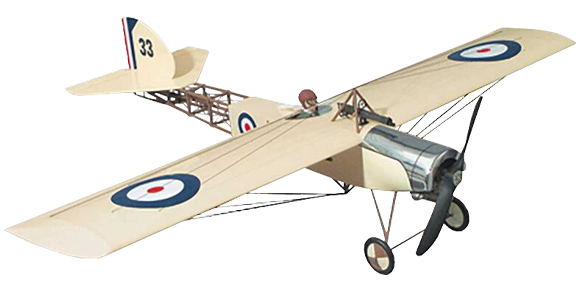

Elder 40 from Top Flite

Details

The Elder 40’s legacy began in 1985, when it was first introduced by Top Flite. Modelers immediately took to this nostalgic-looking kit, and Elder 40s filled the skies at flying fields everywhere. Now Top Flite is bringing this classic back, with one major distinction: Gold Edition CAD engineering, for the most straightforward, most accurate assembly possible. The result is a scale replica of an aviation legend that's a joy to build, as well as a pleasure to fly!

Features:

  • Gold Edition CAD engineering.
  • An Ideal Second model, can be flight ready in just a few weekends.
  • Features assembly aids such as pre-shaped leading and trailing edges and built-up wing tips.
  • Wings are one-piece, all wood with ailerons and plywood wing joiners.
  • Spacious radio compartment allow easy radio gear installation and quick fuel tank access.
  • Open rear section of the fuselage, with its trusswork and gussets, further exemplifies the planes vintage heritage.
  • Pre-formed, .12" (3mm) 2-piece wire landing gear provides excellent ground handling
  • Wooden parts are included for creating the flying wire braces shown on the box, used for attaching either elastic cord (not included) or for added realism, metal wire with miniature turnbuckles.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1651mm (65 in)
Length: 1257mm (49.5 in)

Weight: 3175 g (7 lbs)
  • Wingspan: 1651 mm (65")
  • Wing Area: 50 dm² (778sq in)
  • Weight: 2.495-3.175kg (5.5-7.0lb)
  • Wing Loading: 50-63 g/dm² (16.3 - 20.7oz/sq ft)
  • Length: 1257 mm (49.5")
  • Airfoil: Flat bottom
  • Center of Gravity: 89 mm (3½") Back from the wing's leading edge at the fuselage sides.
  • Control Throws: Low Rate   /   High Rate
    • Ailerons: Up & Down 6 mm (¼") 9.5 mm (3/8")
    • Elevator: Up & Down 11 mm (7/16") 16 mm (5/8")
    • Rudder: Right & Left 13 mm (½")  19 mm (¾")
  • Incidence
    • Engine Down Thrust: 5°
    • Engine Right thrust: 2°
    • Wing: 0°
    • Stabilizer: 0°
