Red Bull Edge 540 from Staufenbiel

Details

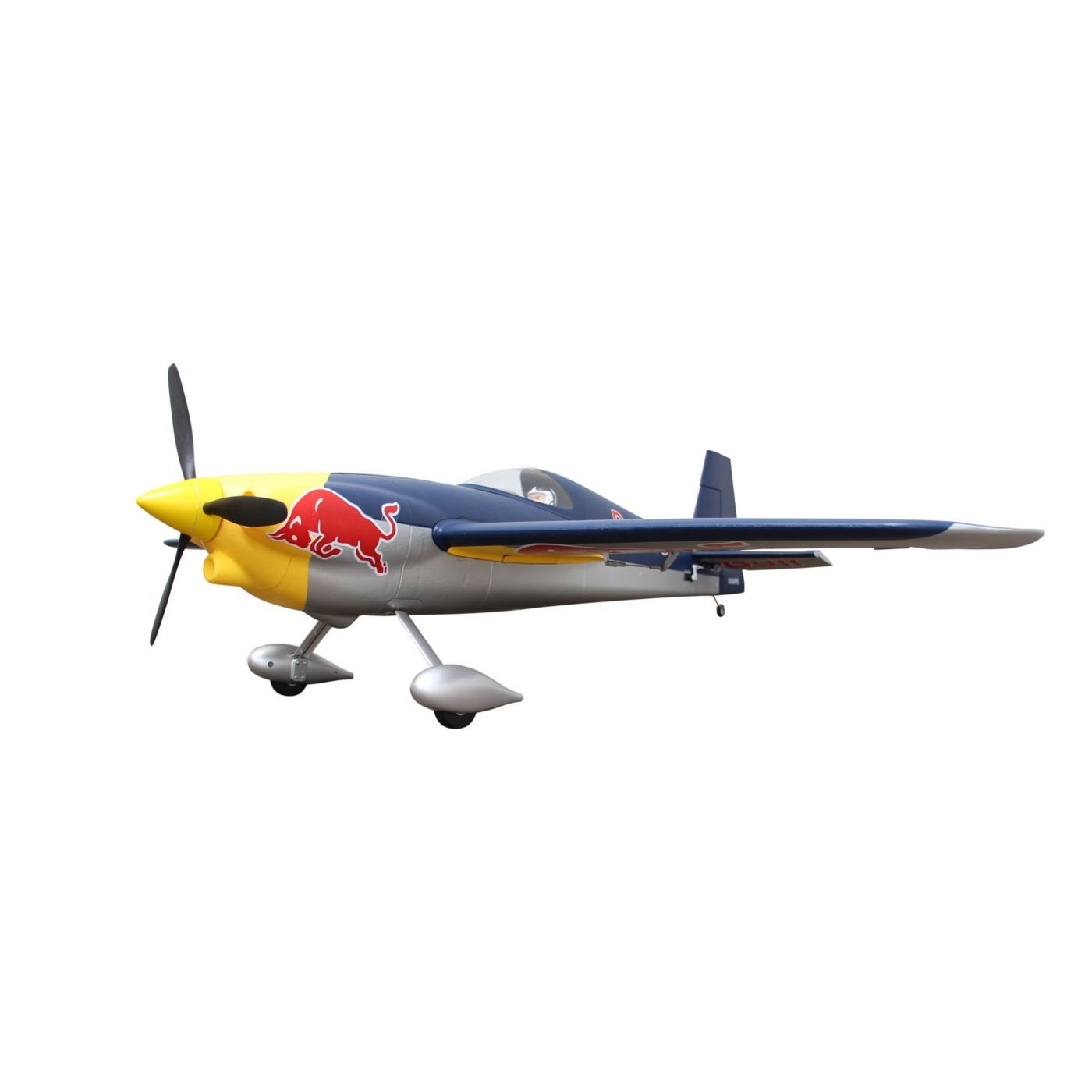

The Staufenbiel™ Red Bull Edge 540 1300mm is a high performance replica of the unlimited-class Edge 540 aircraft flown at air shows and in international unlimited racing by pilot members of the Flying Bulls. Its construction with Z-Foam™ material means that a beautiful appearance can be executed while a light wing loading and a remarkable level of durability are maintained. The use of composite reinforcement used throughout the airframe adds a high level of rigidity so that high-speed and aggressive maneuvers can be accomplished with greater precision. Like the full-scale Edge 540, this is a lean machine with lots of muscle under the hood. The 32-size outrunner brushless motor offers the perfect balance of speed and torque so whether you’re hanging it on a wing tip through the pylons or standing it on the rudder for a torque-roll, you’ll feel as if there’s performance to spare. Every electronic component, including the power system, is factory installed. Among those components is the industry-leading Spektrum™ AR636A receiver with built-in AS3X® technology. A benefit of its installation is that you’ll find the time needed to perfectly trim-out the Edge 540 is virtually nonexistent. That’s because the complex array of sensors and exclusive software used to develop the AS3X system in this Edge 540 has been specially tuned to make it fly like its on rails, right out of the box.

Features

  • Officially licensed Flying Bulls trim scheme
  • AS3X® technology for rock-solid flight stability
  • 4-channel control including a steerable tail wheel
  • Two-piece, plug-in wings and stabilizers with composite tube spar
  • Spektrum™ 6-channel AR636A DSMX® receiver (installed)
  • High-torque, 32-size brushless 760Kv motor (installed)
  • 60-amp brushless ESC w/3A SBEC (installed)
  • (4) Spektrum digital, metal-gear micro servos (installed)
  • Lightweight construction with durable Z-Foam™ material
  • Realistic spinner and 3-blade propeller
  • Clear canopy and cockpit detail including pilot figure

Pictures

Manual

Zivko Edge 540


Zivko Edge 540

The Zivko Edge 540 manufactured by Zivko Aeronautics is a highly aerobatic aircraft. Capable of a 420 degree per second roll rate and a 3,700 foot per minute climb rate, it has been flown to victory on the international Unlimited aerobatics circuit several times since the mid-1990s. A tandem-seat version is sold as the Edge 540T.

The Zivko Edge 540 is the most common aircraft used in the Red Bull Air Race World Series.



This article is an extract from the Wikipedia article "Zivko Edge 540", which is released under the Creative Commons Attribution-Share-Alike License 3.0

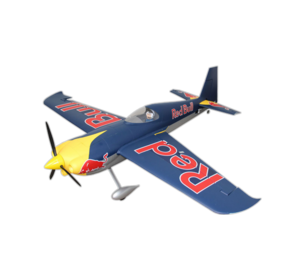

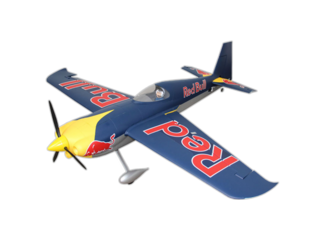

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Red Bull Edge 540 in particular but at least we know they do distribute Staufenbiel.

Where to buy

Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Germany
Schweighofer GE
check web site
Ship to: Germany
Austria
Schweighofer AT
check web site
Ship to: International
USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 1320mm (52 in)
Length: 1270mm (50 in)

Weight: 1680 g (3.7 lbs)
Aileron: Yes
Approximate Assembly Time: Less than 1 Hour
Approximate Flight Time: 6 minutes
CG (Center of Gravity): 3.15 in (80mm) from leading edge
Completion Level: Bind-N-Fly Basic
Elevator: Yes
Flaps: No
Flying Weight: 3.7 lb (1680g)
Landing Gear: Yes
Length: 50 in (1270mm)
Material: Foam
Minimum Required Radio: 4 Channel
Minimum Speed Control: 60A Brushless ESC
Motor Size: Brushless Out runner Motor 3948-KV760
Propeller Size: 13x5 3-Blade
Recommended Fuel: Electric
Recommended Motor Battery: 14.8V 2600mAh 25C Li-Po
Retracts: No
Rudder: Yes
Servos: 4x17g digital metal gear servo
Steering: Yes
Trim Scheme Colors: Licensed Red Bull trim scheme
Wingspan: 52 in (1320mm)

Variants

HSF2280
Red Bull Edge 540 (Blue-yellow)
