Falcon V2 from Titan Dynamics

Details

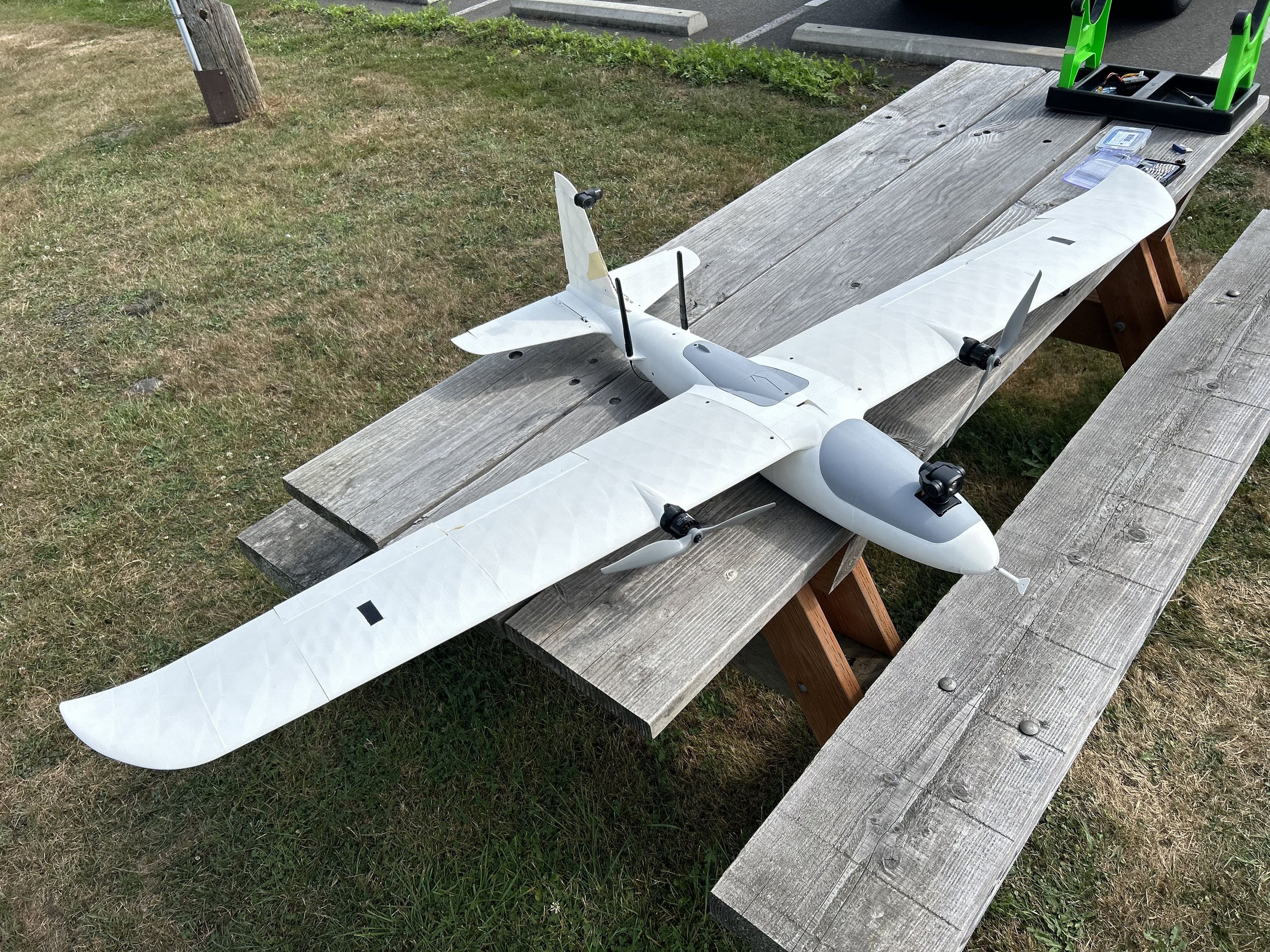

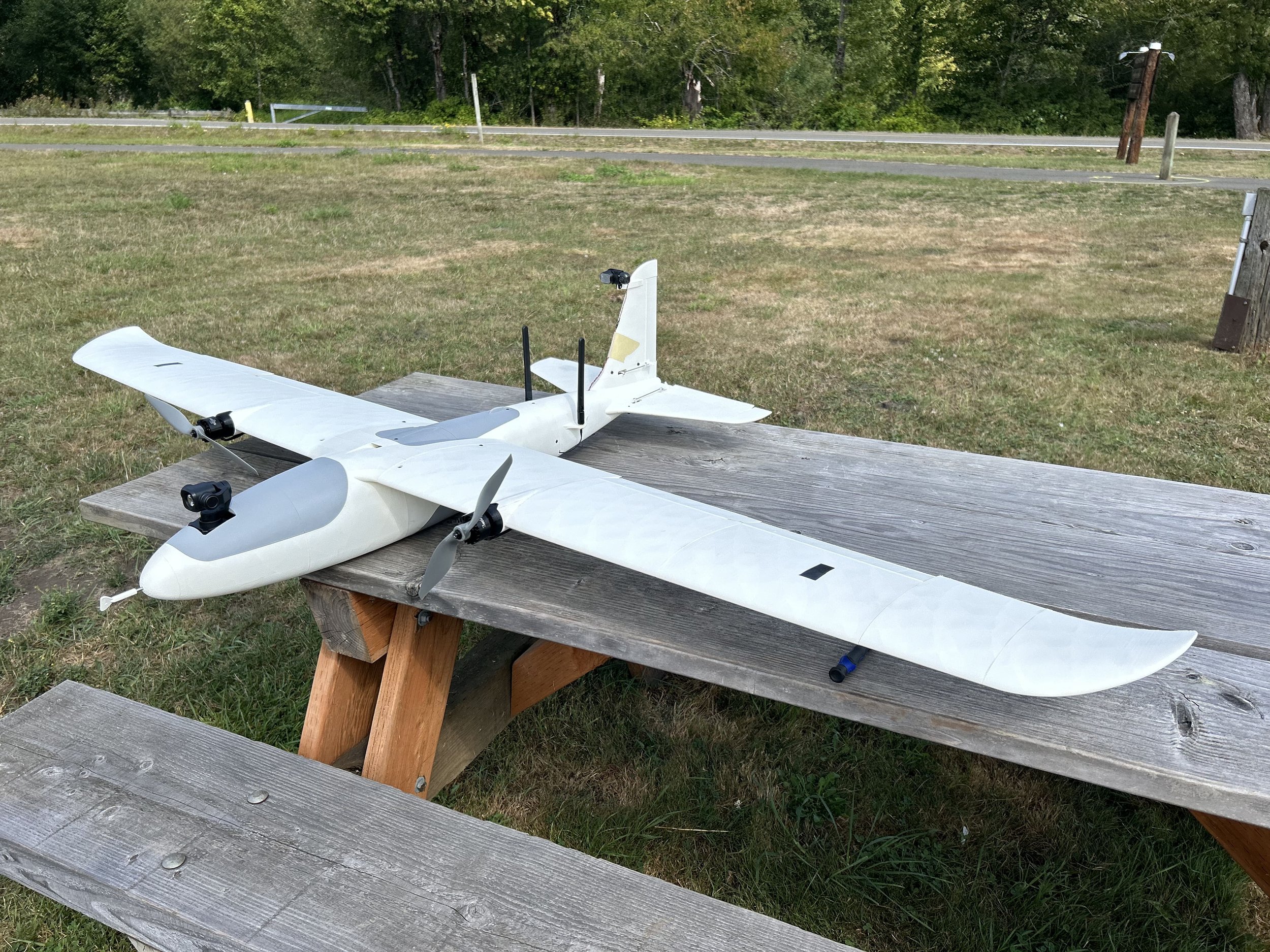

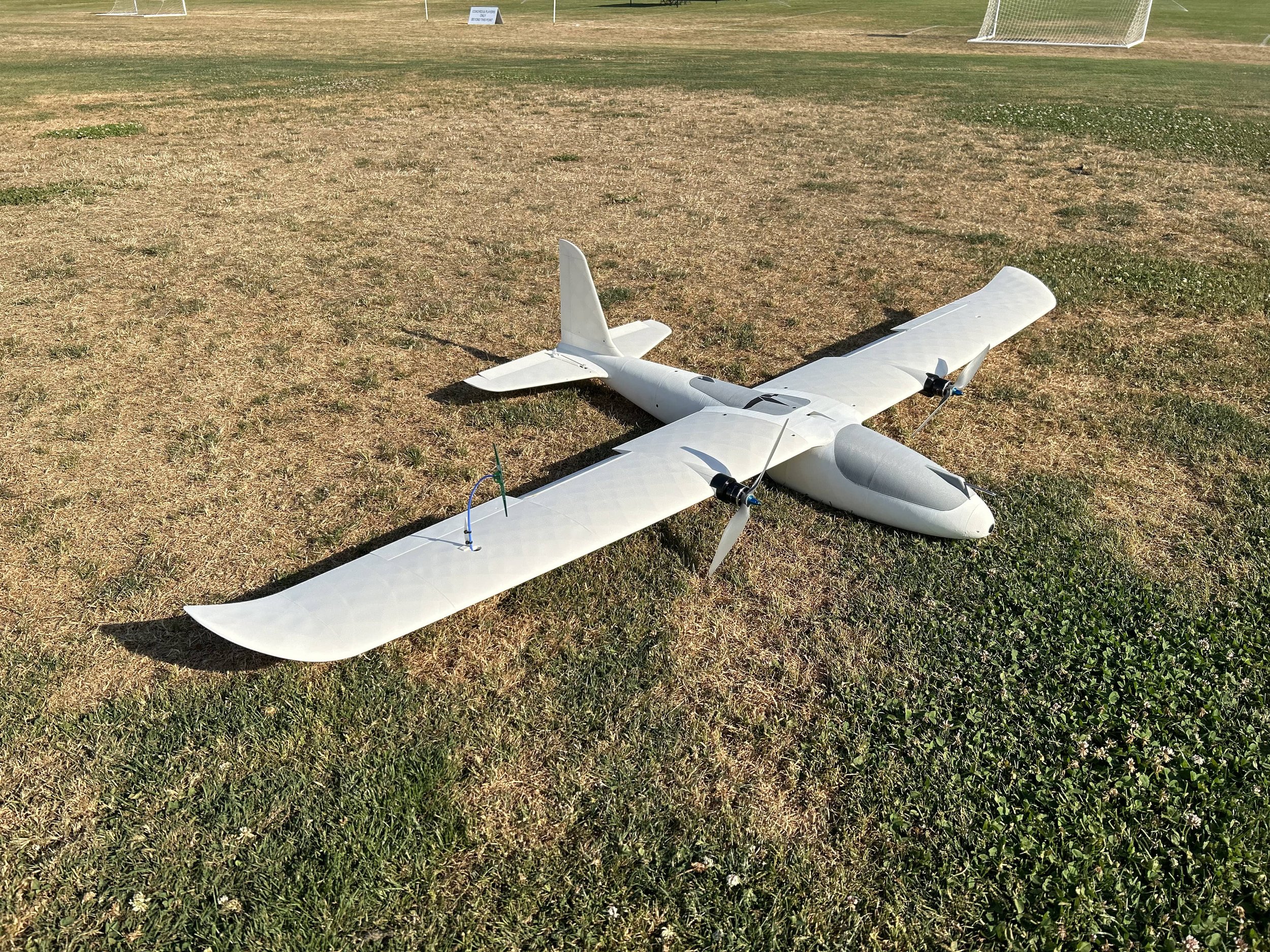

The Titan Falcon V2 is our new flagship UAV – designed to be a ruthlessly effective workhorse sculpted from hundreds of iterations in CFD. It was designed from the ground up to be modular, easily repairable, and highly adaptive to your needs. Featuring a swappable nose, tail and payload bay, Falcon V2 is ready for any application. A multitude of canopy and camera/antenna mounting options open any and all possibilities. Long range is in our DNA, and it was directly infused into every design decision during the development of the Falcon V2. A strong focus was placed on structural integrity, evident in its spar layout as well as clever tricks built into the STLs to increase strength where most desired. Prior to release the airframe has been flown over 1000km in total, and it currently holds the record for longest distance covered in flight for 3D printed aircraft: 300.4km with a flight time of 5 hours and 7.5 minutes – and there’s more left to squeeze if you dare!

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

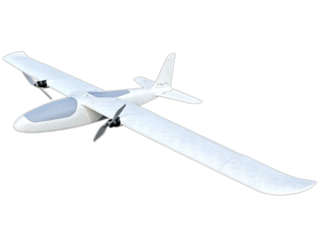

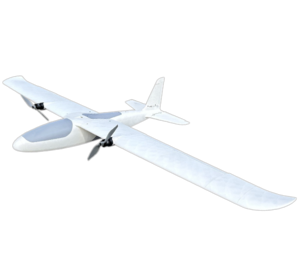

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Falcon V2 in particular but at least we know they do distribute Titan Dynamics.

Where to buy


Wingspan: 2093mm (82.4 in)
Length: unknown

Weight: 7000 g (15.4 lbs)
  • Wingspan: 2093mm
  • Wing area: 4514cm2
  • Maximum take-off Weight: 7kg
  • Efficiency: 1.6 Wh/km @ 3.5kg AUW
  • Cruise speed: 45-65kph
  • Recommended prop diameter: 11-14 inches


Aerodynamic Properties:

  • Root airfoil: NACA 4411
  • Tip airfoil: NACA 3411
  • Stabilizer airfoil (inverted): NACA 2410
  • Root chord: 260mm
  • Tip chord: 51mm
  • Average chord: 176mm
  • Root incidence: 4°
  • Tip incidence: 0°
  • Aspect ratio: 9.71
  • Dihedral: 0.5°
  • Sweep: 3°
