Swift S-1 carbon from Tomahawk Aviation

Details

The Swift S-1 is a polish performance acrobatic glider and was a follow on development of the SZD-21 which was banned from acrobatics after a wing collapsed at the world championship in 1989. A new and modern version of an acrobatic glider came to life which still had the excellent characteristics of the Kobuz 3. A total of 30 originals were built before the production stopped to make place for the production of the Fox. Today the molds dont exist any more so that a new production is unlikely.

Tomahawk picked up the topic and created a fine replica of the original in a scale of 1:3,8. The model is fully made in a vacuum sandwich technology. The wing has a full carbon fibre structure and is covered with a glass fibre layer to ensure a smooth surface , the fuselage is made in glas-fibre and is reinforced with carbon-fibre in certain areas.. The model is capable to ustain high static and dynamic load. The size is still very comfortable for transport.

The model can be flown as pure glider or can be equpped with a nose motor or even samll EDF or turbines.

Features

  • Scale replica of the SWIFT S-1 by Zaklad Remontow i Produkcji Sprzetu Lotniczego
  • scale 1:3,8
  • 3,33m wingspan
  • fuselage fibreglass reinforced by carbon fibre
  • wings full carbonfibre
  • carbon fibre wing joiner ( 18mm )
  • pure acrobatic performance setup

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

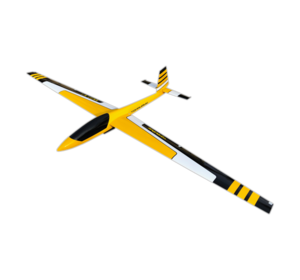

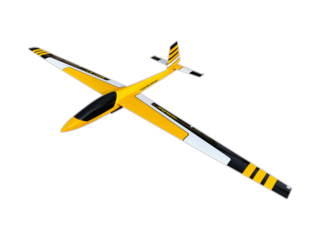

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.


Wingspan: 3330mm (131.1 in)
Length: 1800mm (70.9 in)

Weight: 5500 g (12.1 lbs)

Scale: 1: 3.8
Wingspan: 3.33 m
Length: 1.80 m
Weight (empty) approx .: 3.9 kg
Weight (ready to fly): 5.00 - 5.50 kg
Wing profile: NACA mod.
Construction / wing: carbon fiber
Construction / fuselage: fiberglass

Variants

22005
Swift S-1 carbon (Black White Yellow)
