Boeing 727-200 from Troy McMillan RC

Details

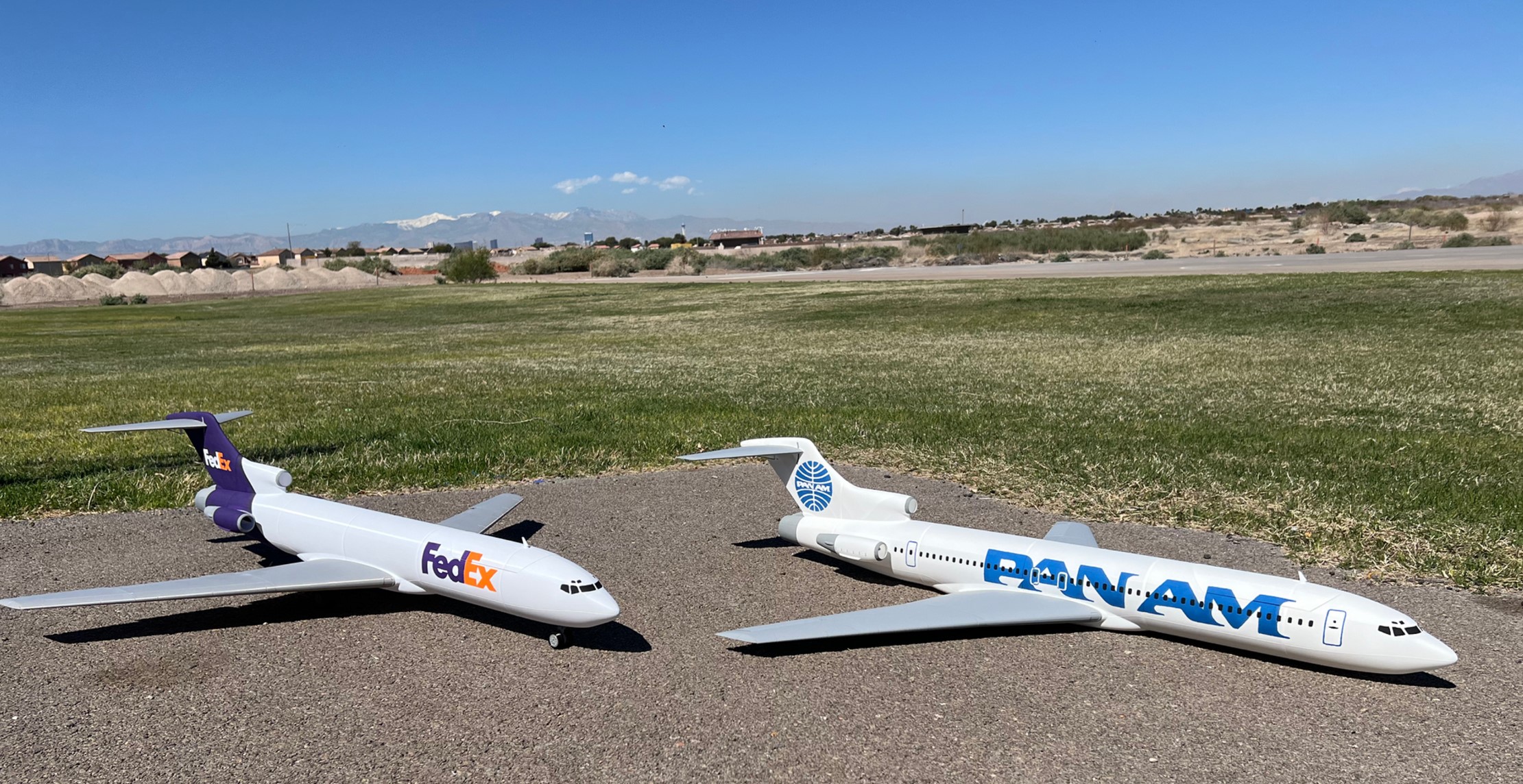

Two versions are available, a freighter version without windows and a passenger version with windows. This plane can be printed in regular PLA and LW-PLA. Decals stick great on regular PLA, but if you go with LW-PLA I would suggest hand-painting.

This plane has been designed to print in Vase Mode, where all of the pieces can be printed out using the same print setting. There are no infill or top/bottom layers needed. This is THE easiest plane to print on the market. I added a slotted key in each fuselage piece which makes for an easy to align and assemble fuselage section. The servo locations are designed to fit any brand of 9g servo.

There are two flap designs included in this build. You can print the wing out as a regular wing with a flaps-up configuration. Or you can print out the regular wing and remove the flaps, as shown in the build video, and replace them with the takeoff-flaps. This is a cool feature that allows you to have flaps without adding weight, and also adds a great scale look to the wing.
Files for a landing gear are also included , but it can also be flown as a hand-launch plane. The key feature I wanted to improve on, is having no servo arm under the wing for belly-landing. I designed an internal servo mount that uses a 3mm carbon fiber rod attached to the end of a servo to control the aileron.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

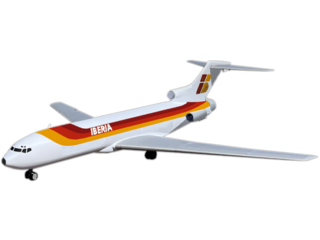

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

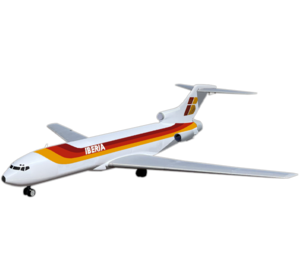

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Boeing 727-200 in particular but at least we know they do distribute Troy McMillan RC.

Where to buy


Wingspan: 800mm (31.5 in)
Length: 1100mm (43.3 in)

Weight: 1100 g (2.4 lbs)
  • Wingspan: 0.8m
  • Print time: 45hrs
  • Length: 1.1m
  • RTF weight: 780g [LWPLA]
  • RTF weight: 1100g  [PLA]
