Yak-52 from VQ Model

Details

The Yakovlev Yak-52 (Як-52) is a lt Soviet primary trainer aircraft which first flew in 1976. It is still being produced in Romania by Aerostar, which gained manufacturing rights under agreement within the now defunct COMECON socialist trade organisation.

The Yak-52 was designed originally as an erobatic trainer for students in the Soviet DOSAAF training organisation, which trained both civilian sport pilots and military pilots. Since the early 1990s and the fall of the Soviet Union, many Yak 52s have been exported to the west. Of the approximately 1,800 produced to date, most now fly in the United States,  United Kingdom,  New Zealand ,  Australia  and other western countries.

Now VQ release the Yak-52 46 size EP-GP for the modeller who like Russian aircraft. With the big battery hatch, you can fly by both glow engine or Electric motor. Option you can choose the Electric retracts reinstalled the struts or Mechanical retracts.

Features:

  • All Balsa and lite-ply construction
  • Fully covered in weathered detail
  • Fiberglass cowling
  • Control surfaces pre-hinged and installed
  • Big Battery for easy change battery after every flight

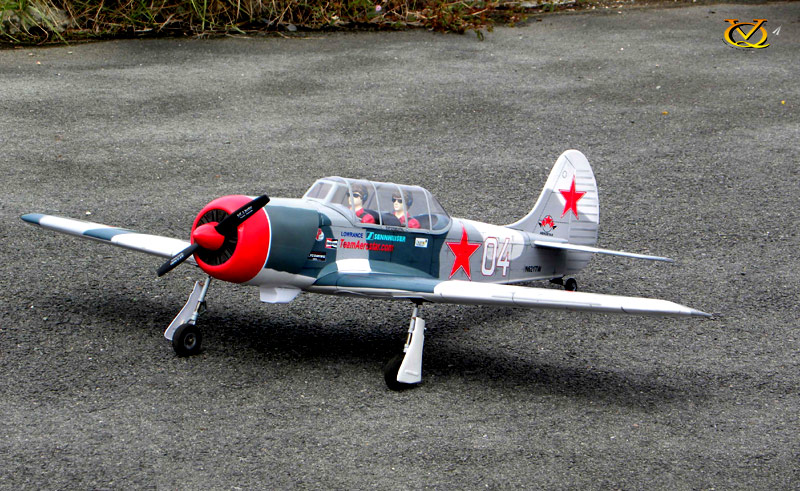

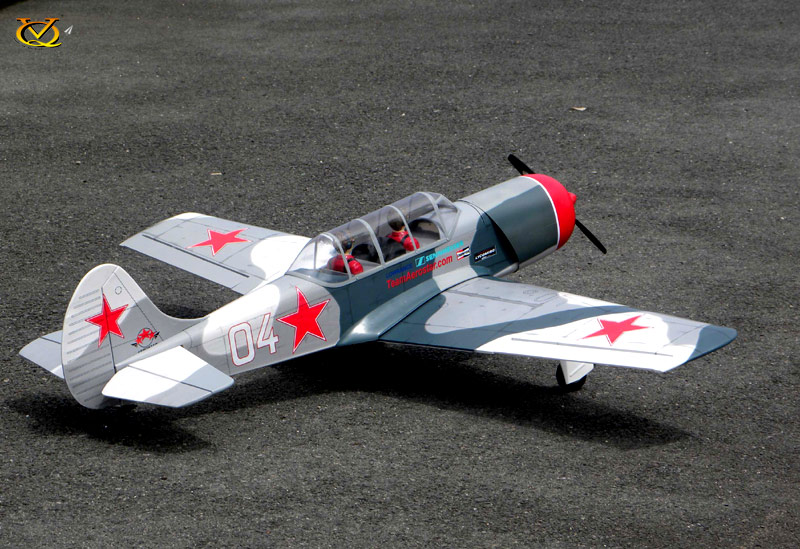

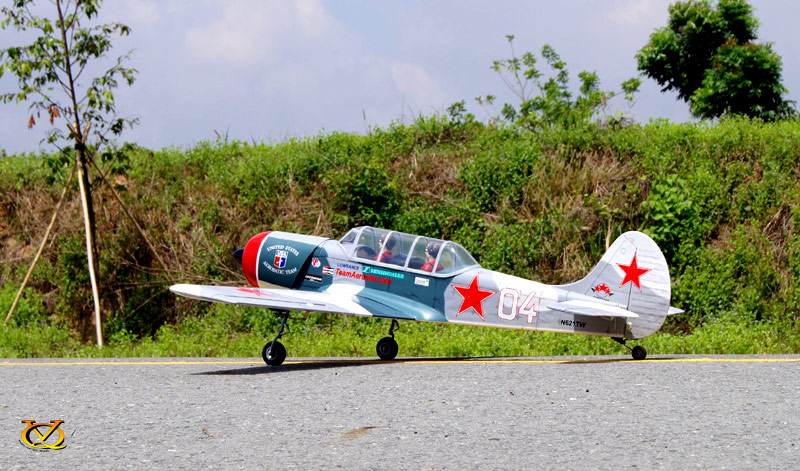

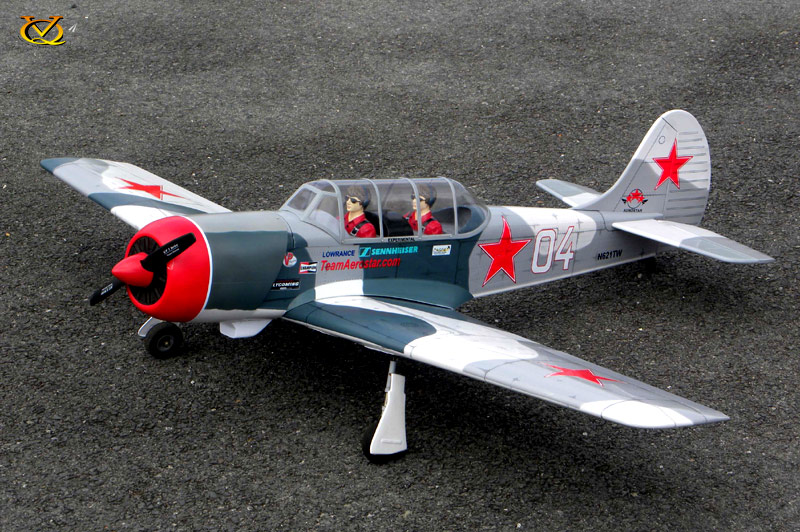

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

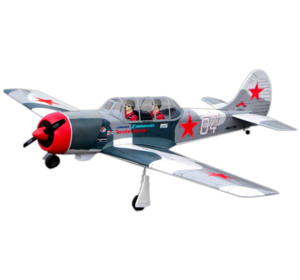

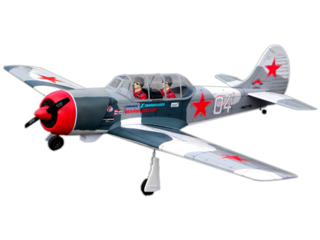

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1540mm (60.6 in)
Length: 1117mm (44 in)

Weight: 3200 g (7.1 lbs)
  • Wingspan: 1540mm (60.6in)
  • Fuselage Length: 1117mm (43.9in)
  • Weight ( Ready to fly ): 2,9 -  3,2kg
  • Engine: .46(2 stroke)  /  .70(4 stroke)
  • Electric Motor: Boost 50 or any Electric motor same power with 46 size
  • Battery:  Lipo 14,8V 4000 mAh
  • Radio req.:  5 channels with 5 servos (6 channels for retracts)
