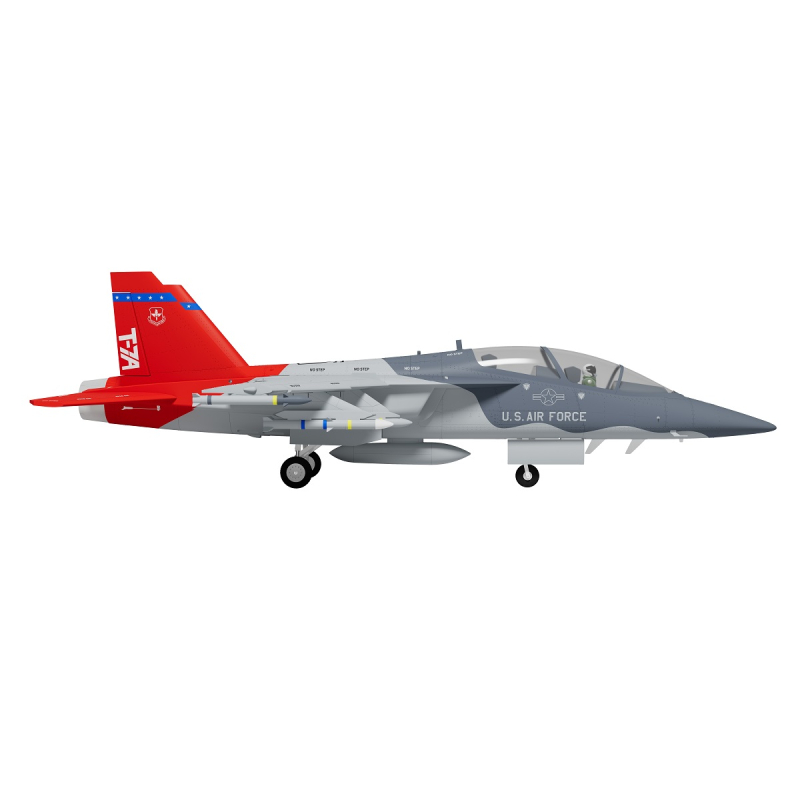

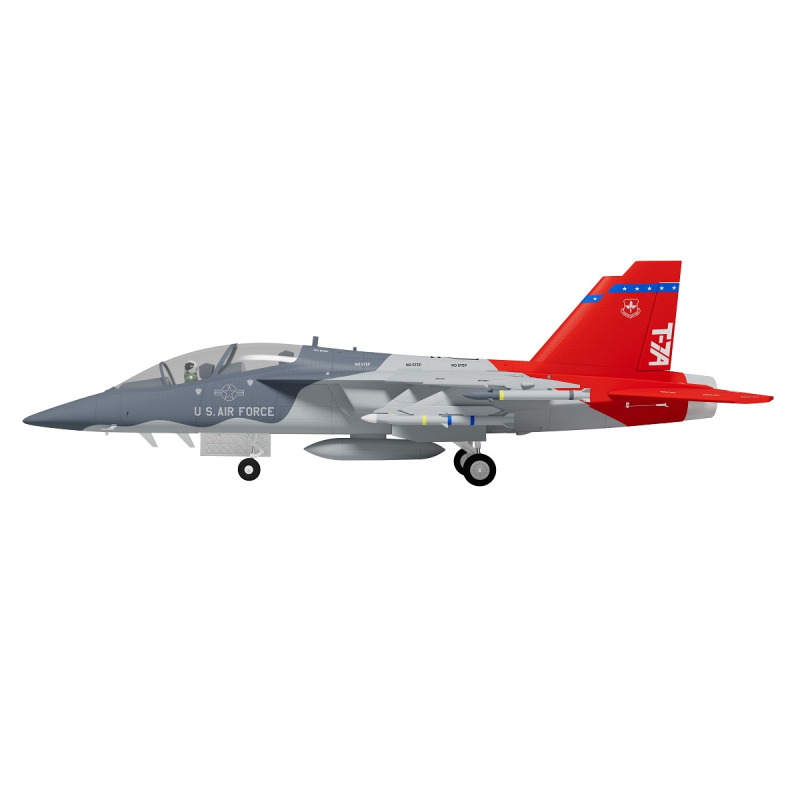

T-7A 80mm from XFLY Model

Details

Model scaled up the T-7A 64mm EDF jet to make an 80mm version with the same care and attention to appearance and performance. The T-7A 80mm EDF jet is packed full of scale details including molded-in panel lines, simulated antenna, pitot tube, clear canopy, removable missiles plus drop tank and more. Featuring the functional LED navigation and landing lights, full-flying horizontal stabs, sequenced gear doors, scale retractable CNC metal landing gears and operational flaperon setting, this larger version can bring you unexpected scale-like flying experience!

With a 6S Lipo battery, the high-power 80mm EDF with 12-blade fan, 6S-compatible brushless inrunner motor and 100A ESC deliver fantastic top speed and vertical performamce plus amazing turbine-like sound. With stability it's a scale jet that flies smooth and handles like a sport jet. Integrated wing connectors and glueless design facilitate fast and easy assembly, so you can get the 80mm T-7A airborne in less than one hour.

Features

  • Scale replica of the iconic aircraft flown by the U.S. Air Force for training and other missions
  • High-power 80mm EDF with 12-blade fan
  • 6S-compatible brushless inrunner motor and 100A ESC

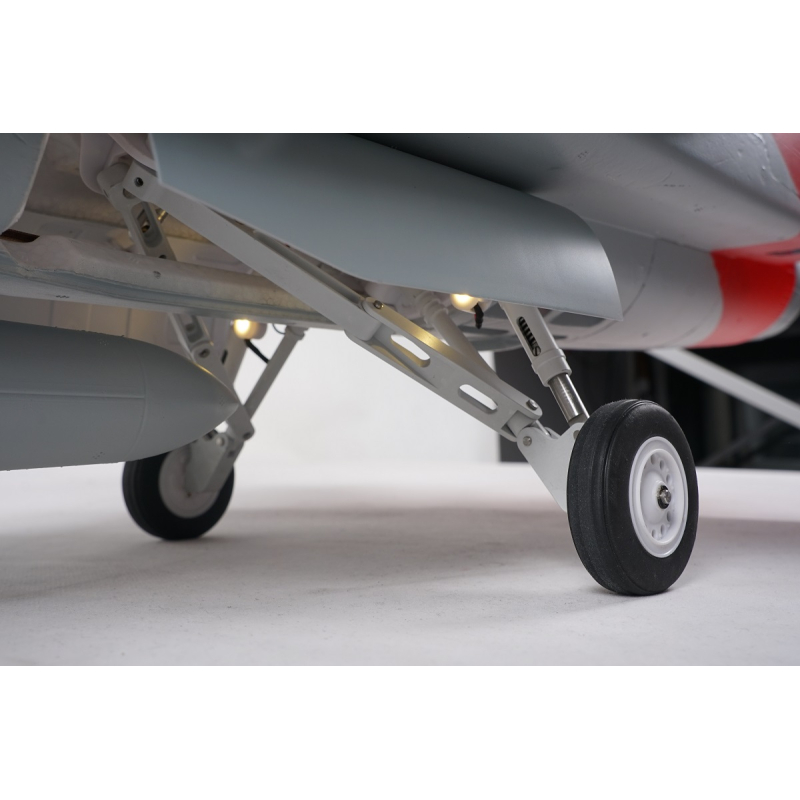

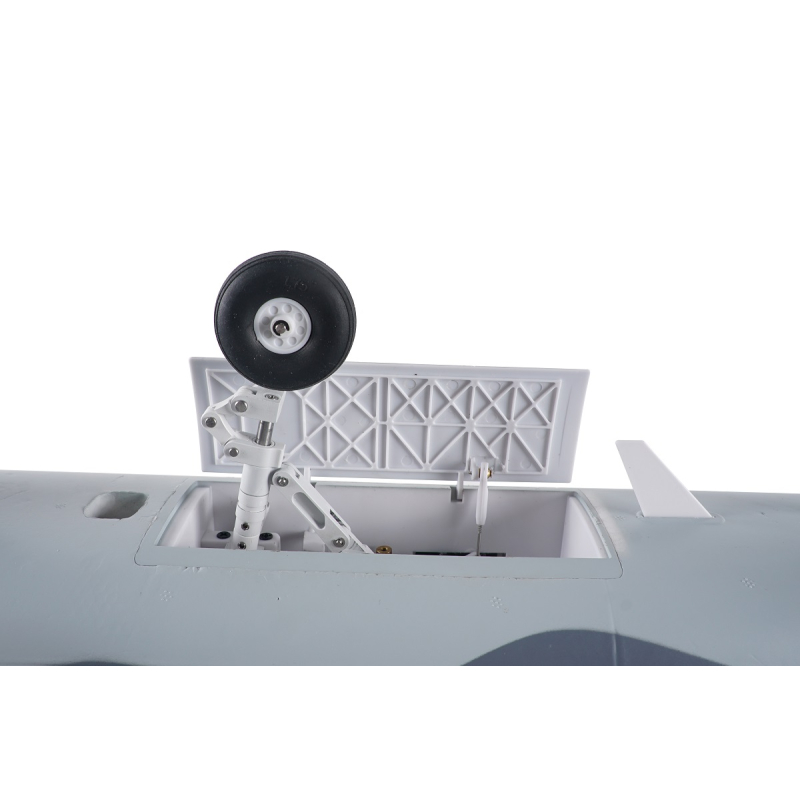

  • Scale retractable shock-absorbing metal landing gears with sequenced gear doors
  • Factory-installed 4 bright LED navigation and landing lights, full-flying horizontal stabs plus operational flaperon setting

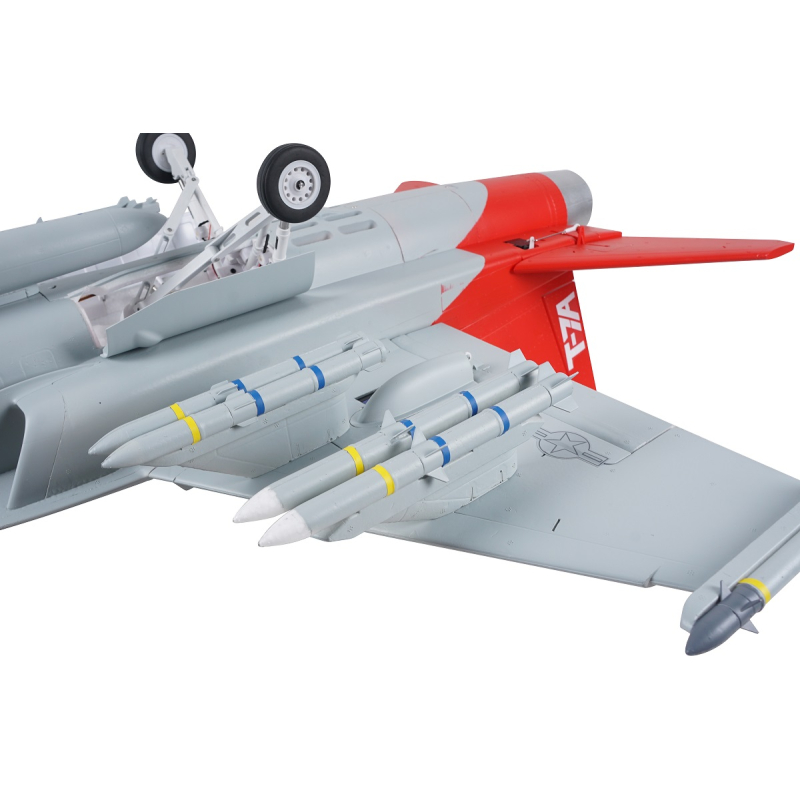

  • Removable missiles and drop tank for optional use

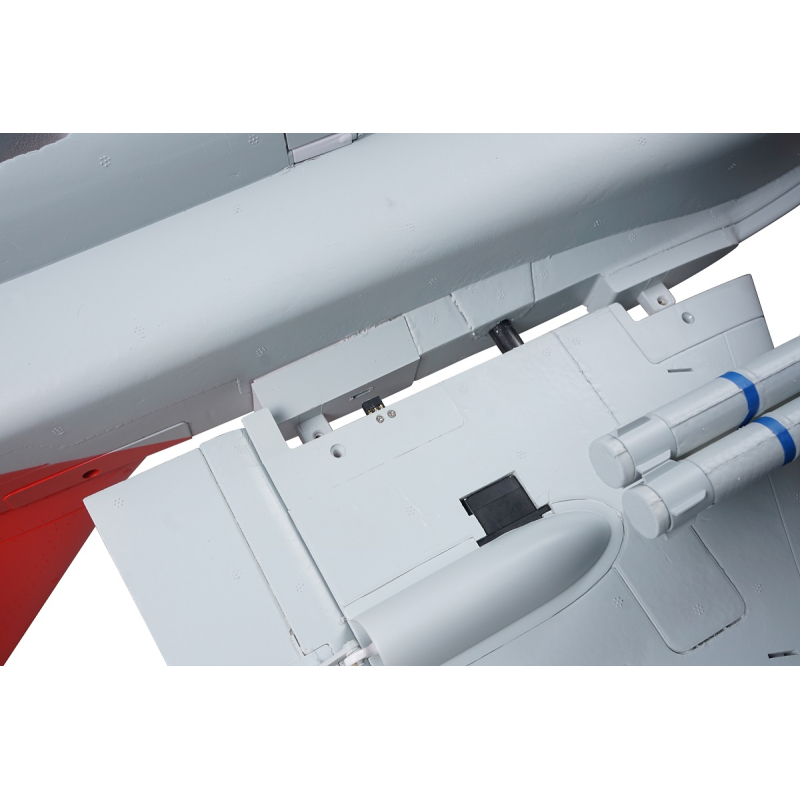

  • Integrated wing connectors for easy installation or removal of main wings
  • Latch-type top hatch with clear canopy, cockpit detail and pilot figure
  • Large battery tray allows for 6S 4000-7000mAh LiPo battery for increased flight times
  • Fast and easy assembly – no glue required

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

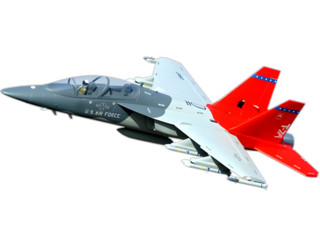

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 975mm (38.4 in)
Length: 1380mm (54.3 in)

Weight: 3150 g (6.9 lbs)
Wingspan 975mm / 38.4in
Length 1360mm / 53.5in
Flying weight environ 3150 g
Wing Surface Area: 21.5dm²
Wing Loading: 146g/dm²
CG (Center of Gravity) Check manual
Servos 9g Servo*5, 13g Servo*5
EDF Diameter Class 80 mm
Blades: 12
Turbine shroud Synthetic
EDF Rotor Synthetic
Power System Brushless 3280-KV2200
Turns/min/Volt (Kv): 2200
Motor Type: In-Runner
Motor Diameter (mm): 32
Electronic Speed Control 100A Hobbywing - 5A UBEC
Battery Type LiPo-Accu
Battery Cells: 6s - 22.2v
Battery Capacity (mAh) 4.000 mAh, 5.000 mAh
Connection: EC-5
Surfaces Ailerons, Elevator, Rudder, Flaps
Landing Gear Retractable suspended gear
Lights Navigation lights
Material EPO Foam, ABS
