Leader 3SE from FullSpeed RC

Details

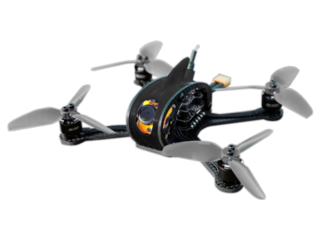

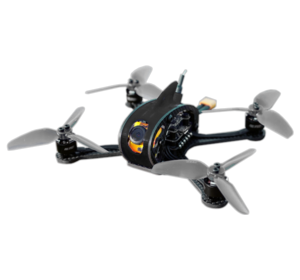

After sucessful debut of the Leader-120 quadcopter, FullSpeed released the bigger brother – Leader 3 (or Leader-130). As you may guess the frame size is 130mm, and the suggested prop size is 3″, hence the name Leader-130 and Leader 3. Not only the frame is bigger, but the Leader 3 SE version also has nice canopy with several colors to select from.



Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Leader 3SE in particular but at least we know they do distribute FullSpeed RC.

Where to buy


Wingspan: 130mm (5.1 in)
Length: 130mm (5.1 in)

Weight: 93 g (3.3 oz)

Weelbase:  130mm
Net Weight: Leader 3(87g)、Leader 3SE(93g)
Thickness of bottom plate: 3mm
Thickness of side plate: 2mm
Flight controller: FSD F411   built-in OSD
ESC: FSD 28A  BLHELI_S  2-4S 4in1 ESC Dshot600
Motor: 1106 4500KV
Propeller: HQ3x3x3
Camera: Caddx Micro F2
VTX: FSD TX600 25/100/200/400/600 switchable VTX

FullSpeed FSD F411 Flight controller
Size:
 27.5mm * 27.5mm * 5mm
Mounting hole: 20mm * 20mm
MCU: STM32 F411
Built-in Betaflight OSD
Firmware: FULLSPEEDF411 Betaflight
BEC: 5V 3A

FullSpeed FSD 28A BLHELI_S 4in1 ESC
Size:
 27mm * 27mm * 5mm
Mounting hole: 20mm * 20mm
Firmware: BLHELI_S
Input voltage: 2-4S
Continuous current: 28A
BEC Ouput: NO

FullSpeed FSD TX600 25mW-600mW VTX FPV Transmitter
Output power:
 PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(RX)/button
Video system: NTSC/PAL
Antenna: IPEX
BAT: 5V Recommended
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(TX600's factory set up is on lock mode(5733-5866MHZ unlock). Please follow your local laws and regulations
if you need to unlock the frequency.)

Size: 26*26mm(L*W),Hole:20*20mm
Weight: 2.3g

Variants

L3SE-P
Leader 3SE (Purple)
L3SE-Y
Leader 3SE (Yellow)
L3SE-R
Leader 3SE (Red)
L3SE-BL
Leader 3SE (Blue)
L3SE-BK
Leader 3SE (Black)
L3SE-W
Leader 3SE (White)
