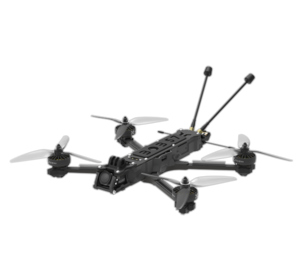

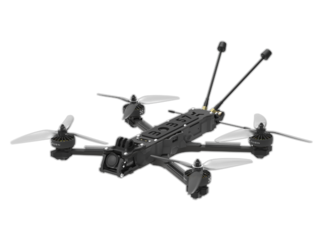

BOB57 O3 from iFlight

Details

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Features:

Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6" propellers
High-end GPS is used to minimize the risk of failure during proximity flights
Long backbone with enough space up to fit 3000mAh 6S batteries
Solid antenna mount for less ocillations when using long antennas
H-shaped frame with robust middle section for less props in view
Gladiator shell protects from dust and water droplets
ESCs with built-in spike absorber for more reliability
Built in BEC to directly power a GoPro camera
9-minute flight time with 3000mAh 6S Lipo
Front-mounting XT-60

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the BOB57 O3 in particular but at least we know they do distribute iFlight.

Where to buy

China
iFlight RC
check web site
Ship to: Worldwide

USA
getfpv
check web site
Ship to: USA

Australia
Next FPV
check web site
Ship to: Australia

USA
Grayson Hobby
check web site
Ship to: USA

Wingspan: 180mm (7.1 in)
	Length: 180mm (7.1 in)
Weight: 620 g (1.4 lbs)

See Specs & Tech Details

FC: BLITZ F722
ESC: BLITZ E55 55A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 278mm wheelbase
Motor: XING2 2506 motors
Prop: Nazgul 6 inch propellers
Takeoff Weight: Approx. 620 g
Dimensions (L×W×H): 180×180×80 mm
Diagonal Distance: 245mm
Max Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: 130 Km/H (Level 4)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 1 Antenna
GNSS: GPS +GALELEO
