M1 from OMP Hobby

Details

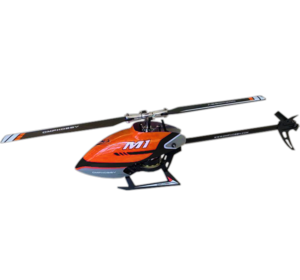

The  M1 is OMPHobby’s all new ‘150’ class heli. It has all the same great features of the M2 but in a smaller package including simple and high performance direct drive main and tail rotors, just like it’s big brother. It comes with an inbuilt ‘OMP’ protocol receiver plus ports for connection of an external DSM or SBus receiver. The OMPHobby M1 sets an all new standard in quality and performance in the 150 heli class.

This small sized helicopter inherits the great features of the bigger M2 brother, yet much smaller making it ideal for indoor flight in the winter. Product is expected to be shipped around the middle of November, but may encounter delay because of the busy holiday season. Three colors will be available: orange, purple, and yellow.

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series
(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the M1 in particular but at least we know they do distribute OMP Hobby.

Wingspan: 290mm (11.4 in)
Length: 290mm (11.4 in)

Weight: 118 g (4.2 oz)
  • Main motor: Sunnysky R23-2
  • Tail motor: Sunnysky R09-2
  • Diameter of main blades: 290mm
  • Diameter of tail blades: 46.5mm
  • Weight: ±118g
  • Overall size: 290*88*290
  • Battery: 2s 350mAh 50C
  • Flying time: maximum flying time 8Min / 3D violent 3min
  • Servos: Digital sub micro, metal gears, plastic case
  • Flight controller: Adjustable parameter, governor mode
  • Receiver: SFHSS integrated receiver plus S-BUS & DSM ports for external Rx (not compatible with T6)

Variants

M1P
M1 (Pink)
M1Y
M1 (Yellow)
M1O
M1 (Orange)
