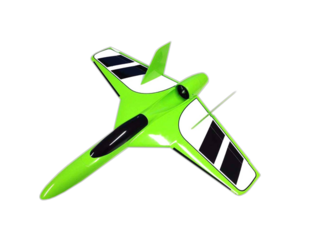

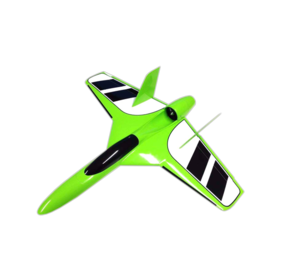

Fusion Jet from Vasa Model


100% molded composite Super "Funjet" equiped with a 100% carbon 70mm EDF (shroud and rotor), a 100A Phoenix Edge ESC and servos.

Home-made, high quality small scale production. The 70mm EDF Fusion Jet PNP version will be delivered almost ready to be hand launched. The full carbon Vasafan EDF unit designed for high performances has been built and balanced and mounted inside the model such as the 2 wings metal high speed digital servos. The Castle Creations Phoenix Edge 100A ESC will have to be set in place. We recommend to use a 3M Dual Lock adhesive for both the ESC and the battery. Then you will also have to screw the 2 vertical fin, install your own receiver and the plugs corresponding to your 6s LiPo battery. The 70mm Fusion EDF as been measured at more than 270km/h (169mph) and up to 335km/h (208mph) after a dive!


  • 100% durable composite fiber construction
  • 100% carbon (shroud and rotor) 70mm 6 blade EDF with TP Power 2940 2940 inrunner motor (built and precisely balanced)(mounted inside the model)
  • 100A Castle Creations Phoenix Edge 100 ESC with 5A adjustable bec 5 to 8.5v (mounted inside the model)
  • 2 Kingmax CLS0612W 24gr metal digital wing servos. 6.2kg torque and 0.12s speed (7.4v) (mounted inside the model)

Description by Turbines RC


Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Fusion Jet in particular but at least we know they do distribute Vasa Model.

Wingspan: 800mm (31.5 in)
Length: 780mm (30.7 in)

Weight: 1450 g (3.2 lbs)


Wingspan (mm): 800 mm
Length (mm): 780 mm
Weight (gr): +/- 500 gr
Flying weight (gr) +/- 1400 gr
Servos 2x 24 gr metal gear digital
Servo Size: "Thin" for wings
Servo type: Digital
EDF Thrust +/- 2465 gr
Direction of Rotation (EDF Rotor) Classic Counter Clock Wize (CCW)
EDF Diameter Class (mm): 70
Blades: 6
Turbine shroud Carbon
EDF Rotor Carbon
Turns/min/Volt (Kv): 2940 Kv
Motor Type: In-Runner
Motor Diameter (mm): 29 mm
ESC 100A Castle Création Phoenix Edge, 60 A
Battery Cells: 6s - 22.2v
Battery Capacity (mAh) 2.600 mAh, 3.300 mAh
Material Fiberglass
