Discover Beta V2-2 from Craycle Hobby

Details

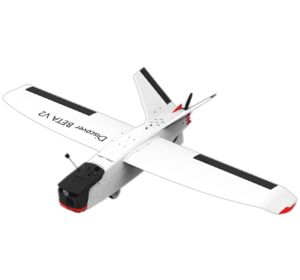

Here comes our exclusive Discovery Aircraft, Craycle Discover.

The most functional model we made! We have developed an FPV Platform that can be used in different projects for many purposes, especially cinematic shots.

When you purchase the Beta Version you will get a special invite link for the Telegram Beta Team Group.

Features:

Modular Electronic Platform
Free Electronic Plate Options are Available
Quick-Release Swaphable Action Camera Holder
Quick-Release Detachable Wings
Wingtip and Backlights for Night Flights
Optimized Cooling Vents Area
Swaphable FPV Hatch
Huge Service Hatches
Huge Interior Volume
High Safety for Action and FPV Cameras
High Battery Carrying Capacity
Common Craycle Cura Profile
180x180x180 mm Minimum Printer Size

STL available from Craycle Hobby

Pictures

Radio icons

(Click on the icon you want to download)

FrSky X20/X20s/XE Ethos

FrSky X18/X18s/TWIN Ethos

FrSky Horus OpenTx

FrSky Horus FrOs

Standard

Silhouette

FrSky X9D/X9D+/X9E

Spektrum IX12 & IX20

Futaba 18MZ

Jeti DS-24

Graupner MZ-16 & MZ-32

Radiomaster TX16S

Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Discover Beta V2-2 in particular but at least we know they do distribute Craycle Hobby.

Where to buy

Turkey
Craycle
check web site
Ship to: Worldwide

Wingspan: 1200mm (47.2 in)
	Length: 575mm (22.6 in)
Weight: 1100 g (2.4 lbs)

See more Details

Length: 575 mm
Wingspan: 1200 mm
Print Weight: 607 grams
Flying Weight: 1100 grams
Wing Area: 18.7 dm2
Airfoil : E205 (10.48%)
180x180x180 mm Minimum Printer Size

Recommended Electronics

Emax XA2212 1400KV Brushless Motor (Up to 40mm outer diameter will fit)
30/40A ESC
8"/9"/10" Propeller
3s/4s 1500/2500 mAh Lipo (8 pieces of Lipo will fit!)
4 x 9 grams Servo
4ch or more Radio
Any FC - GPS and FPV system
Action Cameras like Gopro - Insta360 Go2 - Square Cameras and more will be added

Variants

discbetav2-2

Discover Beta V2-2 (PLA PETG TPU)
