Align T-REX 450L

Radio-Controlled Helicopter for RC Pilots

Details

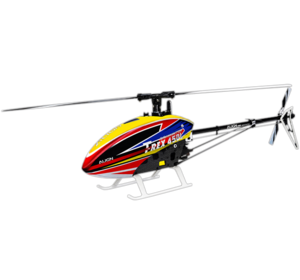

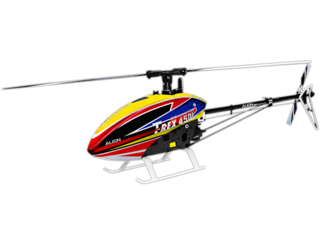

The T-REX 450L Dominator by Align is an advanced evolution of the iconic T-REX 450 series, blending classic design with competition-grade innovations. Its reinforced frame features additional structural elements, a top-mounted motor, and a DFC-style bearing block with integrated servo mount for enhanced rigidity and anti-torsion performance. The striking red anodized finish adds both durability and visual appeal.
Equipped with a DFC flybarless system and newly designed 3D-specific 360 3G main rotor blades, it delivers exceptional stability and agility. Powered by a 460MX (1800KV) motor running on a 6S1P 22.2V battery and paired with an RCE-BL45X brushless controller, it offers high efficiency, power, and torque with low energy consumption and operating temperature.
Combining modern aerodynamics and premium electronics, the T-REX 450L Dominator outperforms traditional RC helicopters with superior stability, extreme performance, and precise control—all while maintaining the convenience of a compact model. A must-have for serious RC helicopter enthusiasts!

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T-REX 450L in particular but at least we know they do distribute Align.

Where to buy

USA
Helidirect
check web site
Ship to: USA

Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland

Ireland
Model Heli Service
check web site
Ship to: Ireland

Germany
MHM Modellbau
check web site
Ship to: EMEA

France
Weymuller Modélisme
check web site
Ship to: France

Austria
Schweighofer AT
check web site
Ship to: International

USA
AMain Hobbies
check web site
Ship to: USA

Germany
Schweighofer GE
check web site
Ship to: Germany

Wingspan: 804mm (31.7 in)
	Length: 705mm (27.8 in)
Weight: 730 g (1.6 lbs)

See Specs & Tech Details

Specification	Metric	Imperial
Length	705 mm	(27.76 in)
Height	205 mm	(8.07 in)
Width	110 mm	(4.33 in)
Main Rotor Blade Length	360 mm	(14.17 in)
Main Rotor Diameter	804 mm	(31.65 in)
Tail Rotor Blade Length	68 mm	(2.68 in)
Tail Rotor Diameter	171 mm	(6.73 in)
Motor Pinion	11 teeth	–
Main Gear	121 teeth	–
Autorotation Gear	106 teeth	–
Tail Gear	25 teeth	–
Gear Ratio	1:11:4.24	–
Weight (w/o Battery)	730 g	(25.74 oz)
