FW 450 from FLY WING

Details

The RC helicopter that everybody can fly.

  • GPS fix
  • Altitude hold
  • 3D Fly
  • Auto landing​

Features

  • 6CH, conception FBL 3D Flying.

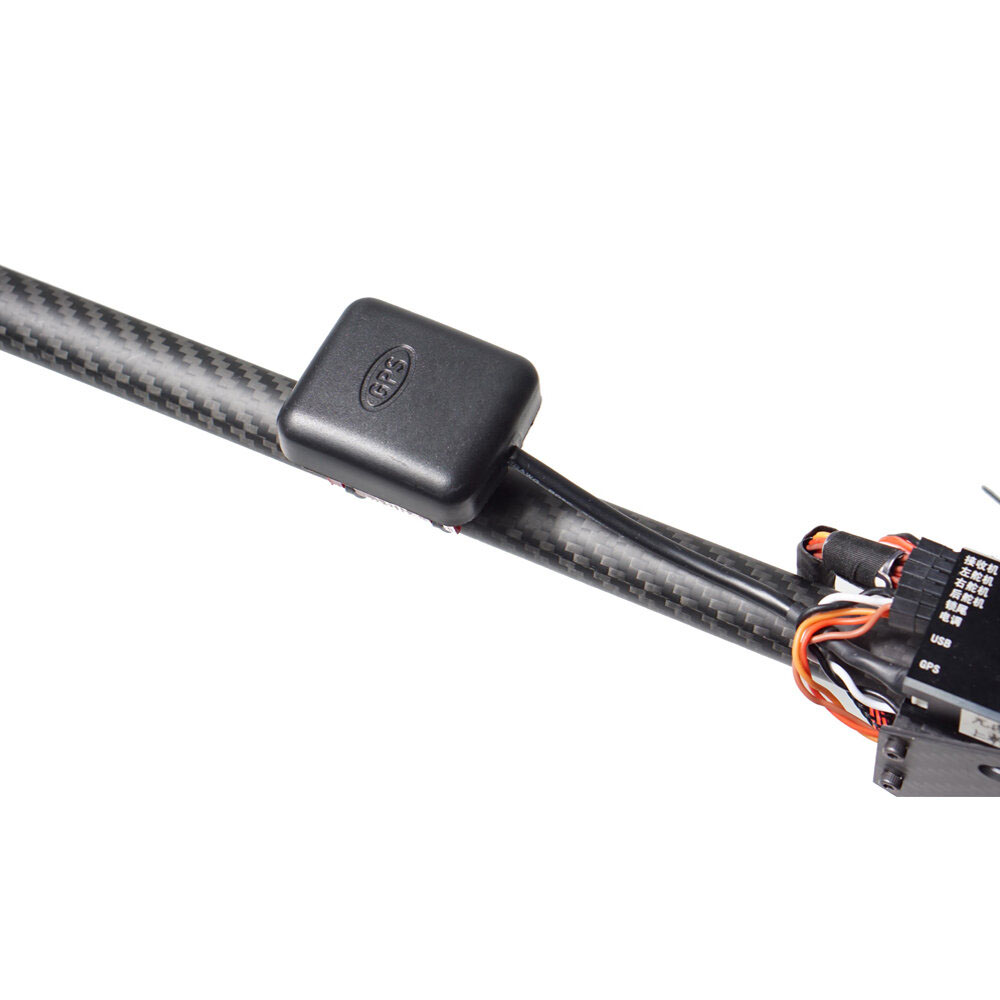

  • With newest H1 flight control system, support GPS and altitude hover.
  • Support one key return function, the flying trace looks like number "8".
  • With 4S 2200mAh large capacity battery, the flight time is up to 15mins (approx) and the flight distance is up to 1000m.

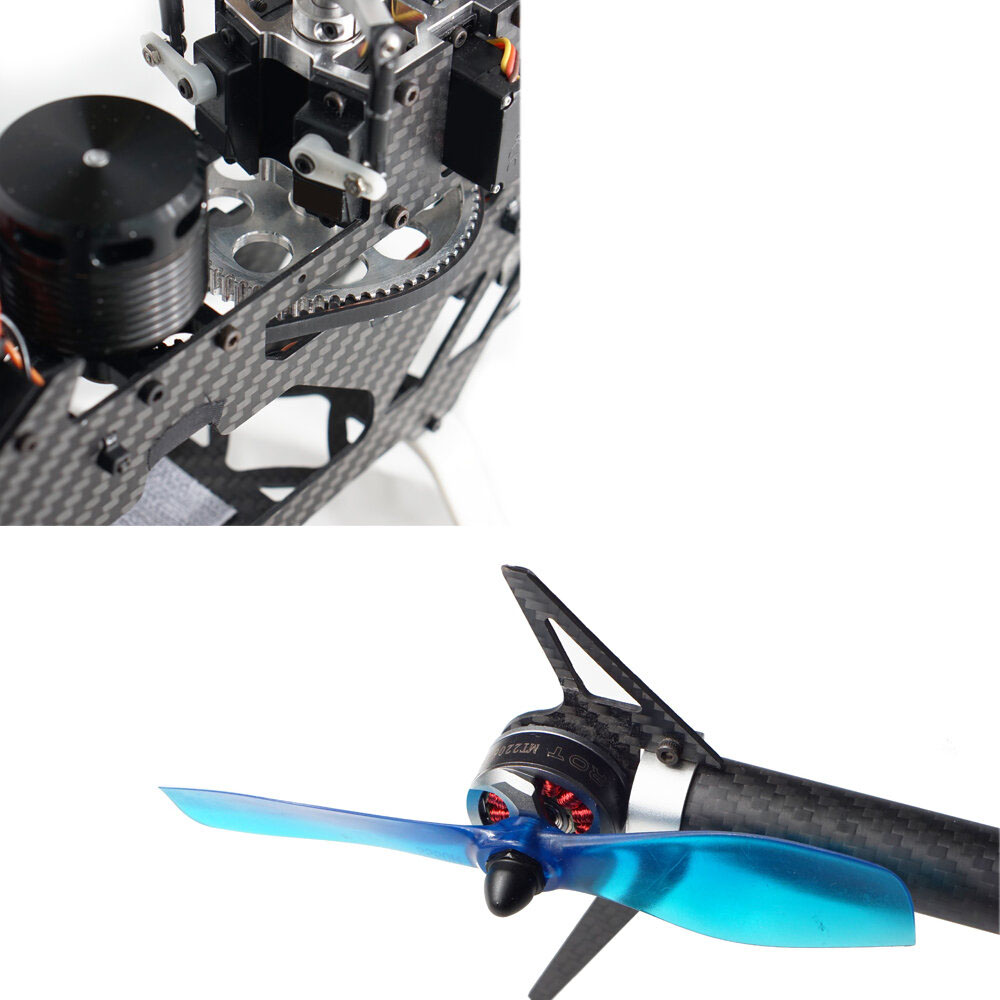

  • Using all-metal 700 class helicopter rotor, brushless 5mm shaft tail motor, high speed and sensitive response.

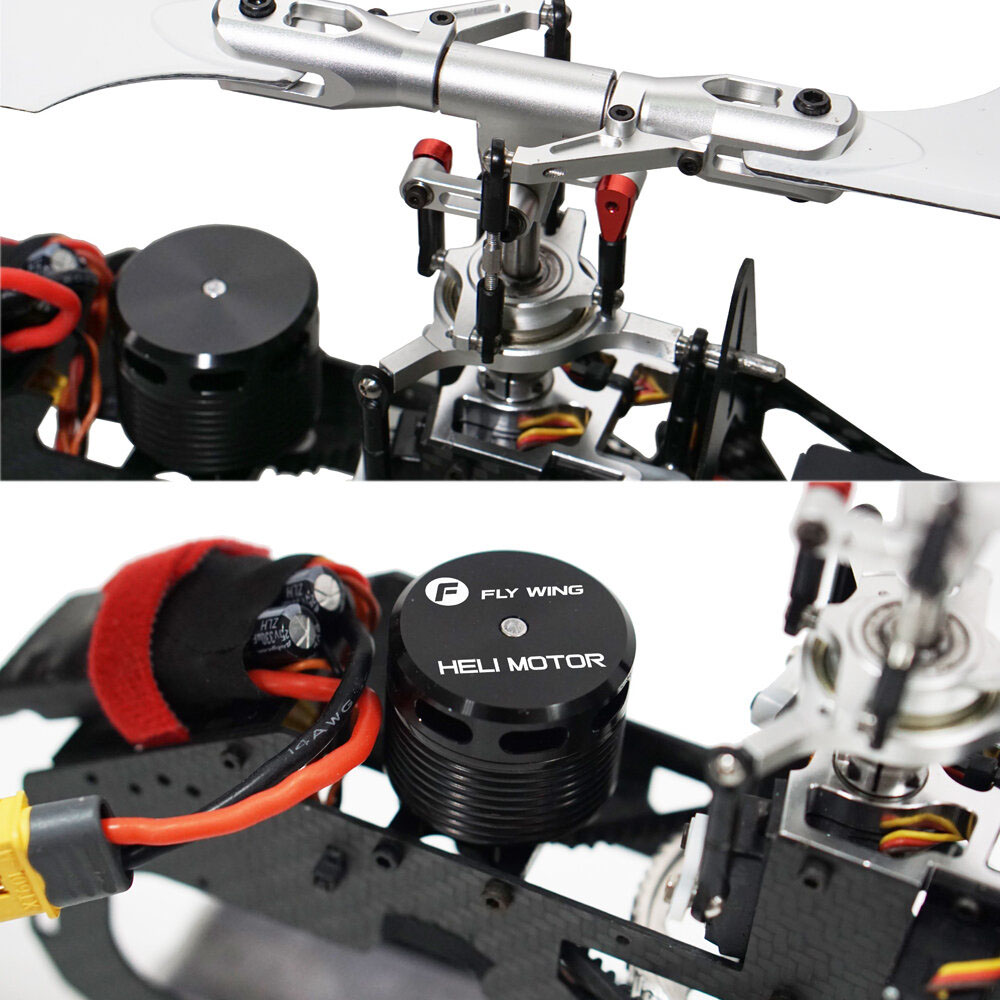

  • All metal main gear, 18mm 3k carbon fiber tail boom, with 2816 brushless main motor.
  • The transmitter can be changed to mode 1 / mode 2 freely.
  • Upgraded 60A helicopter ESC, 32 bit processor, better performance
  • The tail tube can be quickly disassembled, making it easy to maintain / transport
  •  Upgraded 22mm rectangular metal tail tube, strong and beautiful
  • Wider landing skid, easier to take off and land
  • Full metal X three-dimensional tail motor base, stronger and better heat dissipation
  • One piece link rod, no need to adjust the length, avoid blade separat
  • thick lines upgraded version of the brushless motor, bringing more power

Pictures

Manual

Radio icons

(Click on the icon you want to download)
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the FW 450 in particular but at least we know they do distribute FLY WING.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 800mm (31.5 in)
Length: 880mm (34.6 in)

Weight: 800 g (1.8 lbs)
  • Batteries: 4S 4450mAh Lipo Batteries
  • Body length: 880mm
  • Body width: 110mm
  • Body height: 220mm
  • Main rotor diameter: 800mm
  • Main blade length: 360mm
  • Tail rotor diameter: 127mm
  • Motor gear: 11T
  • Drive: 66T
  • Rear drive: brushless motor
  • Weight (no battery): 800g
  • Flight time: apporx. 15 minutes
  • Flight distance: apporx. 1000m

Variants

FW450
FW 450 (Red)
