Turbo Duster 65 from Legacy Aviation

Details

Inspired by the latest turbine crop dusters, the Turbo Duster is a great sport scale and aerobatic model from Legacy Aviation. It is constructed of premium balsa and ply and covered in genuine Oracover/Ultracote. The Turbo Duster Uses 6 medium metal-gear servos, such as the Hitec Hs-5245MG, and includes big double-hinged flaps for all sorts of mixing possibilities.

Paired with our Torque 4016-500 motor and Airboss80 ESC, the Duster has unlimited vertical power on 6S 3000-4000mah lipo batteries and 16x7 prop. NOTE: The Duster is designed for low-pitch props, 7" pitch and lower.

The Duster makes a great rugged and friendly sport model, it can fly a variety of conventional and 3D aerobatic maneuvers, and it loves making low passes like its full-scale crop duster relatives. A carbon wing tube, carbon landing gear, lightweight and strong airframe, easy handling, quick assembly, easy-access hatch, and a complete high-quality hardware set add up to a fun and rewarding model aircraft you will be proud to own.

If you want a truly flexible airplane, order the optional composite color-matched float set. Custom-designed for the Duster, our floats are light, strong, include a complete double water-rudder setup, and you change the model back-and-forth from land to water in under 5 minutes with just one hex driver. NOTE: The float set requires one additional mini servo to operate the water rudder.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

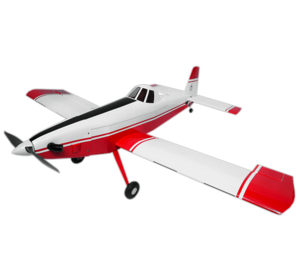

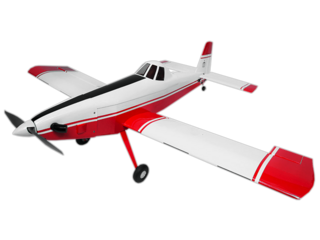

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Turbo Duster 65 in particular but at least we know they do distribute Legacy Aviation.

Wingspan: 1651mm (65 in)
Length: 1397mm (55 in)

Weight: 2268 g (5 lbs)
  • Wingspan: 1651 mm (65")
  • Length: 1397mm (55")
  • Wing Area: 48.19 dm² (747 Sq. Inches)
  • Weight: 2268 g (5 lbs.) without battery
  • Motor: Torque 4016T/500 MKII
  • ESC: AirBoss 80
  • Prop: 16 x 7
  • Battery: 3000-4000 mAh
  • Spinner: 52mm (2 inch)
