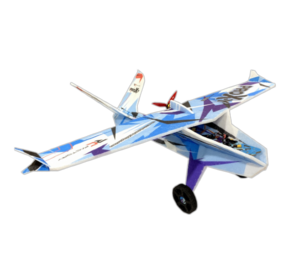

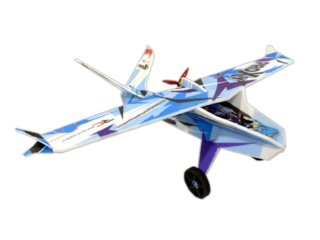

TH 44 EPP FPV ProXy from Twisted Hobbys

Details

This radical FPV-focused airplane which is designed to merge everything we love about flying 3D foamies, FPV quad copters, and Twisted Hobbys creativity, enabling new flying styles and possibilities.  Fly inverted through a race gate, hit a gap between trees knife edge, or just effortlessly cruise over the tree tops exploring.  Careful attention has been paid to the entire aerodynamic design to eliminate the keep the ProXy incredibly stable and eliminate the wagging normally associated with flying wings and heavier platforms. Lots of side area and full rudder control means you can fly continuous knife edge or even make totally flat turns like a race car.  Not lined up with that gap?  Just a breath of rudder will have you headed in the right direction.

The ProXy has a much lower flying speed than other FPV airplanes, meaning it is right at home in the tree-filled park or parking lot normally reserved for just quads, and with its single rear-mounted propeller it is far safer than other fixed wing platforms, harmlessly bouncing off of obstacles, usually with no damage.  Oversized foam wheels not only enable touch and goes and controlled landings, but also eliminate the most troublesome and frustrating part of fixed wing FPV flying: hand launching.  Just put on your goggles, goose the throttle, give a touch of up elevator, and the ProXy will cleanly rise off of pavement, grass, a dirt road, or any reasonable surface.



Flying on the Elan 2205-2600 motor and a cheap 3S 450-1000 mAh battery (we like 850's), the ProXy is affordable to get in the air and burn pack after pack with.  It's also remarkably flexible for set-up and flies great with nothing but a simple receiver, a stabilizing receiver, or go all-out with a flight controller and iNav or Betaflight.  For a camera set-up, the ProXy delivers a great experience with a simple all-in-one unit, or a more sophisticated HD recording camera like a RunCam Split or Caddx Tarsier with a seperate video transmitter

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the TH 44 EPP FPV ProXy in particular but at least we know they do distribute Twisted Hobbys.

Wingspan: 1117mm (44 in)
Length: 940mm (37 in)

Weight: 250 g (8.8 oz)
  • Wing Span: 1117mm (44")
  • Length: 940mm (37")
  • AUW: 250g w/o FPV

Recommended equipments

  • 5-11g micro servos
  • 10-20A ESC
  • micro receiver
  • 18-30g 2200-2600KV brush-less motor (flange base)
  • 3s 450-1000mah Lipo
  • 5046 Prop
  • Option FPV Transmitter / Camera gear
