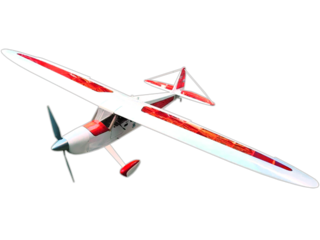

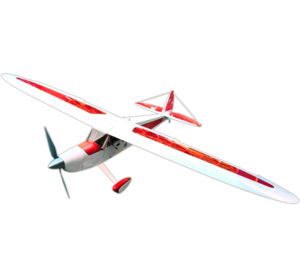

Rascal 110 EG from SIG Mfg

Details

The Rascal 110 EG ARF is a giant size sport model that provides outstanding flying characteristics using a wide range of power systems. Whether you prefer glow engines, gas engines, or electric power, the Rascal's classic good looks and dream-come-true flying characteristics will quickly make it your favorite R/C airplane. "Smooth", "Solid", "Comfortable", "Gentle as a Cub and aerobatic", "a Cub on steroids", are some of the words Rascal pilots use to describe flying a "110".

Streamlining and a high performance airfoil allow the Rascal 110 to do aerobatics that are impossible for most high wing airplanes. Breeze through inside and outside loops, slow rolls, point rolls, inverted flight, cuban 8s, and even knife edge flight.

The light wing loading of the Rascal 110 also makes it a versatile workhorse.

Float flying, banner or glider tow, onboard photography and video (several universities and the military are using them), parachute drop, night flying with add-on lights, and just about any other load carrying task is easy for the giant Rascal 110.

Features:

  • Quick And Easy Assembly
  • Factory Jig Built All-Wood Airframe
  • Factory Painted Fiberglass Cowling & Wheel Pants
  • Factory Painted Spring Aluminum Landing Gear
  • CNC Laser Cut For Perfect Parts Fit
  • Covered With Premium UltraCote® (aka ORACOVER®)
  • Factory Painted Airfoil Shaped Wing Struts
  • Complete Leaf-Spring Tailwheel Assembly
  • Illustrated Step-By-Step Assembly Manual

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2794mm (110 in)
Length: 1924mm (75.7 in)

Weight: 5897 g (13 lbs)
Wingspan: 110 in. 2794 mm
Wing Area: 1522 sq. in. 98.2 dm²
Length: 75.75 in. 1924 mm
Flying Weight: 11 -13 lbs. 4990 - 5897 g
Wing Loading: 17 - 20 oz./sq.ft. 51-60 g/dm²
Glow Power: 2-Stroke 1.2 - 1.5 cu. in.
4-Stroke 1.2 - 1.8 cu. in.
20 - 25 cc
20 - 30 cc
Gas Power: 1.2 - 1.8 cu.in. 20 - 30 cc
Electric Power: 1600 - 2600 watt (200 - 270 kv) Brushless Motor;
80-120A ESC; 8S-10S Lipo Battery Pack
Radio Required (for Glow or Gas): 5-Channel with 7 Heavy-Duty Servos
Ailerons(2), Elevator(1), Rudder(1), Throttle(1), Flaps(2)
Radio Required (for Electric): 5-Channel with 6 Heavy-Duty Servos
Ailerons(2), Elevator(1), Rudder(1), Flaps(2)

Other Variant(s)
