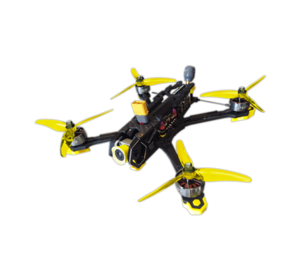

Master 5 from Speedy Bee

Details

Master 5 series is designed for freestyle.
Innovative anti-shock fixed stack structure mitigates effect from of motor for Gyro of FC, further stabilizing the running environment. And the arms quick release structure brings convenience for installation, with number of screws averaging 1.5 per arm.
Honeycomb-shaped aluminum alloy CNC drone head ensuring better strength and look. Designed with H-FOV 130 section, it provides a larger field of view. Furthermore, detachable camera fixing plate is open for modifying, supporting more mounting holes for camera and helping get rid of vignetting.
Honeycomb-shaped aluminum alloy cooling module (optional) is also designed for mounting under the VTX, improving the operation stability of DJI FPV and high-power analog VTX.

The Master 5 is designed for freestyle mainly.
With a low center of gravity compact model design, frame have features of lightweight and high maneuverability. Supporting both analog and digital VTX, frame may have parts of propellers in FPV view.

Features:

  • Honeycomb-shaped CNC aluminum alloy camera part
  • Detachable camera side plate
  • Free switching
  • Innovative Independent anti-Shock Stack Fixed Structure
  • High-power VTX cooling module
  • Universal GOPRO installation bracket (optional)
  • Antenna installation mount combination
  • Front XT60 Plug
  • Bottom carbon plate silicone rubber protection
  • Arm quick-release structure
  • arm foor mounts

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Master 5 in particular but at least we know they do distribute Speedy Bee.

Where to buy


Wingspan: 222mm (8.7 in)
Length: 222mm (8.7 in)

Weight: 130 g (4.6 oz)
  • Wheelbase: 222 mm
  • Weight: 130g (3D TPU parts are not included)
  • Top and bottom plate thickness: 2.5 mm
  • Middle plate thickness: 2 mm
  • Arm thickness: 5mm
  • Camera witdh: support 19-20mm  width
  • anti-shock stack hardness: yellow HB50 TPU, white HB30 TPU
  • Motor mounting hole spacing: 8mm
  • Suitable propeller size: 5-5.1 inch
  • Motor mouning hole spacing: 16x16 mm
  • FC mounting holes: 30.5x30.5 M3 and 20x20 M3
  • VTX mounting hole: 20x20mm M2
  • Camera mount material: 7075 Aluminum alloy
  • Aluminum post material: 7075 Aluminum alloy M3x23mm
  • Internal Installation height: 23x30 mm
  • Standard GPS basze size: 18x18x6mm

Variants

master5
Master 5 (Black Yellow)
