DollyFly16 HD O4 Pro from Sub250

Details

he Sub250 DollyFly16 Whoop is a compact, high-performance FPV drone, weighing just 87g, and is perfect for capturing cinematic footage in indoor settings.

The drone is equipped with the DJI O4 Air Unit Pro HD digital video transmission system, which includes a vibration-damped camera mount to ensure your footage is always smooth and stable. Its powerful TAKER F411 12A AIO Flight Controller and 1103 14000KV motors provide the agility needed for a wide range of impressive maneuvers.

For added safety and durability, the DollyFly16 features a camera protection housing that protects against crashes and a ducted frame that enhances thrust while protecting people from the spinning propellers.

Expertly tuned for a fluid and responsive flight experience, the DollyFly16 is an ideal choice for capturing small scenes on the go.

Features:

  • Compact 1.6-inch Whoop FPV drone with a DJI O4 Air Unit Pro HD VTX, supporting video resolutions up to 4K at 120fps.
  • Vibration-damped camera cap minimizes frame shake for ultra-smooth footage while also protecting the lens during flight.
  • High-performance 1103 14000KV motors provide powerful thrust, enabling agile, sharp, and highly responsive flight.
  • Durable injection-molded protective frame ensures a sturdy, stable structure with a sleek, well-engineered design.
  • Upgraded battery system with a convenient snap-on mechanism replacing traditional tie-downs for faster, more secure installation.
  • Custom-fit mounting for the DJI O4 Air Unit Pro VTX module ensures seamless integration and reliable performance.

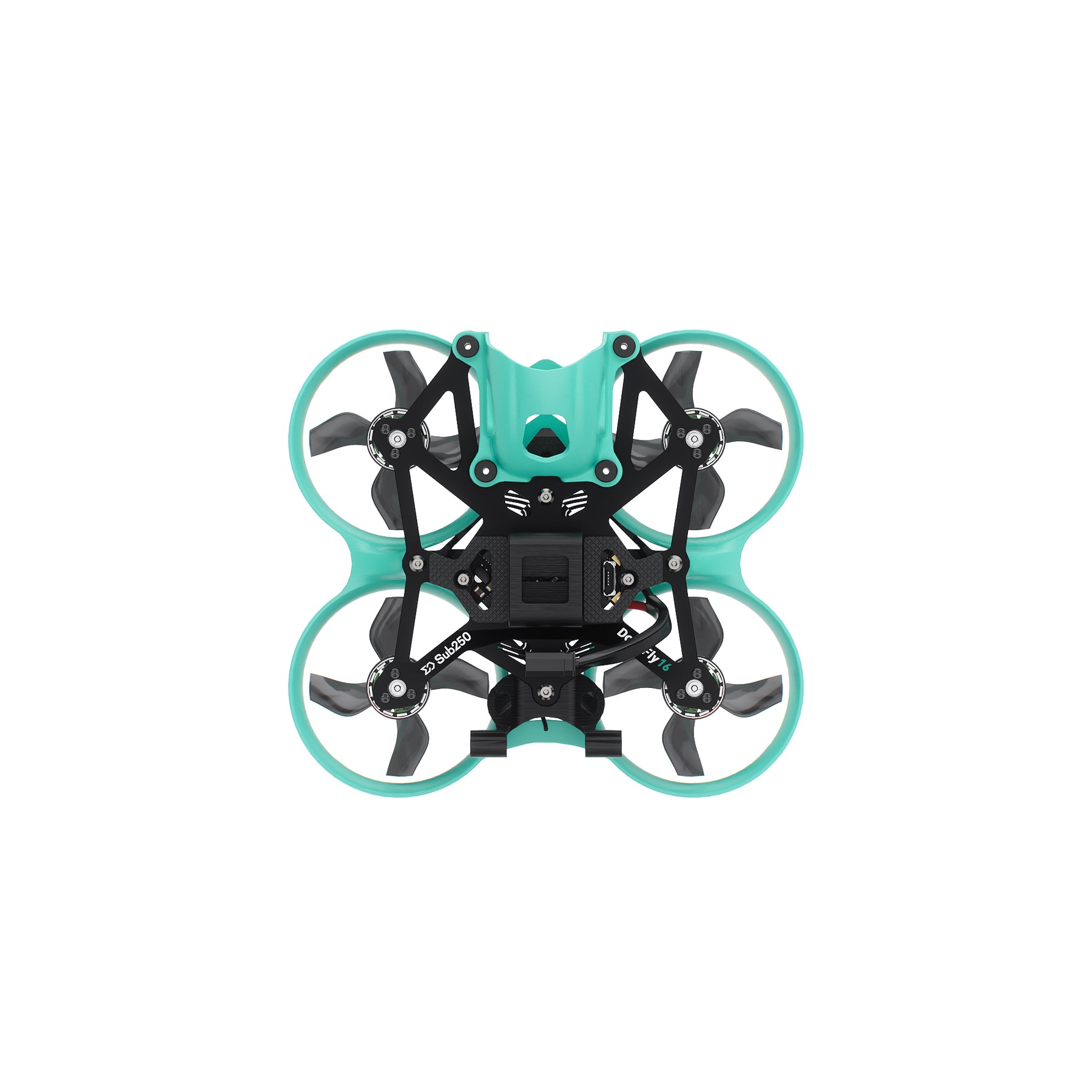

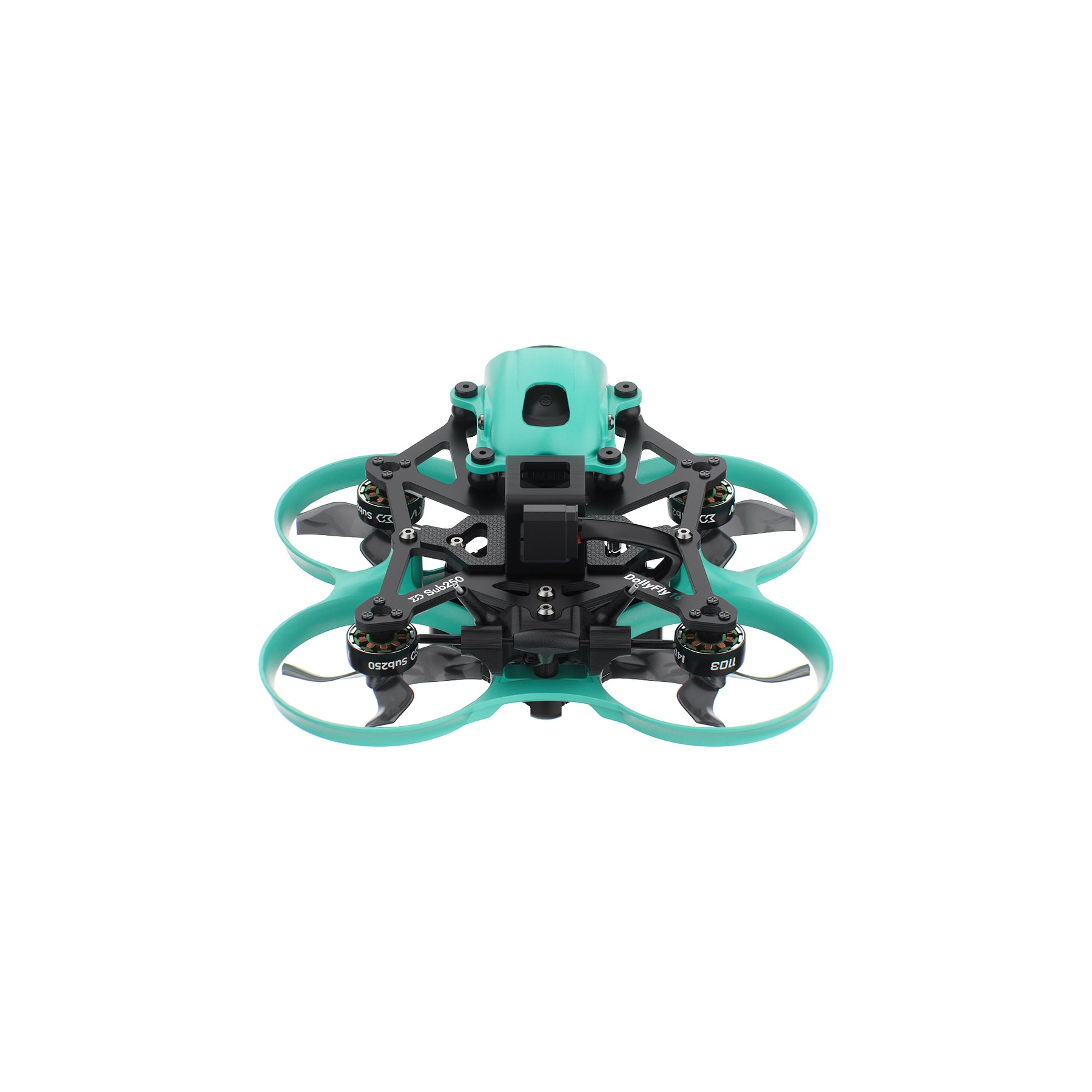

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the DollyFly16 HD O4 Pro in particular but at least we know they do distribute Sub250.

Wingspan: 85mm (3.3 in)
Length: 85mm (3.3 in)

Weight: 88 g (3.1 oz)
  • Model: Sub250 DollyFly16  O4 Pro /Sub250 DollyFly16 WTFPV
  • Wheelbase: 85mm
  • Carbon Plate Thickness: 2mm
  • Arm Thickness: 2mm
  • FC System: TAKER F411 12A  AIO
  • ESC: Bluejay 12A
  • MCU: STM32F411
  • Gyro: ICM42688-P
  • OSD: BetaFlight OSD w/ AT7456E chip
  • VTX: DJI O4 Air Unit Pro VTX Module (WTFPV version no VTX)
  • Camera: DJI O4 Air Unit Pro Camera Module WTFPV version no Camera)
  • Antenna: 5.8G copper antenna
  • Motor: Sub250 1103 14000KV
  • Propeller: Gemfan 1636-4
  • Power Connector: XT30U-M
  • Weight: 88g ± 1g
  • Receiver:   ELRS2.4G/ PNP
  • Recommended battery: LiHV 2S 530mAh   (Not Including)
  • Flight time: about 4min (The flight time is determined by your flying method)
