FW 450L V2 from FLY WING

Details

The Fly Wing 450L V2 450 size GPS Stabilized Helicopter is unlike any RC helicopter you’ve flown before! This innovative aircraft combines the sport capabilities of a 450 size helicopter with the rock-solid stability of a GPS-stabilized flight control system. Similar to high-end drones, this system links with GPS satellites in orbit to maintain positional awareness at all times. Sold as an RTF ("Ready To Fly") package, this Fly Wing 450L V2 includes almost everything you need to fly except batteries. All radio programming is completed at the factory for you. The modular design makes it easy to repair and Motion RC carries a full range of spare parts at an affordable price.

Featuring a carbon fiber frame, dual brushless motors, wire-free quick-disconnect tail boom, a high precision flybarless flight controller, and Omni H1 GPS technology, and a long flight duration of 8-13 minutes on an economical 4s LiPo battery, the 450L V2 is the perfect helicopter for intermediate pilots looking for a casual trainer that can also push the envelope toward sportier flying.

Features:

  • User friendly GPS-assisted flight modes including One-Touch Takeoff and Automatic Landing via included pre-programmed radio transmitter
  • RTF ("Ready To Fly") convenience with simple computer calibration and one minute physical assembly
  • Modular “quick-detach” metal tail boom requiring no tools or maintenance
  • Dual Brushless Direct Drive Motor design eliminates 90% of moving parts for less vibration, less setup, and longer lifespan

Pictures and Description from MotionRC

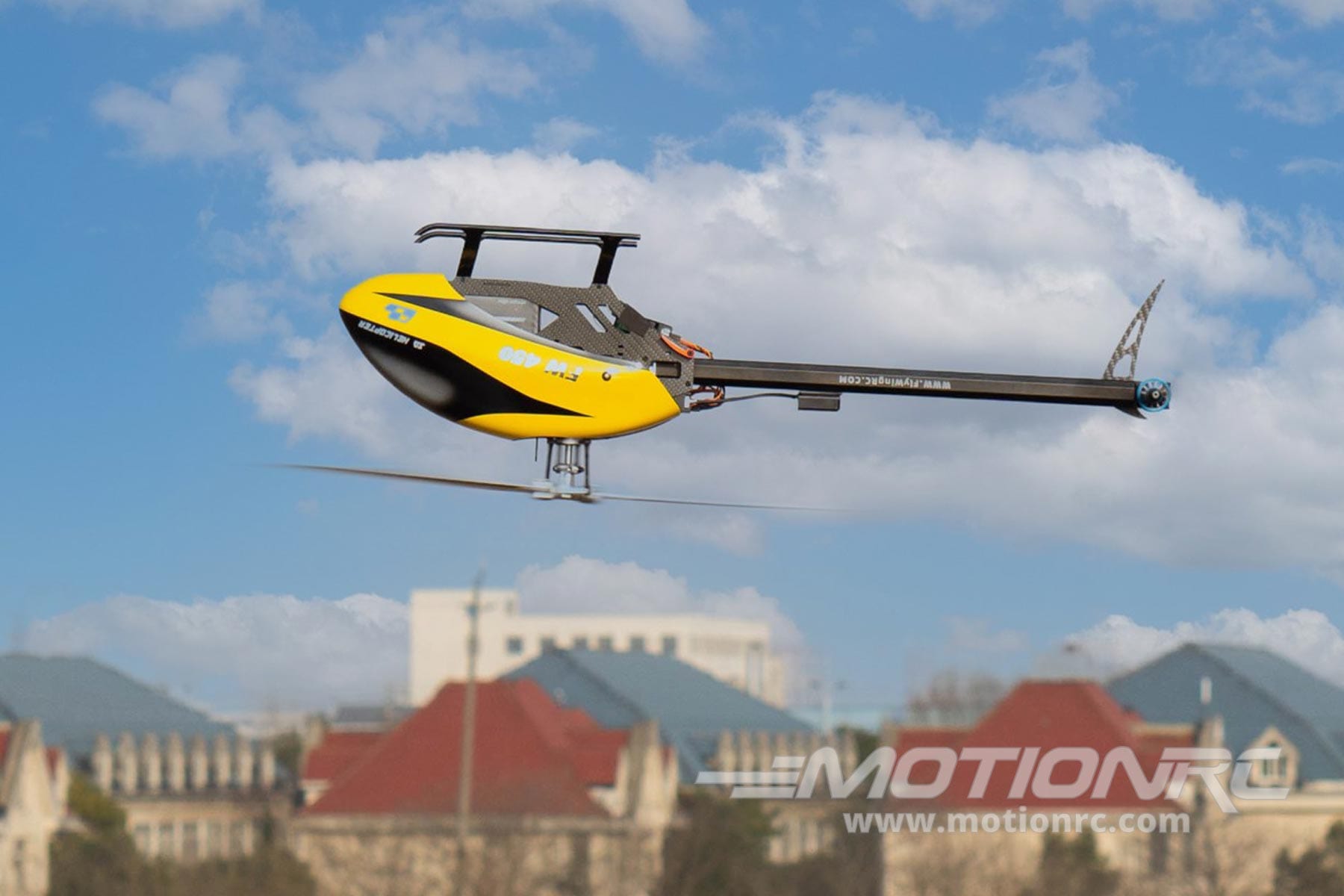

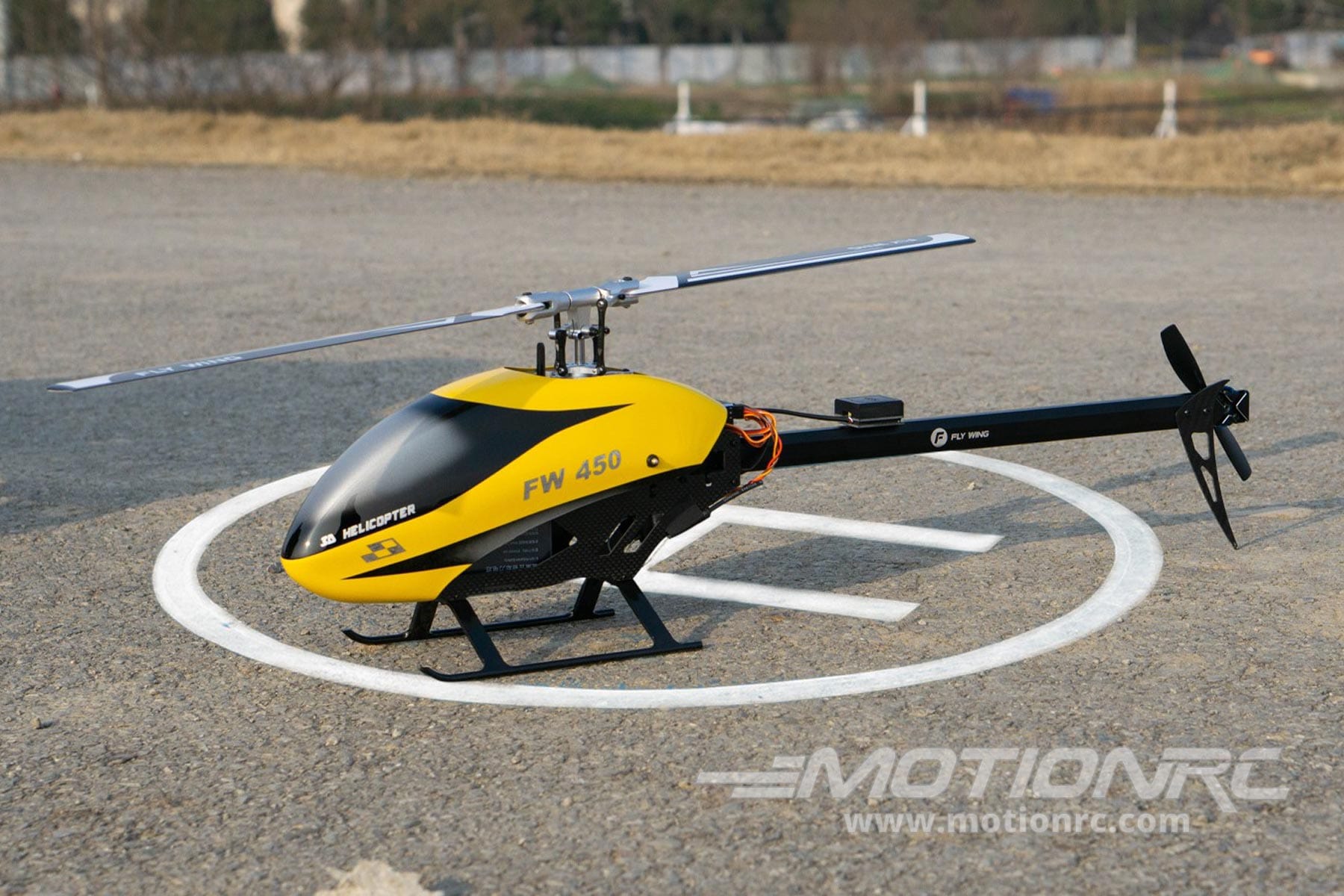

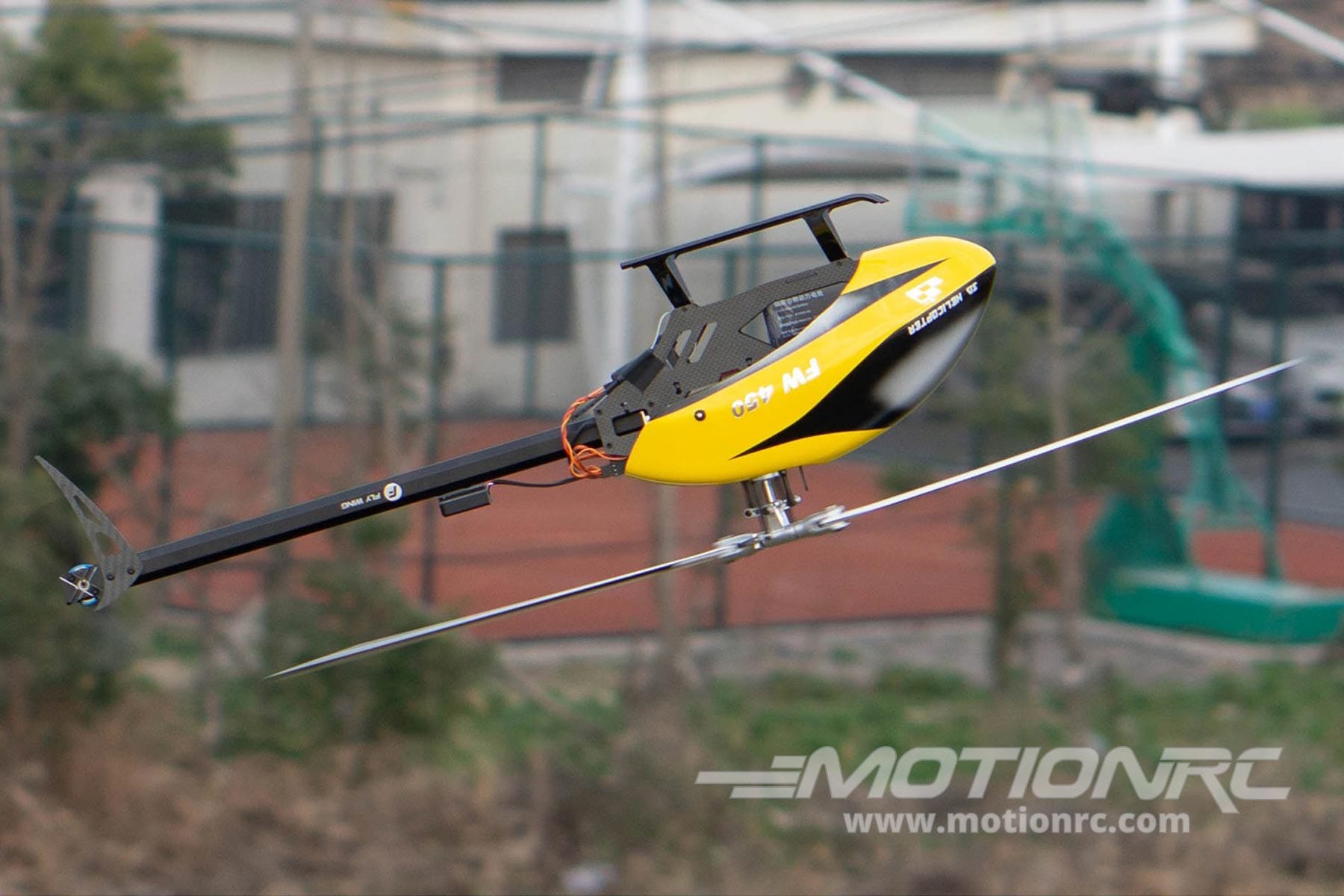

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the FW 450L V2 in particular but at least we know they do distribute FLY WING.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 810mm (31.9 in)
Length: 810mm (31.9 in)

Weight: 768 g (1.7 lbs)
Class / Size 450 Size
Power Type Electric
Rotor Type Collective Pitch
Body Material Plastic
Overall Size (L x W x H) 680mm (26.8") x 120mm (4.7") x 220mm (8.7")
Flying Weight 768g
Main Rotor Diameter 810mm / 31.9"
Main Rotor Blade Length 360mm / 14.2"
Tail Rotor Diameter 125mm / 4.9"
Tail Rotor Blade Length N/A
Tail Drive Type Brushless Motor
Cyclic Servos N/A
Tail Servo N/A
Power System 2816 Brushless Motor
Electronic Speed Control 60A
Recommended Battery Admiral 4s 2200mAh with XT60 connector
Battery Compartment Size (L x W x H) N/A
Required Radio 2.4GHz Radio (Included)
Skill Level Intermediate
Build Time 10 minutes
Recommended Environment Outdoors

Variants

FW450LV2
FW 450L V2 (Yellow)
